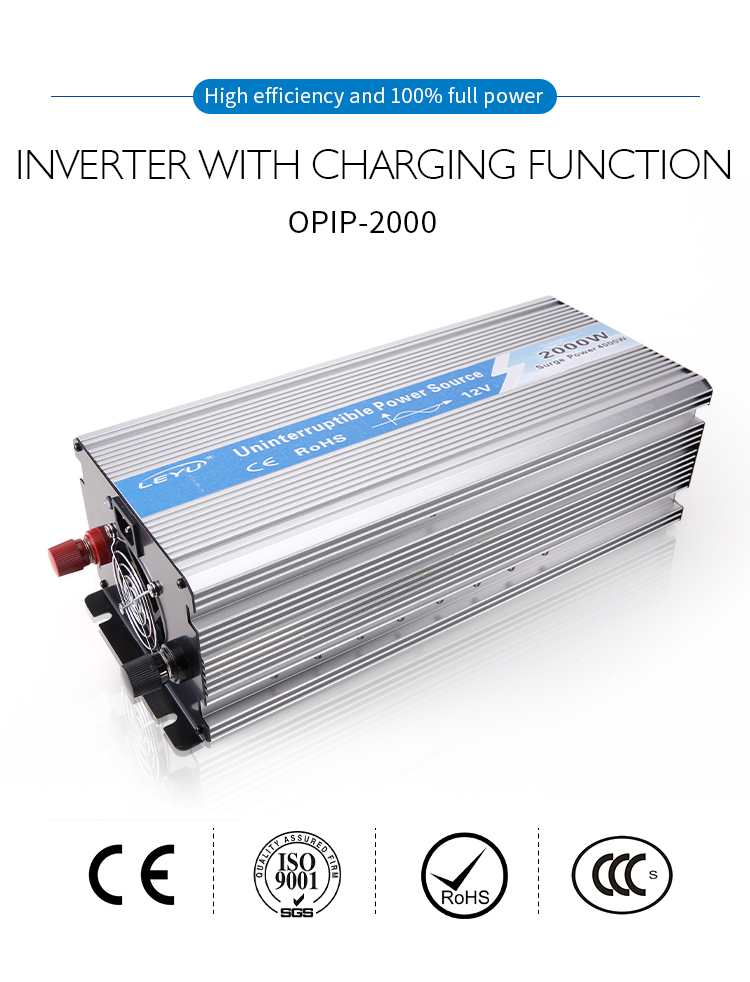

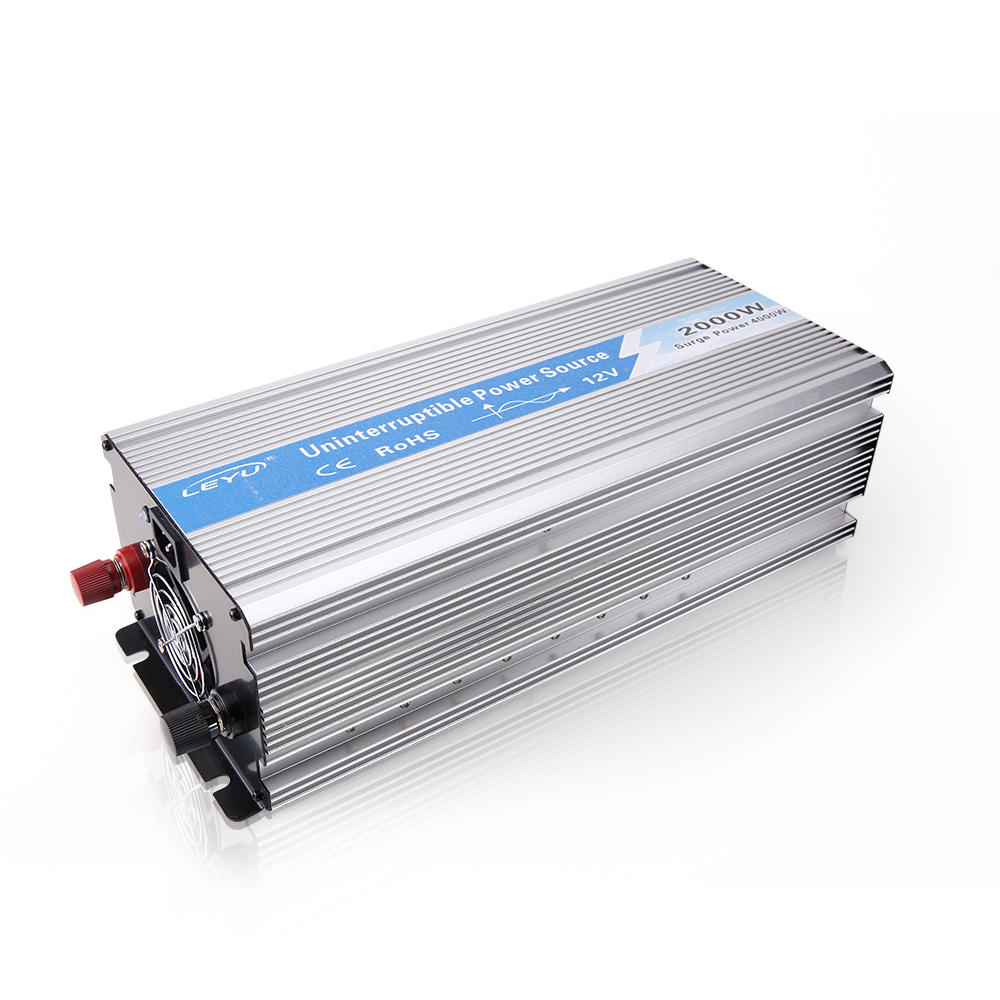

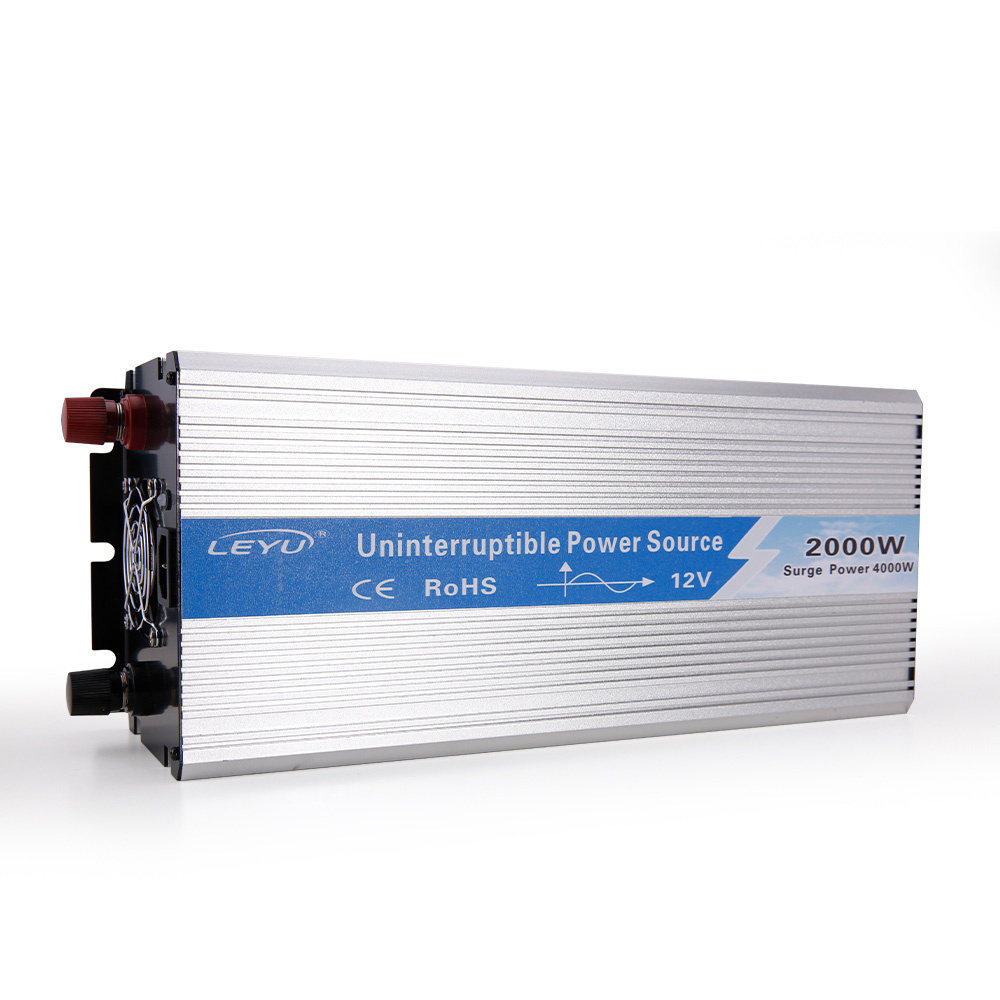

OPIP Inverter With Charger 2000W Technical Parameters
 Model OPIP-2000C-1 OPIP-2000C-1 OPIP-2000C-2 OPIP-2000C-2
 Rated power 2000W
 Peak power 4000W
 Input voltage DC12V DC24V DC12V DC24V
 Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
 Unload current less than 1.1A 0.7A 1.1A 0.7A
 Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
 Output waveform Pure Sine Wave
 Waveform distortion THD<3%(Linear load)
 USB port 5V 1A
 Max.efficiency 90%
 Input current 15A
 Input voltage range 10-15.5V 20-31V 10-15.5V 20-31V
 Low voltage alarm 10.5±0.5V 21±0.5V 10.5±0.5V 21±0.5V
 Low voltage protection 10±0.5V 20±0.5V 10±0.5V 20±0.5V
 Over voltage protection 15.5±0.5V 31±0.5V 15.5±0.5V 31±0.5V
 Low voltage recover 13±0.5V 24±0.5V 13±0.5V 24±0.5V
 Over voltage recover 14.8V±0.5V 29.5V±0.5V 14.8V±0.5V 29.5V±0.5V

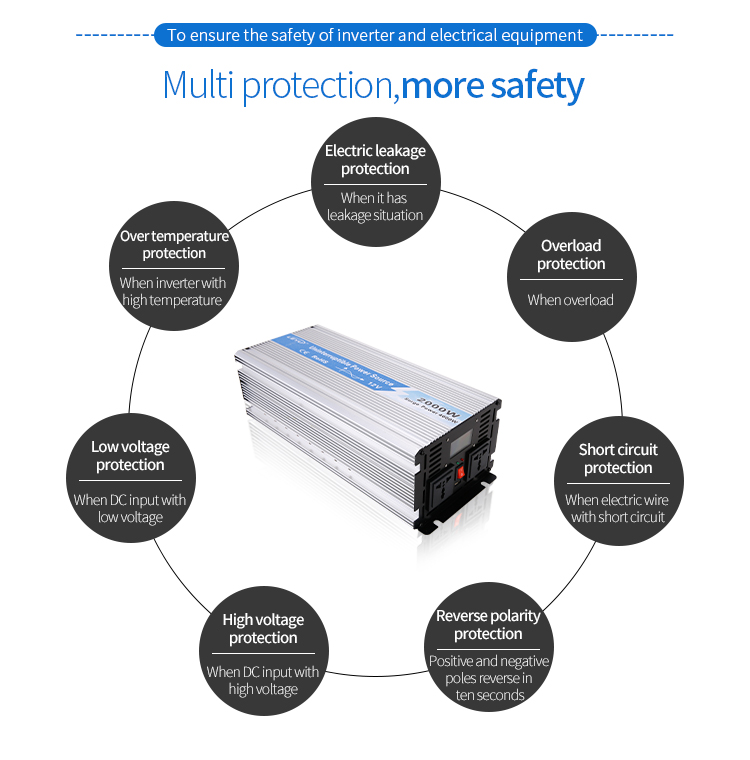

 Protection function Low voltage Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage LED Red light on, shut down
Over load LED Red light on, shut down
Over temperature Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit LED Red light on
Input reverse polarity Fuse burn-out
 Output Current 15A 10A 15A 10A
 Bulk charge 15A 10A 15A 10A
 Absorption 14.6VDC 28.8VDC 14.6VDC 28.8VDC
 Float Charging Voltage 13.8VDC 27.6VDC 13.8VDC 27.6VDC
 AC Input voltage range 190~260VAC 90-135VAC 190~260VAC 90-135VAC
 Working temperature -10°- +50°
 Storage temperature -30°- +70°
 Dimension(mm) 396x180x128mm
 Packing(mm) 400x245x200mm
 Net./gross weight(g) 5552/6857g
 QTY/Ctn 4 Pcs
 Meas./Ctn(mm) 500x400x415mm
 Gross weight/Ctn(g) 27410g
 Warranty 1 years
 Configuration Standard
 Cooling method Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
