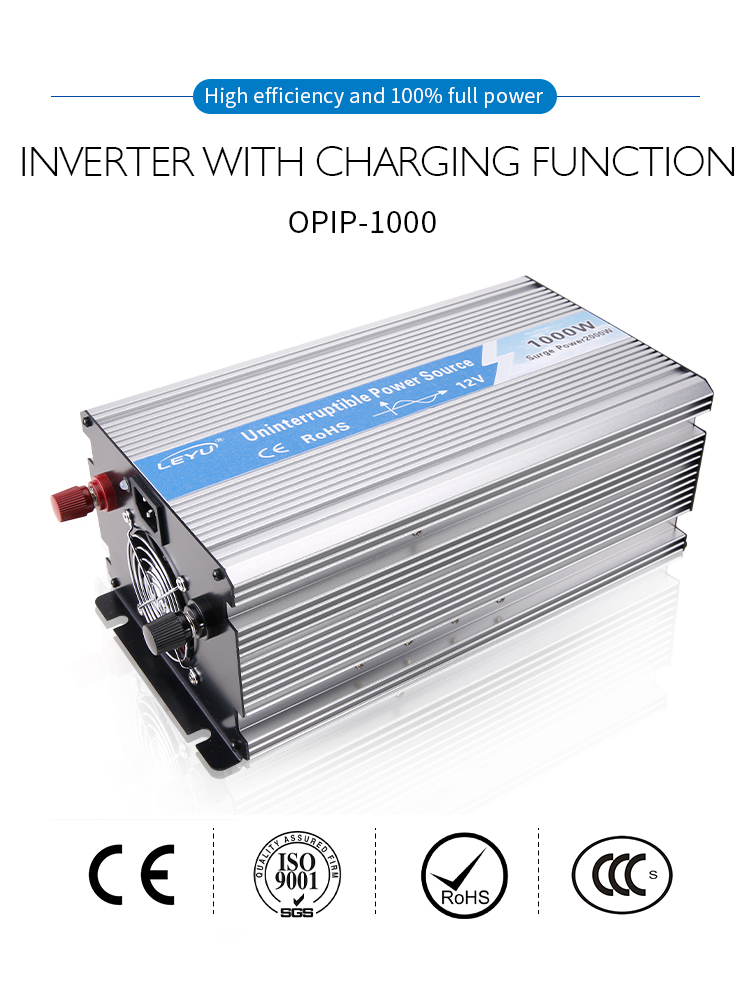

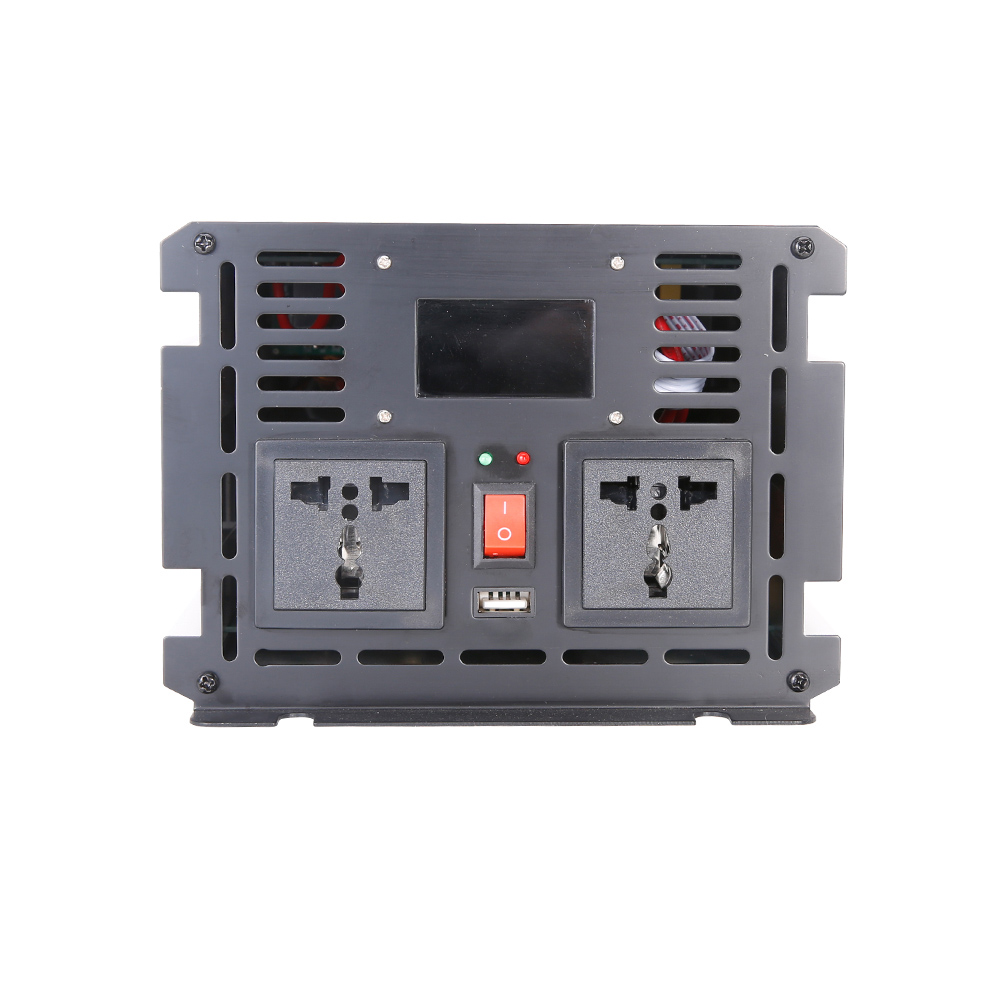

OPIP-1000C

Print this Page

Skype Online

E-mail Us

QQ

Facebook

wangwang

Wechat

Online Inquiry

No Previous

Model	OPIUP-1K-1	OPIUP-1K-1	OPIUP-1K-1	OPIUP-1K-2	OPIUP-1K-2	OPIUP-1K-2
Rated power	1000W
Peak power	2000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.8A	0.5A	0.2A	0.8A	0.5A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A

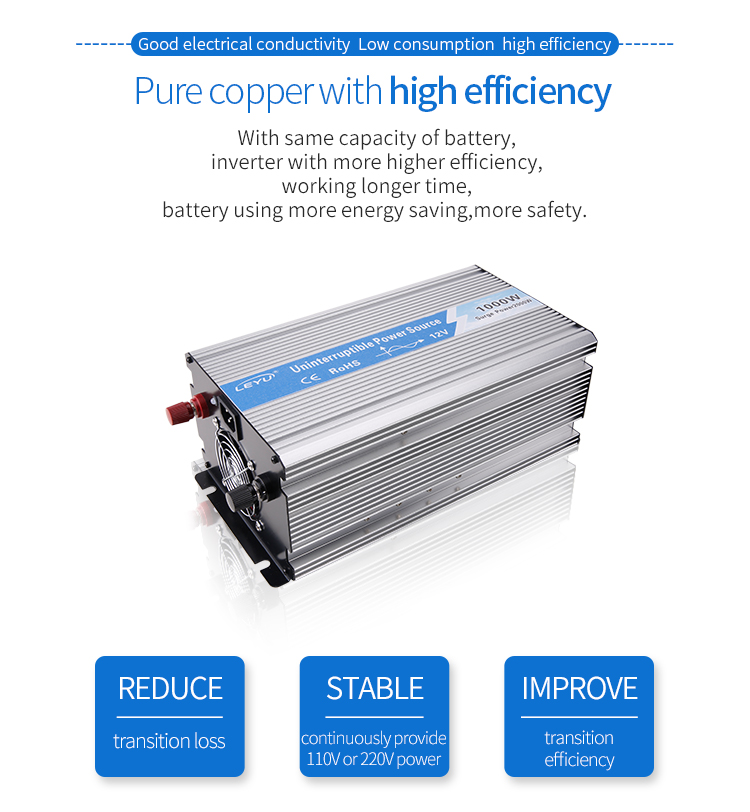

Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V

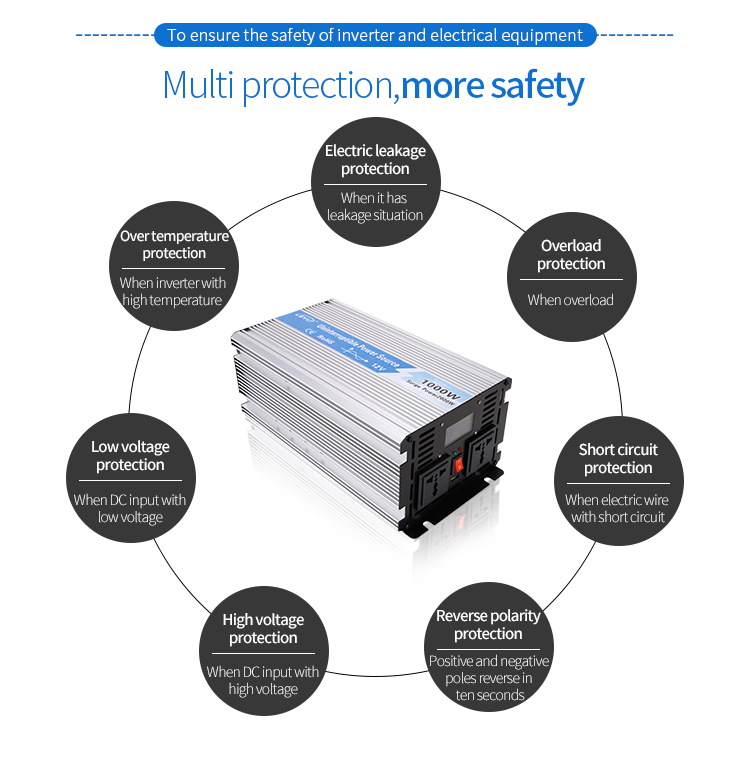

Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°

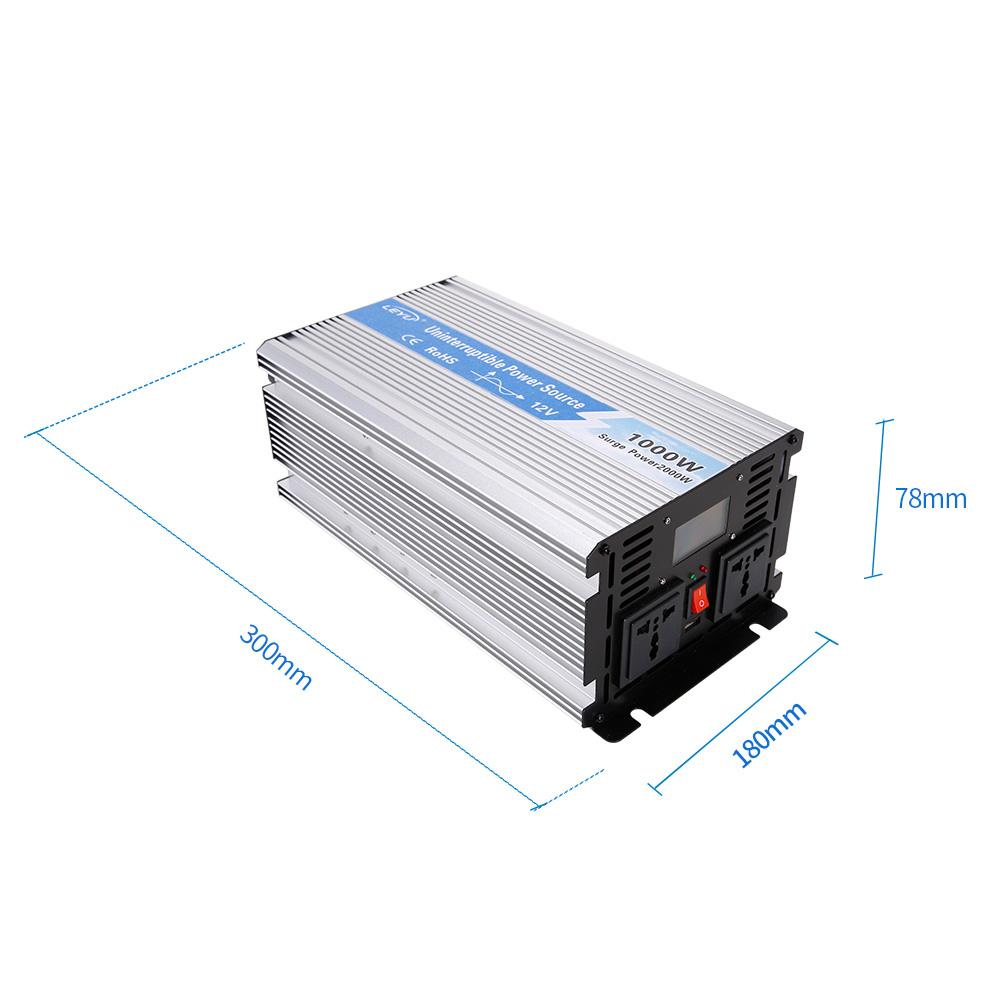

Dimension(mm)	280x170x120mm
Packing(mm)	410x220x170mm
Net./gross weight(g)	3600/4310g
QTY/Ctn	4 Pcs
Meas./Ctn(mm)	430x375x460mm
Gross weight/Ctn(g)	17900g
Warranty	18 months
Configuration	Standard
Cooling method	Intelligent air cooling
