Product Detail

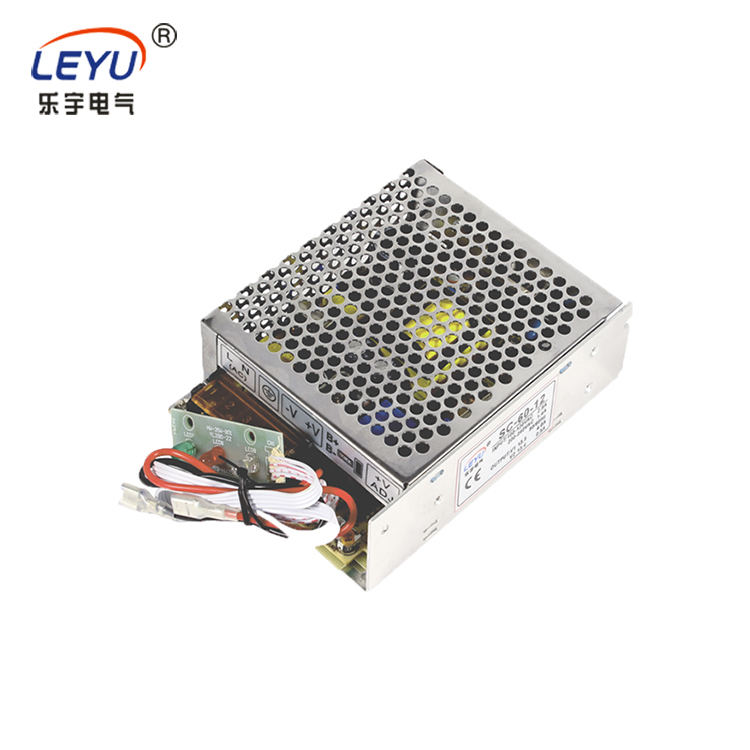

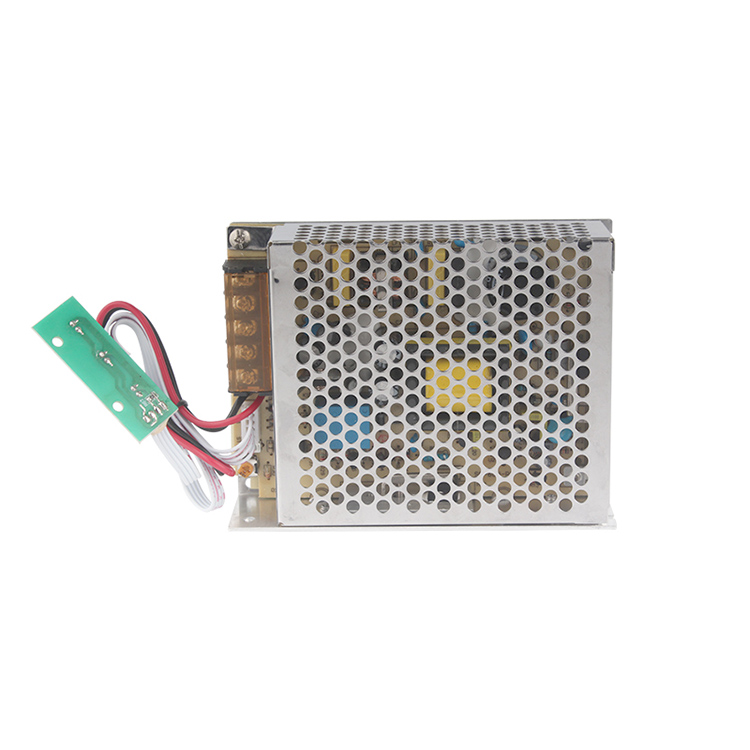

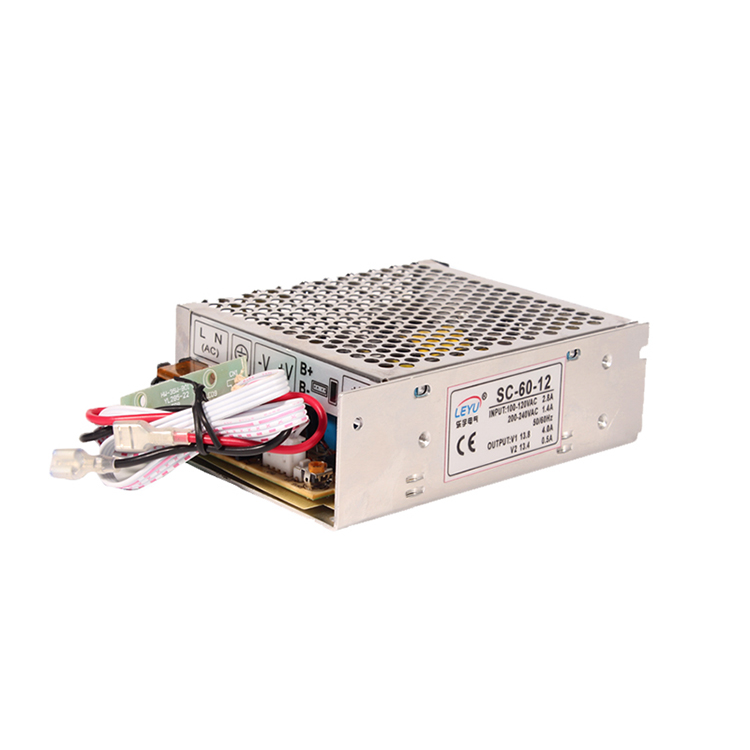

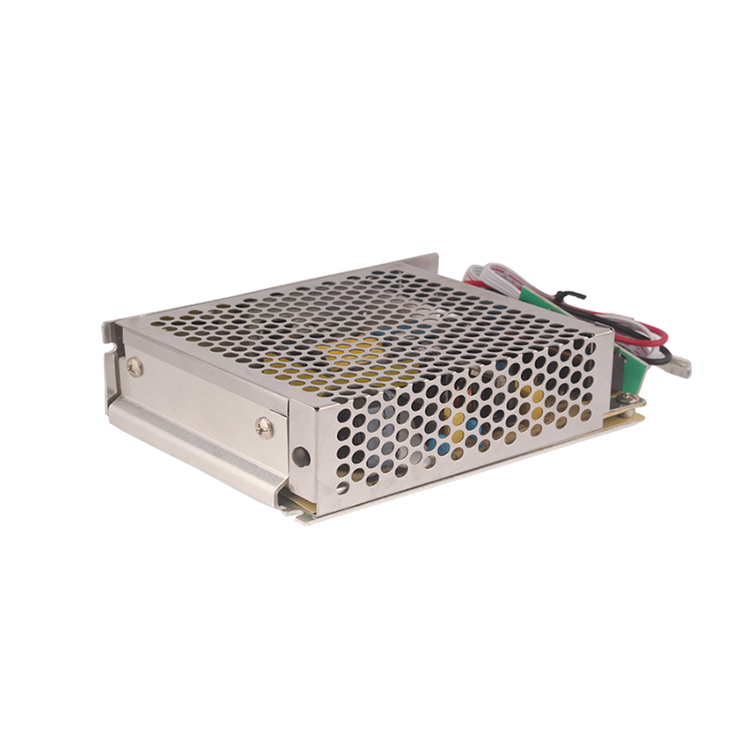

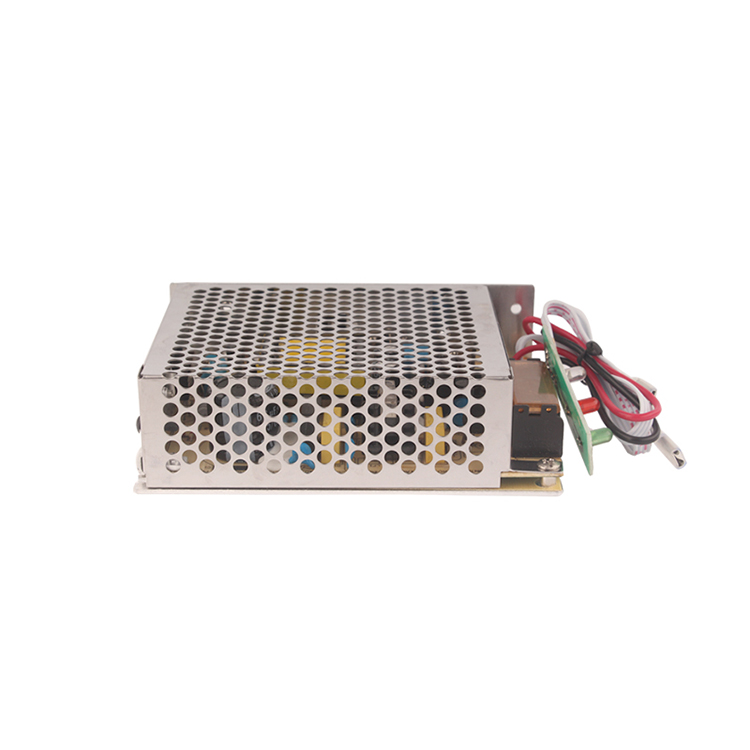

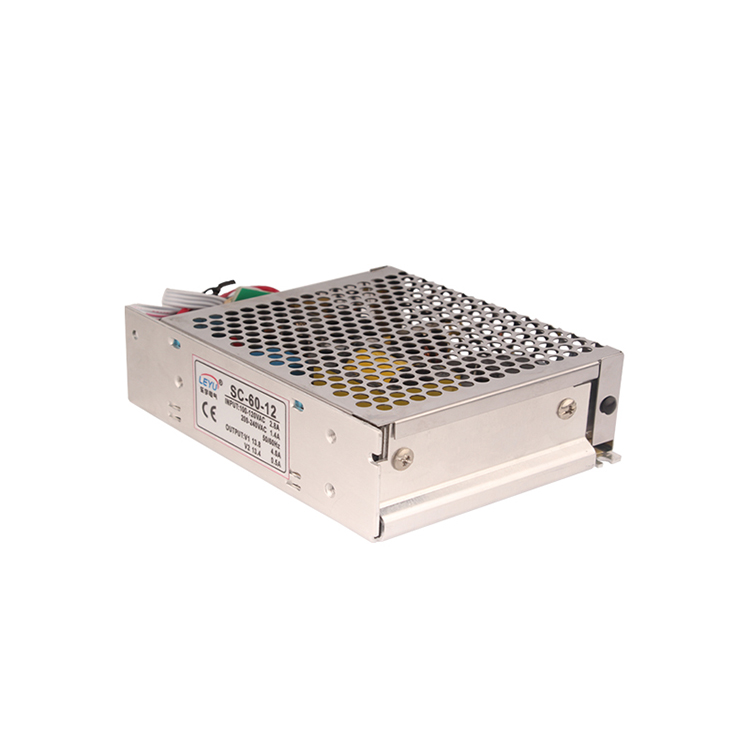

60W Single Output UPS function Power Supply SC-60 series
Features:
1. Universal AC input/Full rang
2. Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
3. Cooling by free air convection
4. LED indicator for power on
5. No load power consumption<1W
6. Suitable for installation in metallic or non-metallic system enclosure
7. 100% full load burn-in test
8. 2 years warranty
|
Model |
SC-60-12 |
SC-60-24 |
|||
|
OUTPUT |
DC voltage |
CH1:13.8V |
CH1:13.4V |
CH1:27.6V |
CH2:26.5V |
|
Voltage tolerance |
±1% |
----- |
±1% |
----- |
|
|
Rated current |
4.0A |
0.35A |
2.0A |
0.25A |
|
|
Current range |
0~4A |
----- |
0~2A |
----- |
|
|
Rated power |
59.9W |
61.8W |
|||
|
Ripple&noise |
100mvp-p |
----- |
100mvp-p |
----- |
|
|
DCvoltage ADJ.range |
CH1:11.3~14.9V |
CH1:21.3~29.8V |
|||
|
INPUT |
Voltage range |
90~264VAC,127~370VDC |
|||
|
frequency |
47~63HZ |
||||
|
AC current |
1.6A/115VAC,0.8A/230VAC |
||||
|
efficiency |
81% |
83% |
|||
|
Inrush current |
Cold start current 25A/115VAC,45A/230VAC |
||||
|
Leakage current |
< 1mA/240VAC |
||||
|
PROTECTION |
Over load |
Rated output power110%~150% start over load protection |
|||
|
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed |
|||||
|
Battery protection |
9.5~11V |
20~22V |
|||
|
At low voltage |
protection mode:cutoff output |
||||
|
FUNCTION |
UPS introduction |
long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, |
|||
|
cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs |
|||||
|
ENVITONMENT |
Working temp,humidity |
-10°C~+60°C,20%~90%RH |
|||
|
Storagetemp,humidity |
-20°C~+85°C,10%~95%RH non-condensing |
||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
||||
|
SAFETY |
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC |
||||
|
OTHERS |
Dimension |
129*98*38mm(L*W*H) |
|||
|
Weight/packing |
0.52kg |
||||
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25°Cof ambient temperature. |
||||
|
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
|||||
|
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
|||||
