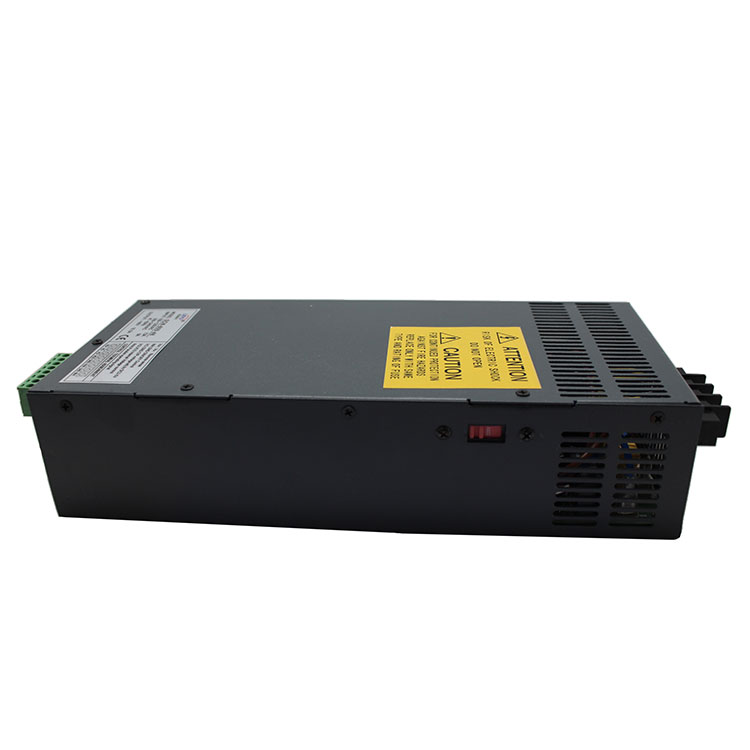

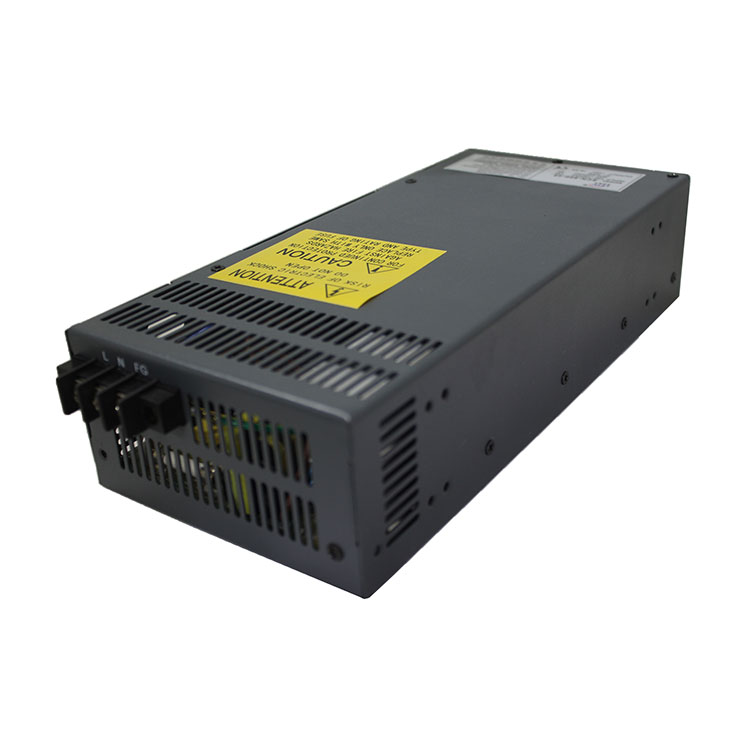

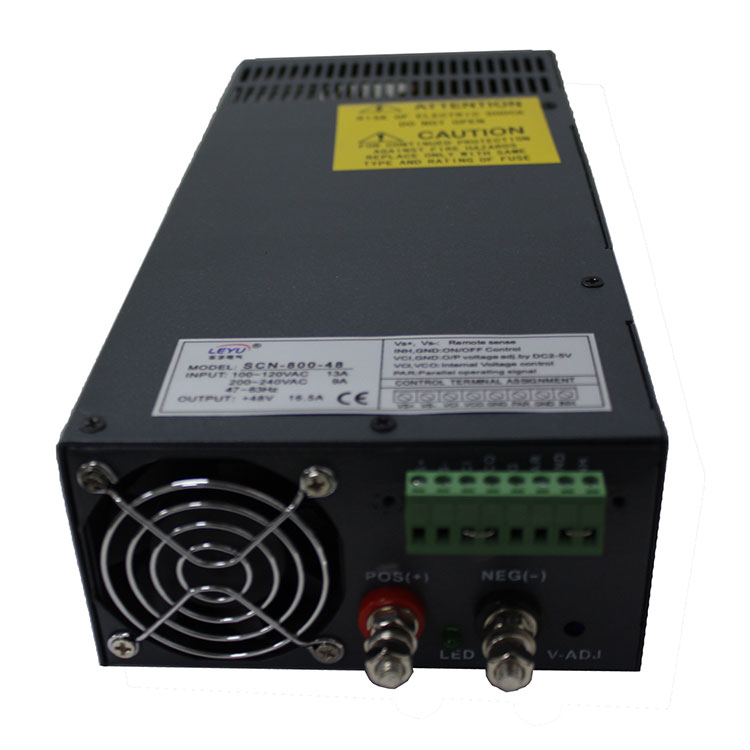

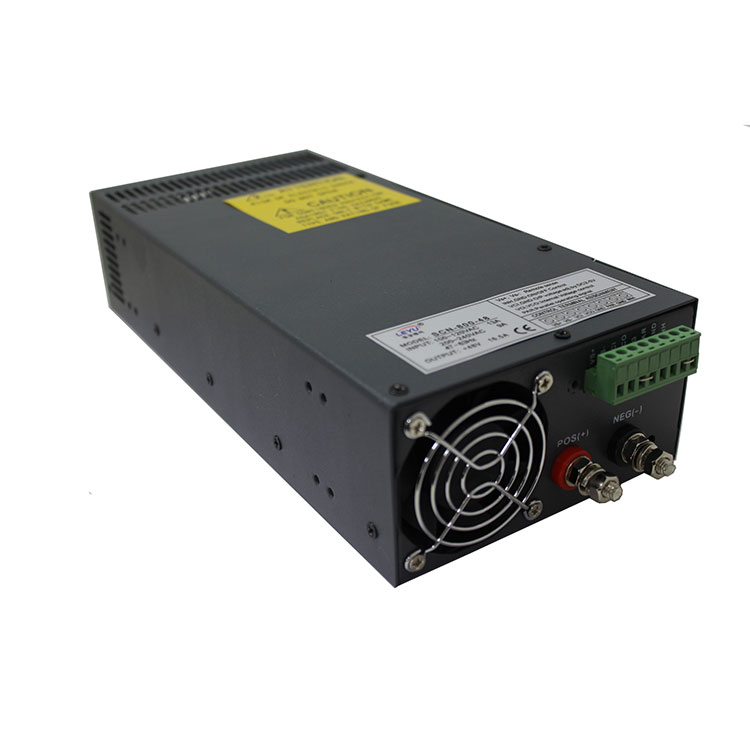

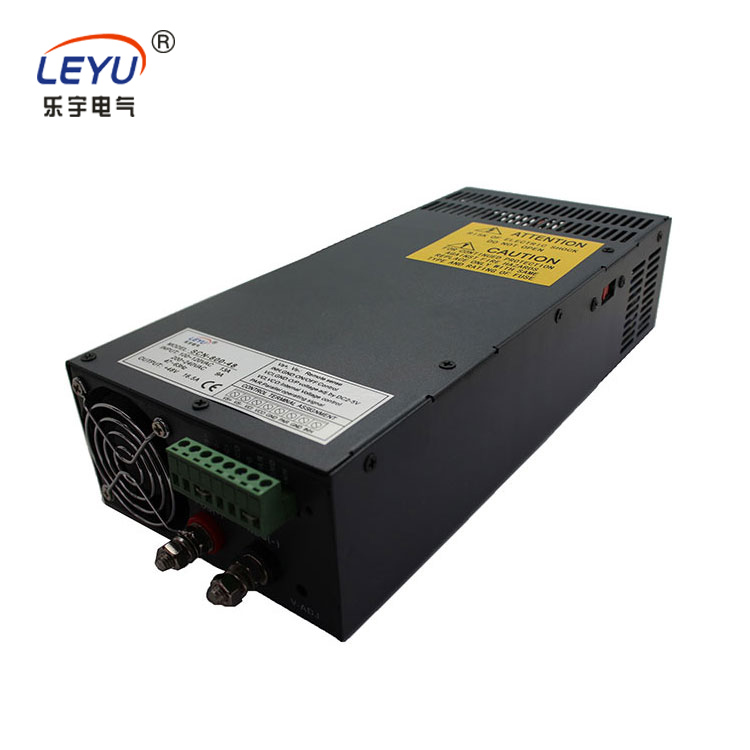

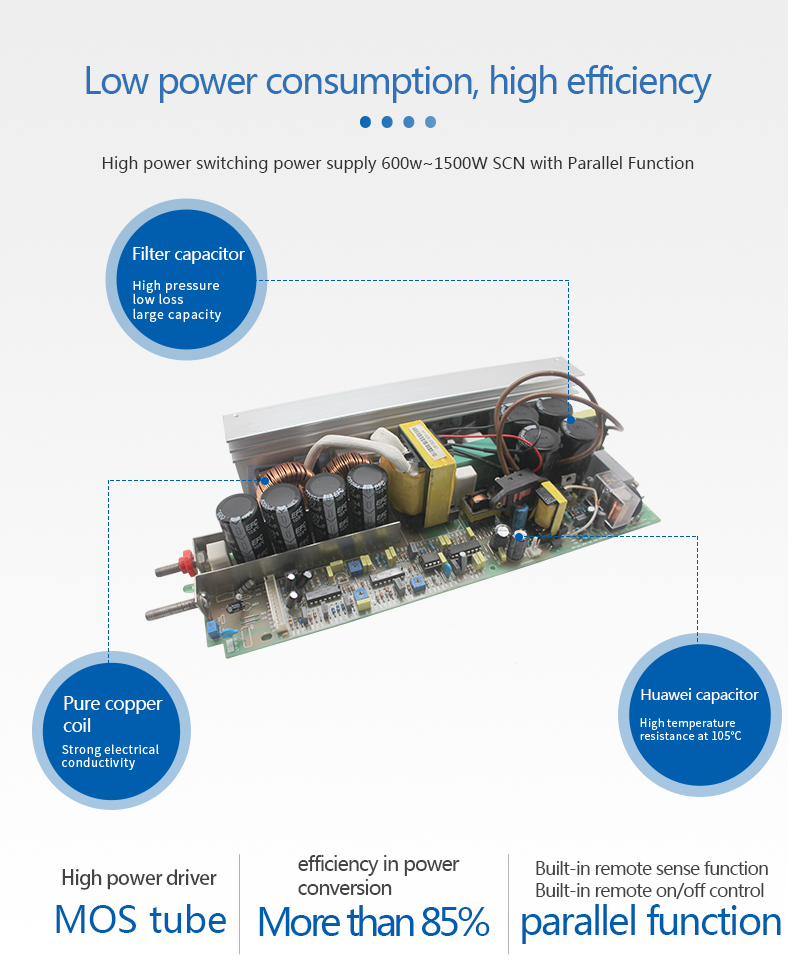

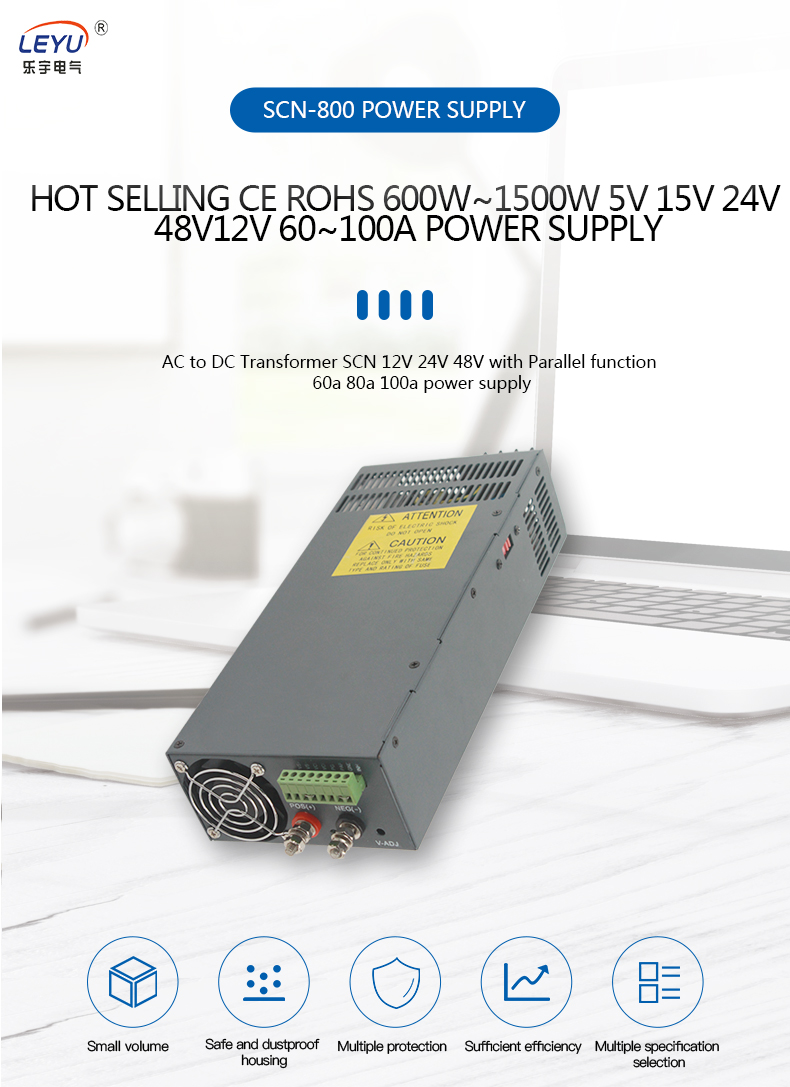

800W Single Output with Parallel Function SCN-800 series
Features:
High reliability, low ripple
AC input range selected by switch

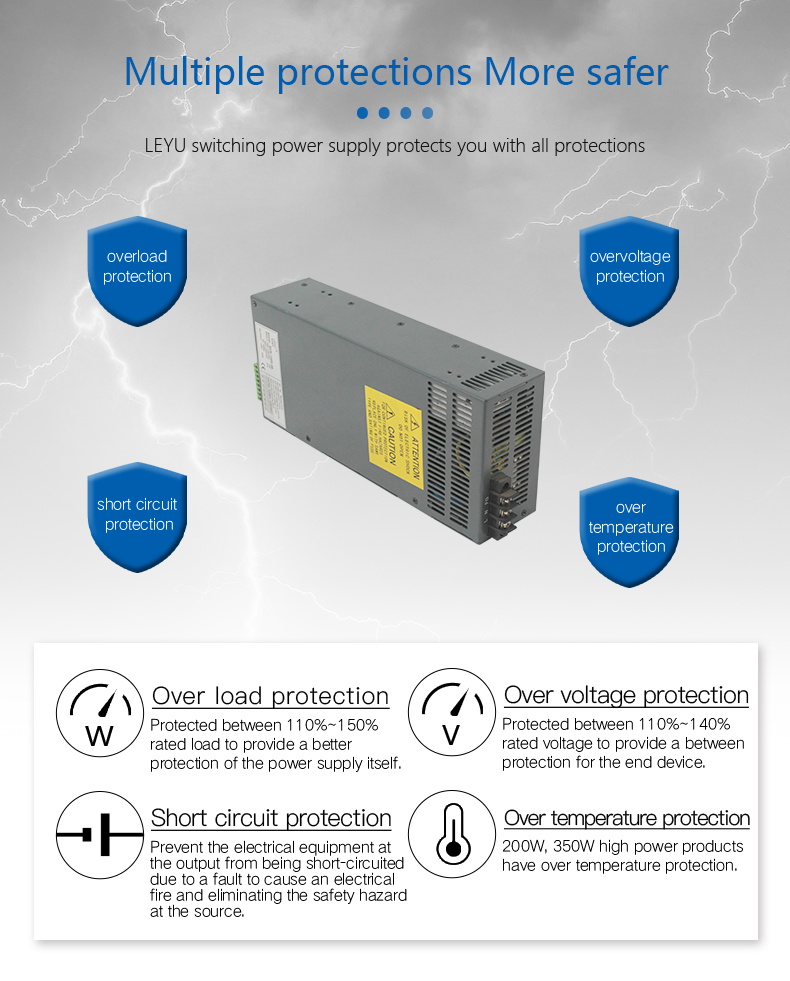

Protections: Short circuit/ Over load/ Over voltage/ Over temperature

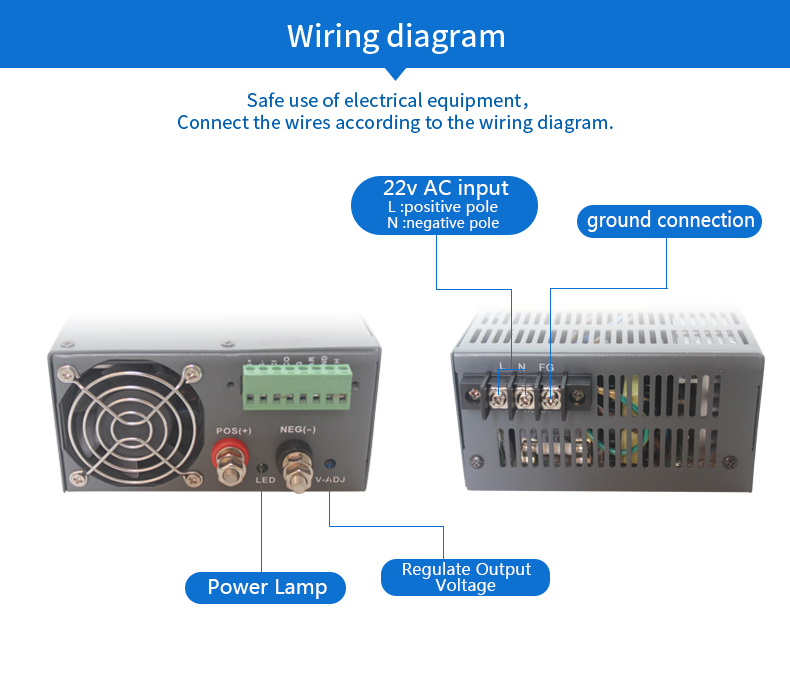

Built-in remote ON-OFF control and remote sense function
With parallel function
Can adjust from 20%~100% output voltage by external control 1-5V
Forced air cooling by built-in DC fan
2 years warranty
|
SPECIFICATIONS |
||||
|
OUTPUT |
|
|||
|
MODEL |
SCN-800-12 |
SCN-800-15 |
SCN-800-24 |
SCN-800-30 |
|
DC Voltage |
12V |
15V |
24V |
30V |
|
Rated Current |
66A |
54A |
33A |
26.7A |
|
Current Range |
0-66A |
0-54A |
0-33A |
0-26.7A |
|
Rated Power |
800W |
800W |
800W |
800W |
|
Ripple & Noise |
150mVp-p |
150mVp-p |
240mVp-p |
300mVp-p |
|
Voltage Adj. Range |
±5%; Can adjust from 40%~100% output voltage by external control 2-5V |
|||
|
Voltage Tolerance |
±1% |
±1% |
±1% |
±1% |
|
Setup,Rise,Hold Up Time |
800ms, 50ms, 16ms at full load |
|||
|
|
|
|||
|
INPUT |
|
|||
|
Voltage Range |
90~130VAC/180~260VACselected by switch47~63Hz; 260~370VDC |
|||
|
AC Current |
13A/115VAC8.0A/230VAC |
|||
|
Efficiency |
80% |
81% |
85% |
86% |
|
Inrush Current |
60A/230V |
|||
|
Leakage Current |
3.5mA/240VAC |
|||
|
|
|
|||
|
PROTECTION |
|
|||
|
Over Load |
110%~135% |
|||
|
Protection: Protection: Current limiting, delay shut down o/p voltage, re-power on to recover |
||||
|
Over Voltage |
110%~135% |
|||
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||
|
Over Temp |
TSW1 (Power transistor) When temp. >100℃, shut down o/p voltage, re-power on to recover |
|||
|
|
|
|||
|
ENVIRONMENT |
|
|||
|
Working Temp., Humidity |
-10℃~+65℃; 20%~90%RH |
|||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
|||
|
Vibration |
10~200Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|||
|
|
|
|||
|
SAFETY |
|
|||
|
Withstand Voltage |
I/P-O/P, I/P-FG:1500VAC |
|||
|
Isolation Resistance |
I/P-O/P, I/P-FG, >100M Ohms / 500VDC |
|||
|
|
|
|||
|
STANDARD |
|
|||
|
Safety Standard |
Design refer to UL1950,CSA22.2,IEC60950 |
|||
|
EMC Standard |
Design refer to FCC Part 15 Class A |
|||
|
|
|
|||
|
OTHERS |
|
|||
|

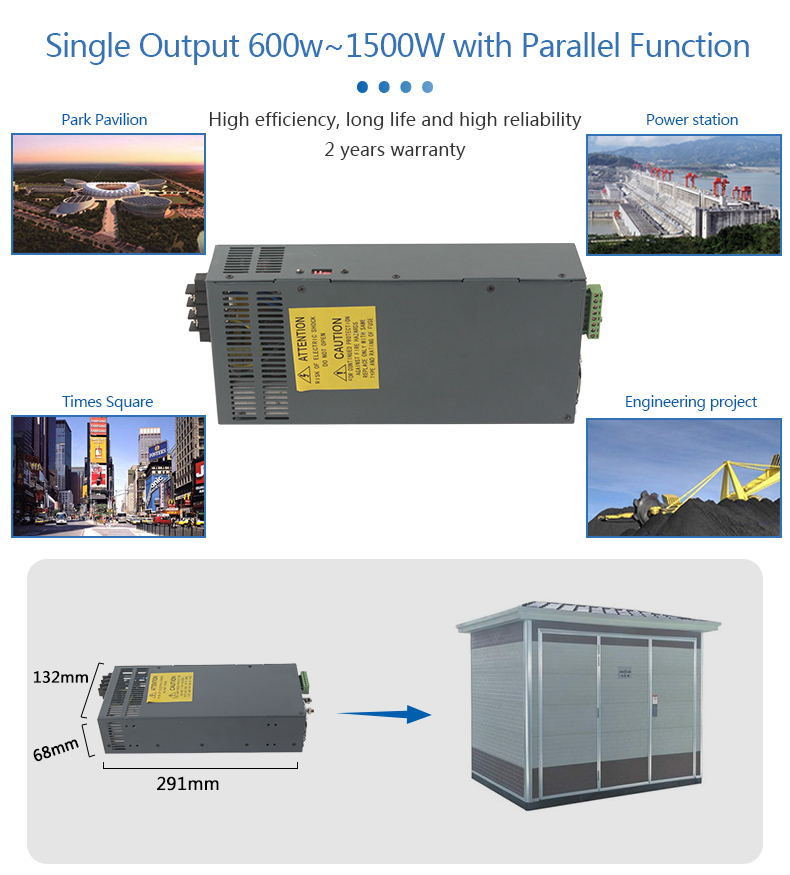

Dimension |
291*132*68mm(L*W*H) |
|||
|
Weight |
2.57Kg |
|||
|
Packing |
6pcs/15.42kg/CARTON |
|||
|
|
|
|||
|
NOTE |
|
|||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||
