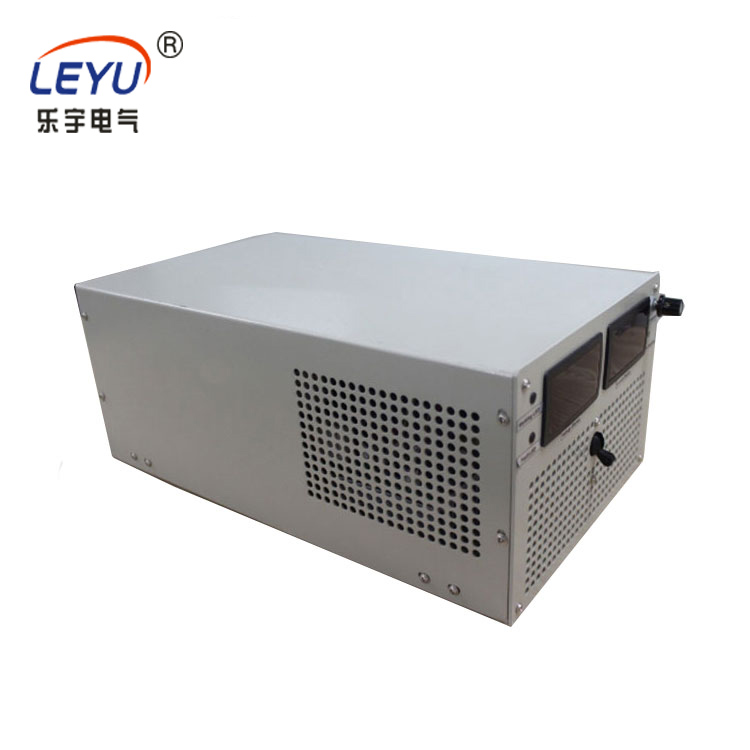

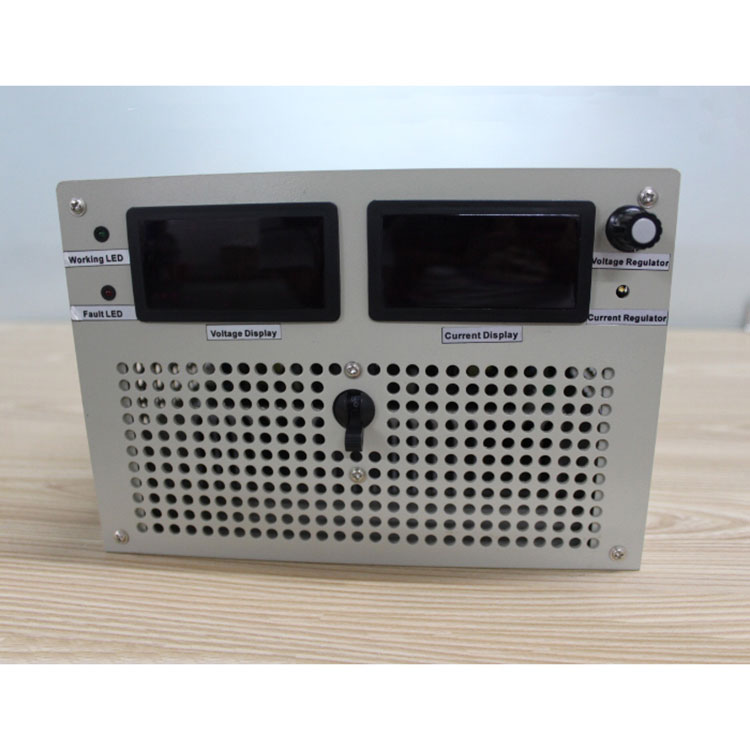

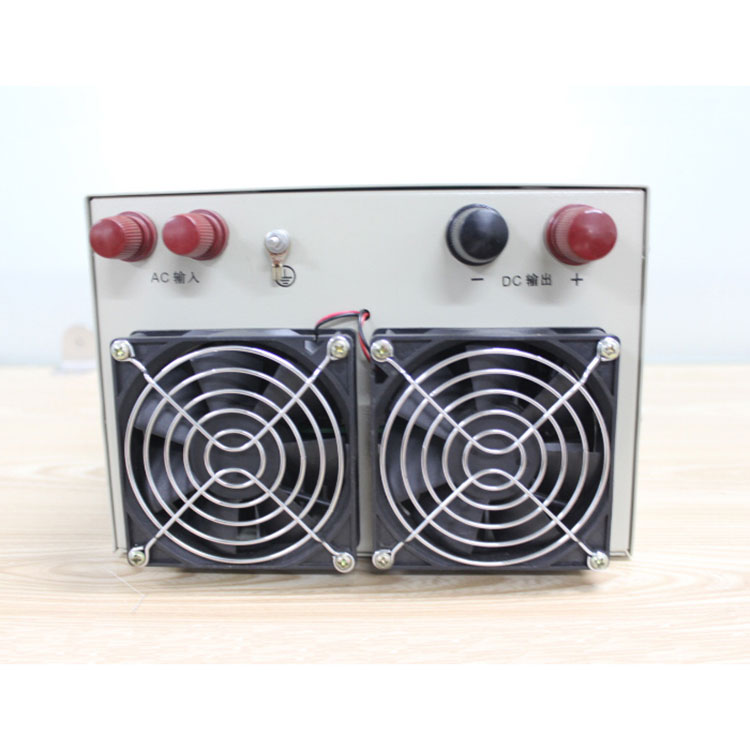

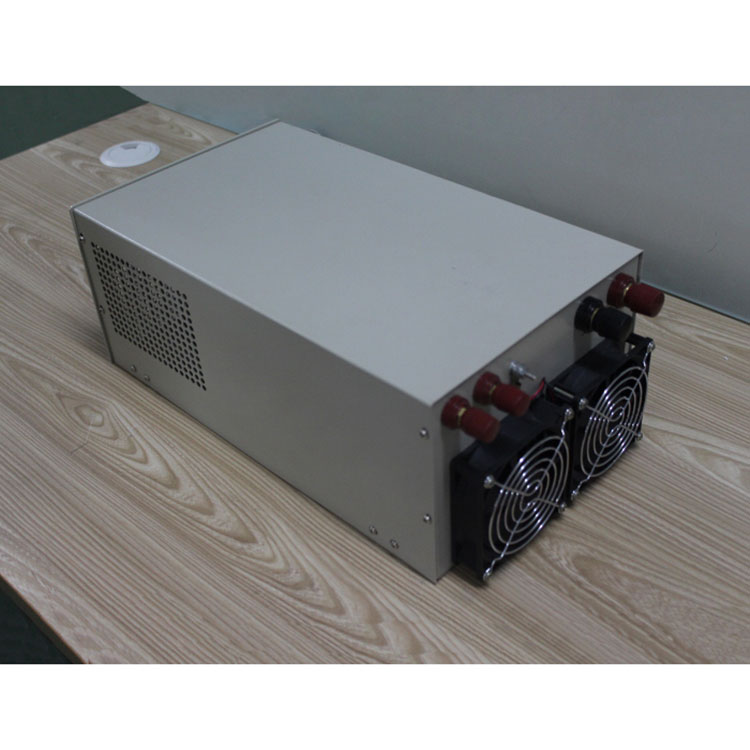

3000W Single Output switching power supply SV-3000 series
Features:
·High efficiency, high
reliability
100% full load burn-in test
Protection: Short circuit/ Over load / Over voltage
1 year warranty
|
SPECIFICATIONS |
|||
|
OUTPUT |
|
||
|
Model |
SV-3000-24 |
SV-3000-48 |
SV-3000-110 |
|
DC Voltage |
24V |
48V |
110V |
|
Rated Current |
120A |
60.0A |
27.3A |
|
Current Range |
0-120A |
0-60.0A |
0-27.3A |
|
Ripple & Noise |
0.50% |
0.50% |
0.50% |
|
Voltage Adj. Range |
0-24V |
0-48V |
0-110V |
|
Setup&Rise Time |
100ms,50ms at full load |
||
|
Hold Up Time |
20ms at full load |
||
|
INPUT |
|
||
|
Voltage Range |
AC220V±20% 47～63HZ |
||
|
AC Current |
3.2A/115V 1.6A/230V |
||
|
Efficiency |
86% |
87% |
89% |
|
Inrush Current |
40A/230V |
||
|
Leakage Current |
<0.5MA/230VAC |
||
|
PROTECTION |
|
||
|
Over Load |
110～150% |
||
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||
|
Over Voltage |
110～150% |
||
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P:1.5KVAC/1min I/P-F/G:1.5KVAC/1min |
||
|
Isolation Resistance |
O/P-F/G:0.5KVAC /1min |
||
|
Weight |
9.5kg/piece |
||
|
Dimension |
400*220*150mm |
||
|
NOTE |
|
||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||
