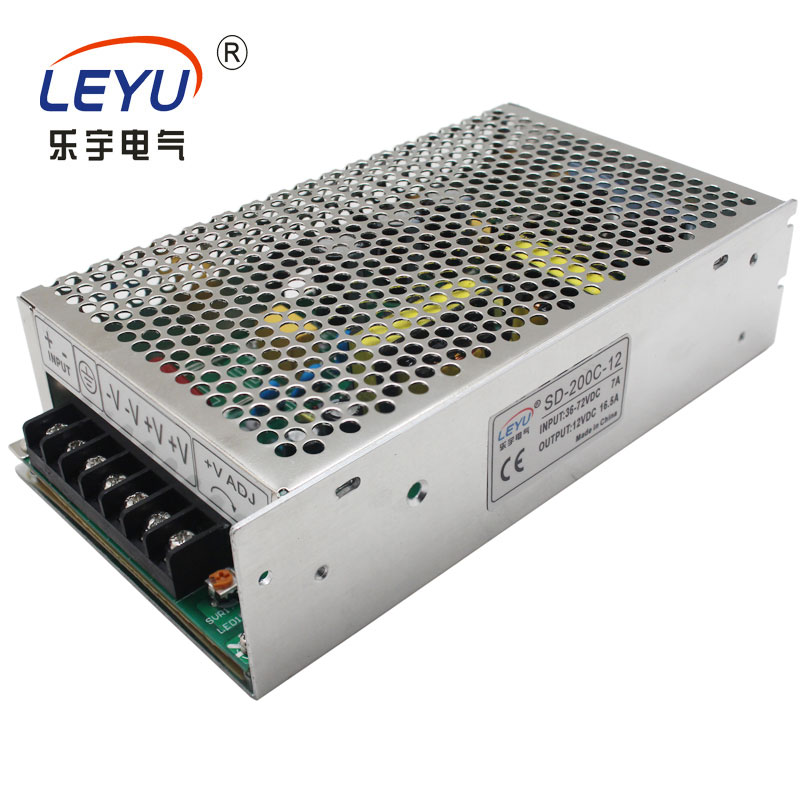

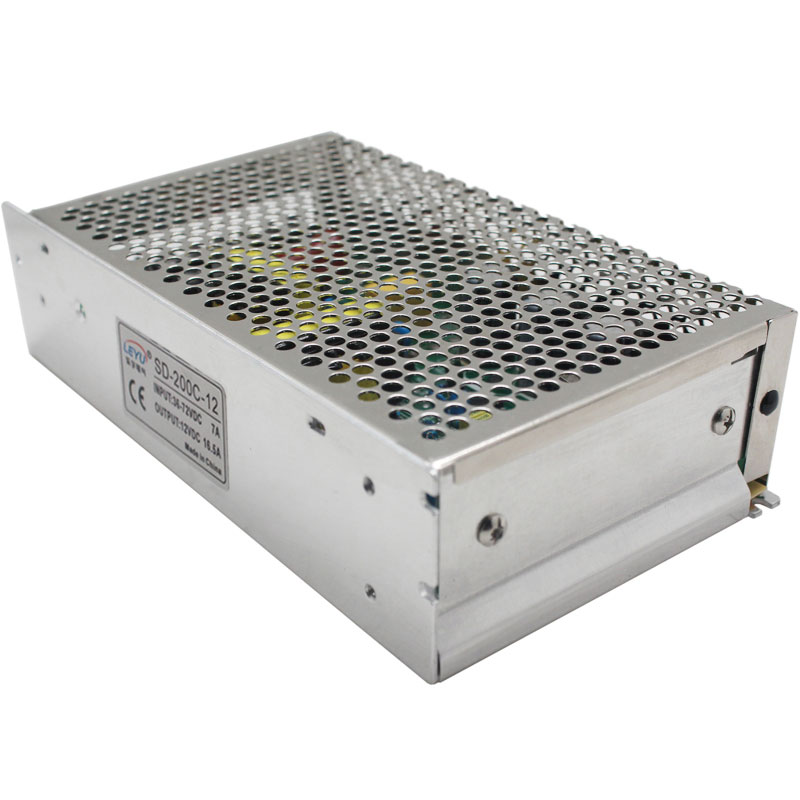

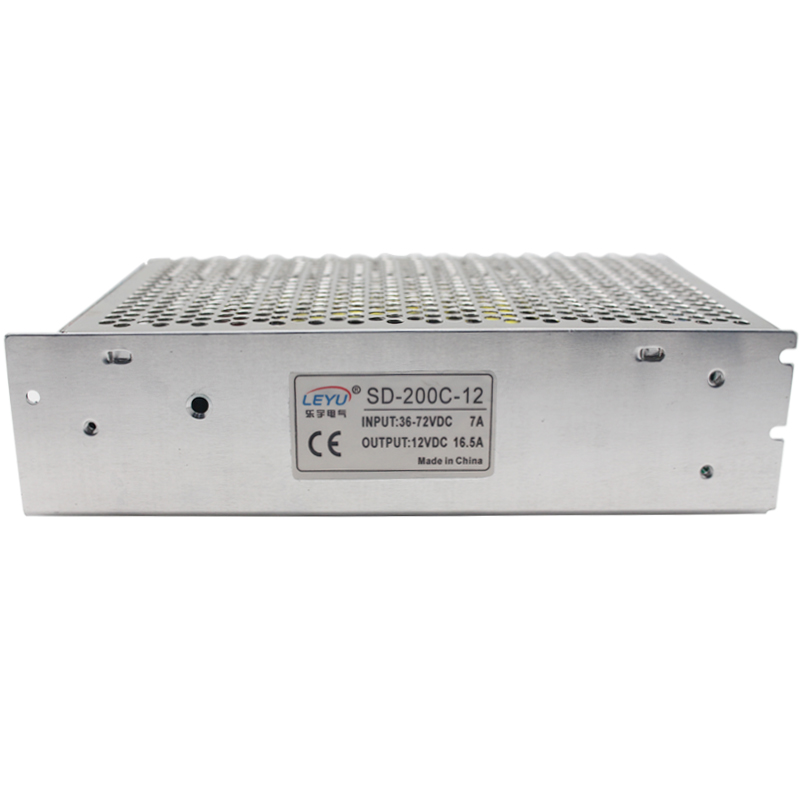

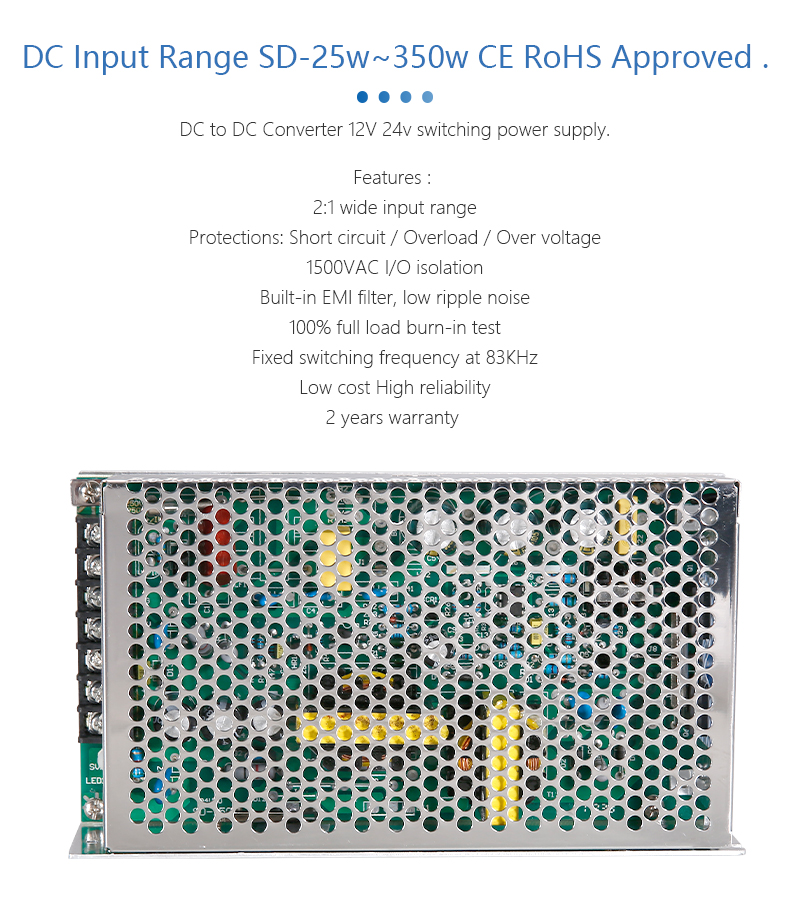

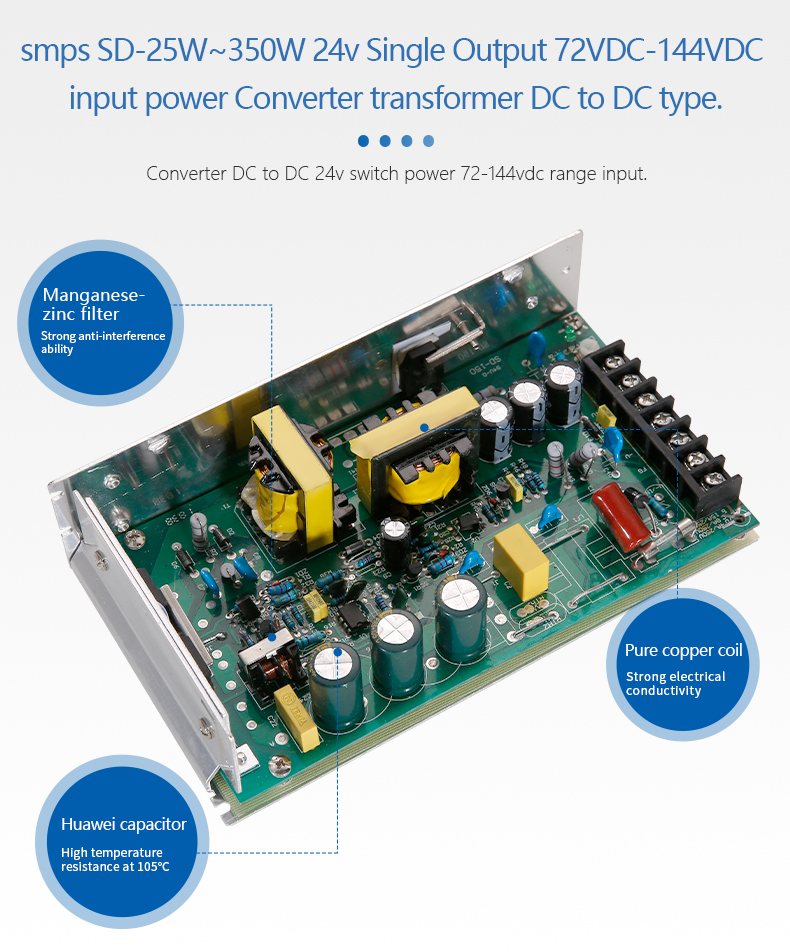

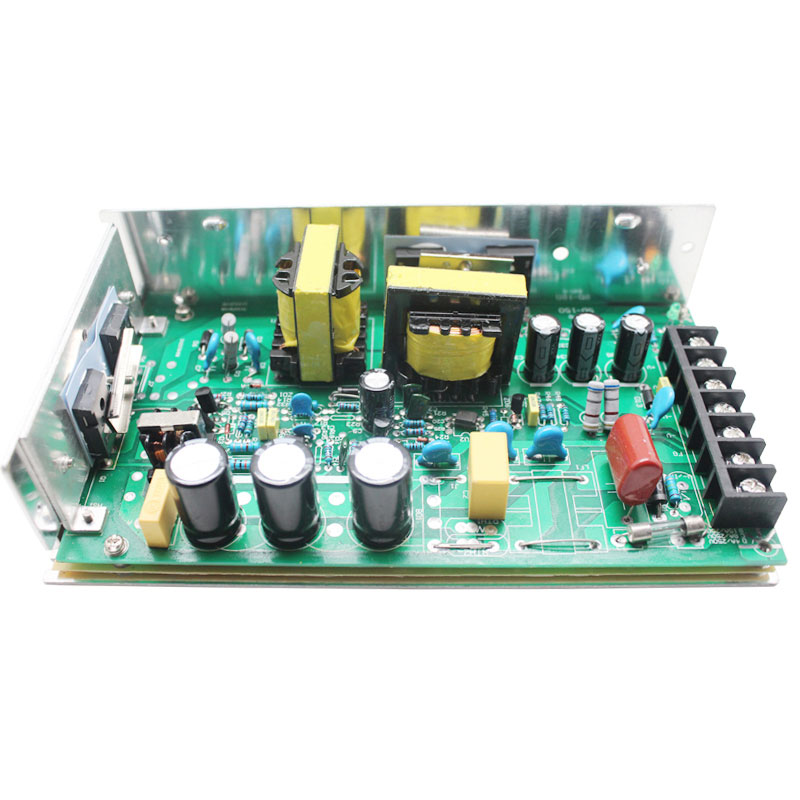

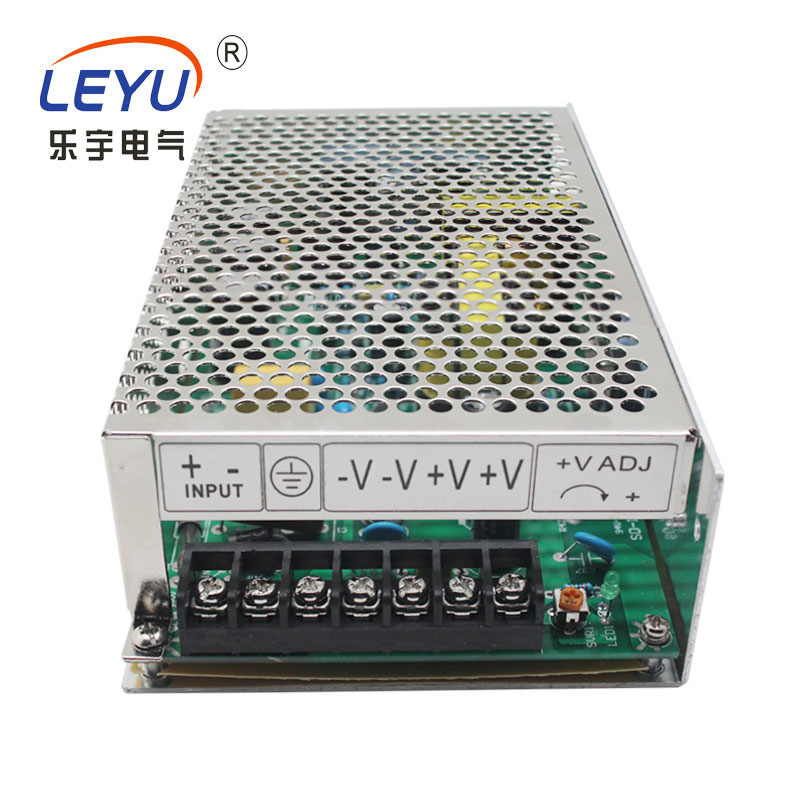

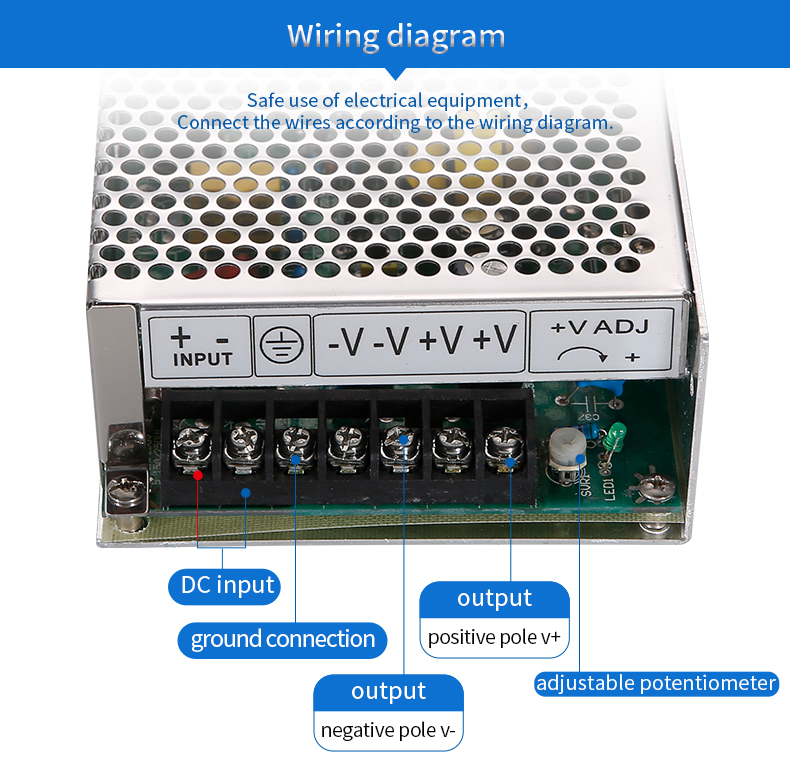

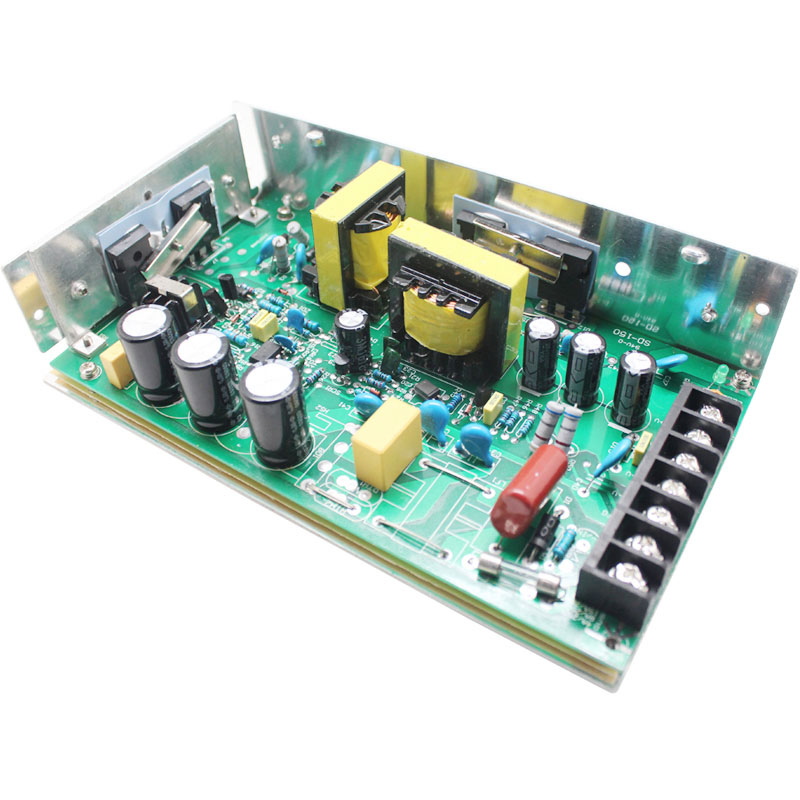

200W Single Output DC-DC Converter SD-200 series
Features:
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VAC I/O isolation
Cooling by free air convection
100% full load burn-in test
24V and 48V input voltage design refer to LVD
1 year warranty
|
SPECIFICATION |
||||||||
|
OUTPUT |
|
|||||||
|
Model |
SD-200B |
SD-200C |
||||||
|
DC Voltage |
5V |
12V |
24V |
48V |
5V |
12V |
24V |
48V |
|
Rated Current |
34A |
16.7A |
8.4A |
4.2A |
40A |
16.7A |
8.4A |
4.2A |
|
Current Range |
0~34A |
0~16.7A |
0~8.4A |
0~4.2A |
0~40A |
0~16.7A |
0~8.4A |
0~4.2A |
|
Rated Power |
170W |
200.4W |
201.6W |
201.6W |
200W |
200.4W |
201.6W |
201.6W |
|
Ripple & Noise |
100mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
100mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
|
Voltage Adj. Range |
4.5 ~ 5.5VDC |
11 ~ 16VDC |
23 ~ 30VDC |
43 ~ 53VDC |
4.5 ~ 5.5VDC |
11 ~ 16VDC |
23 ~ 30VDC |
43 ~ 53VDC |
|
Voltage Tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Setup, Rise Time |
300ms, 50ms at full load |
|||||||
|
|
|
|||||||
|
INPUT |
|
|||||||
|
Voltage Range |
B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC |
|||||||
|
Efficiency |
79% |
82% |
85% |
86% |
81% |
84% |
86% |
86% |
|
DC Current |
10.8A/24V |
10.6A/24V |
10.4A/24V |
10.4A/24V |
5.4A/48V |
5.2A/48V |
6.7A/48V |
5A/48V |
|
Inrush Current |
C:45A/48VDC D:45A/96VDC |
|||||||
|
|
|
|||||||
|
PROTECTION |
|
|||||||
|
Over Load
|
105 ~ 135% rated output power |
|||||||
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||||||
|
Over Voltage |
5.75 ~ 6.75V |
16.8 ~ 20V |
31.5 ~ 37.5V |
53 ~ 65V |
5.75 ~ 6.75V |
16.8 ~ 20V |
31.5 ~ 37.5V |
53 ~ 65V |
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||||||
|
Over Temperature |
95℃±5℃(100℃±5℃ for SD-200B-12 only) TSW1 detect on main power transistor |
|||||||
|
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
||||||||
|
|
|
|||||||
|
ENVIRONMENT |
|
|||||||
|
Working Temp. |
-20 ~ +60℃(Refer to “Derating Curve”) |
|||||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
|||||||
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95%RH |
|||||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
|||||||
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||||||
|
|
|
|||||||
|
SAFETY & EMC |
|
|||||||
|
Safety Standards |
UL60950-1approved(for SD-200C-24 type only), IEC60950-1 CB approved by TUV (for D type only) |
|||||||
|
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
|||||||
|
EMC Emission |
Compliance to EN55022 (CISPR22) Class B |
|||||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A |
|||||||
|
|
|
|||||||
|
OTHERS |
|
|||||||
|
Dimension |
215*115*50mm (L*W*H) |
|||||||
|
Weight |
1.1Kg |
|||||||
|
Packing |
12pcs/14.4Kg/0.92CUFT |
|||||||
|
|
|
|||||||
|
NOTE |
|
|||||||
|
1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
||||||||
