Product Detail

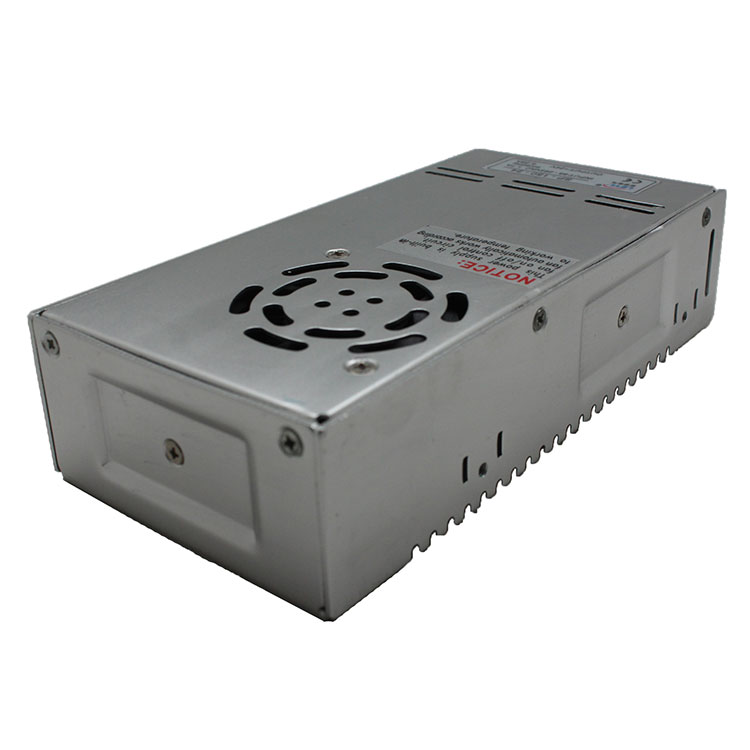

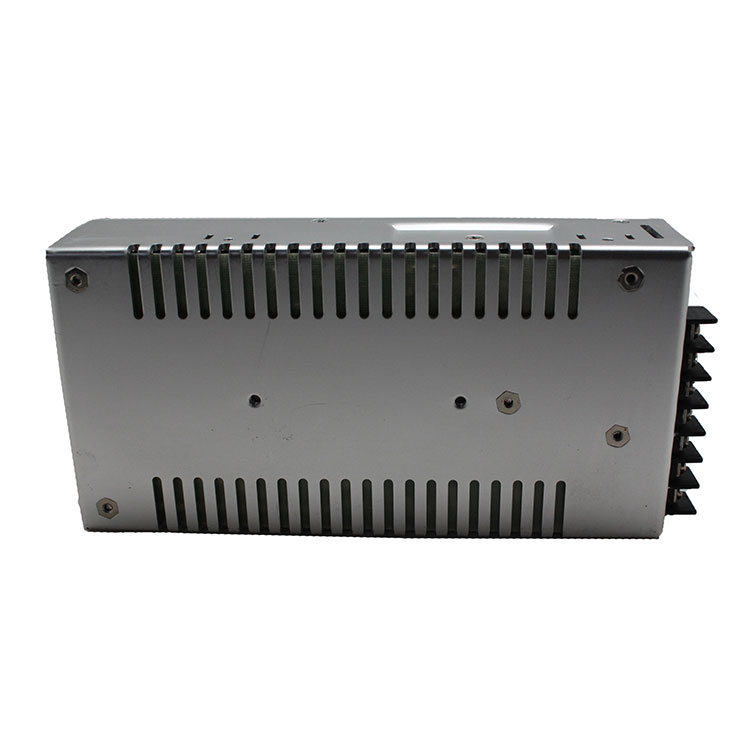

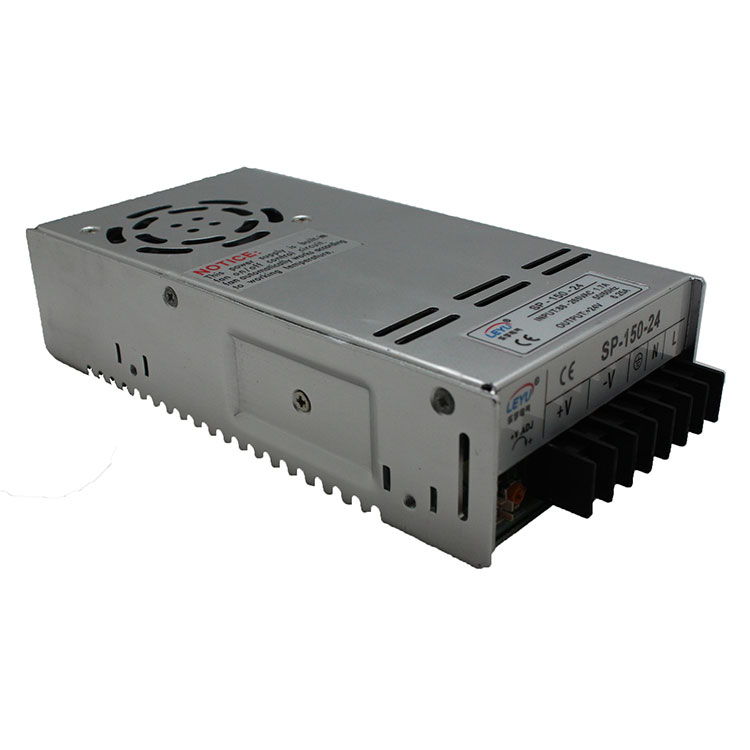

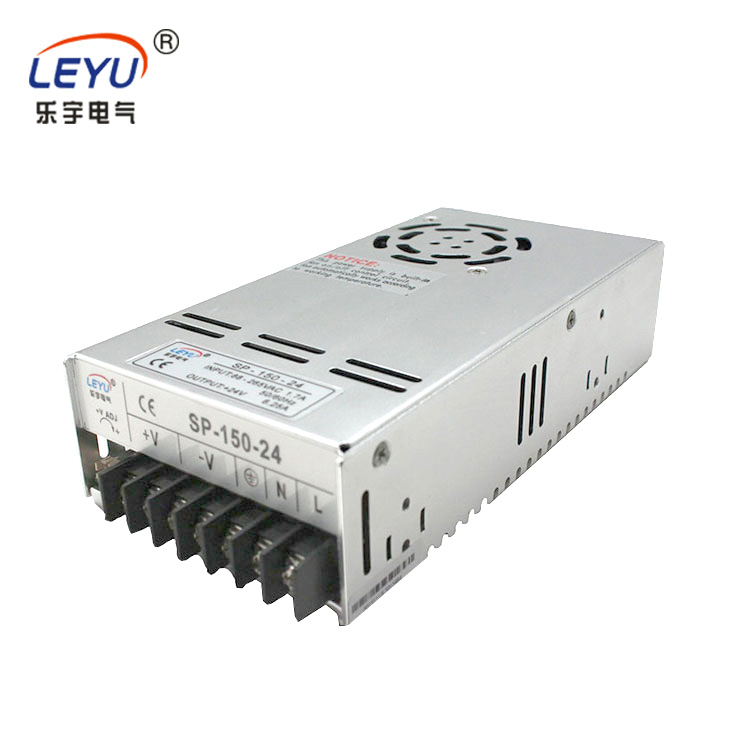

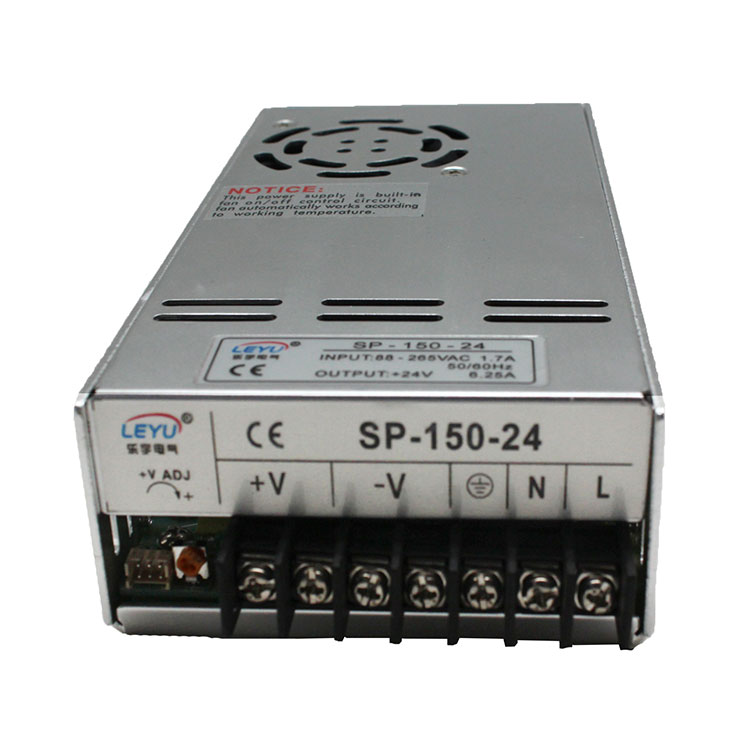

150W Single Output with PFC Function SP-150 series
Features:
·Universal AC input/ full range
·Built-in active PFC function, PF>0.93
·100% full load burn-in test
·Protections: Short circuit/ Over load / Over voltage/
Over temperature
·Built- in constant current limiting circuit
·LED indicator for power on
·Remote ON-OFF control (Optional)
·Fixed switching frequency at PF: 67KHzPWM: 134 KHz
·2 years warranty
| SPECIFICATIONS | ||||||||
| OUTPUT | ||||||||
| Model | SP-150-5 | SP-150-7.5 | SP-150-12 | SP-150-13.5 | SP-150-15 | SP-150-24 | SP-150-27 | SP-150-48 |
| DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Rated Current | 30A | 20A | 12.5A | 11.2A | 10A | 6.3A | 5.6A | 3.2A |
| Current Range | 0-30A | 0-20A | 0-12.5A | 0-11.2A | 0-10A | 0-6.3A | 0-5.6A | 0-3.2A |
| Rated Power | 150W | 150W | 150W | 151.2W | 150W | 150W | 151.2W | 153.6W |
| Ripple&Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 250mVp-p |
| DC Adjustment Range | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% |
| Voltage Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±1% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Setup,Rise,Hold Up Time | 600ms,30ms,20ms at full load | |||||||
| INPUT | ||||||||
| Voltage Range | 85～264 VAC47-63Hz；120～370VDC | |||||||
| AC Current | 2.5A/115 VAC1.2A/230VAC | |||||||
| Power Factor | PF>0.93/230VAC,PF>0.98/115VAC at full load | |||||||
| Efficiency | 75% | 79% | 80% | 80% | 81% | 83% | 84% | 84% |
| Inrush Current | Cold start 40A/230VAC | |||||||
| Leakage Current | <2mA/240VAC | |||||||
| PROTECTION | ||||||||
| Over Load | 105%-150% | |||||||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||||||
| Over Voltage | 110%~135% | |||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||
| Over Temp. | TSW1(Power transistor) When temp.in 95±5 ℃ shutdown o/p voltagetemp. ＜95±5 ℃O/I auto-recovery. | |||||||
| ENVIRONMENT | ||||||||
| Working Temp.Humidity | -10℃~+50℃; 20%~90%RH | |||||||
| Storage Temp.Humidity | -20℃~+85℃; 10%~95%RH | |||||||
| Temp.Coefficient | ±0.03%/℃(0～50℃) | |||||||
| Vibration | 10～500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||
| SAFETY | ||||||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | |||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC | |||||||
| STANDARD | ||||||||
| Safety Standard | Design refer to UL1950,TUV EN60950 | |||||||
| EMCStandard | Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 | |||||||
| Dimension | 199*99*50mm（L*W*H） | |||||||
| Weight | 0.75Kg | |||||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | |||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. | ||||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | ||||||||
| 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||
