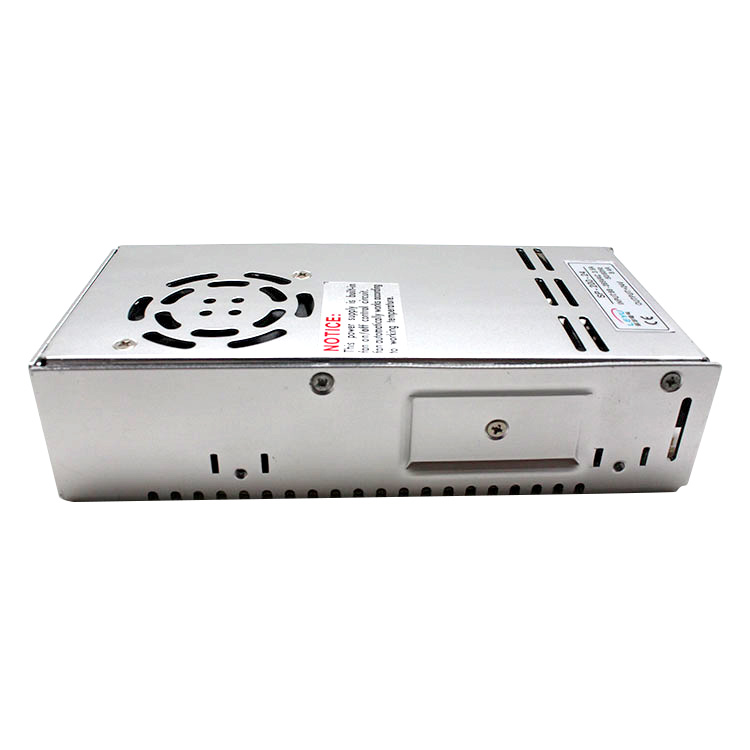

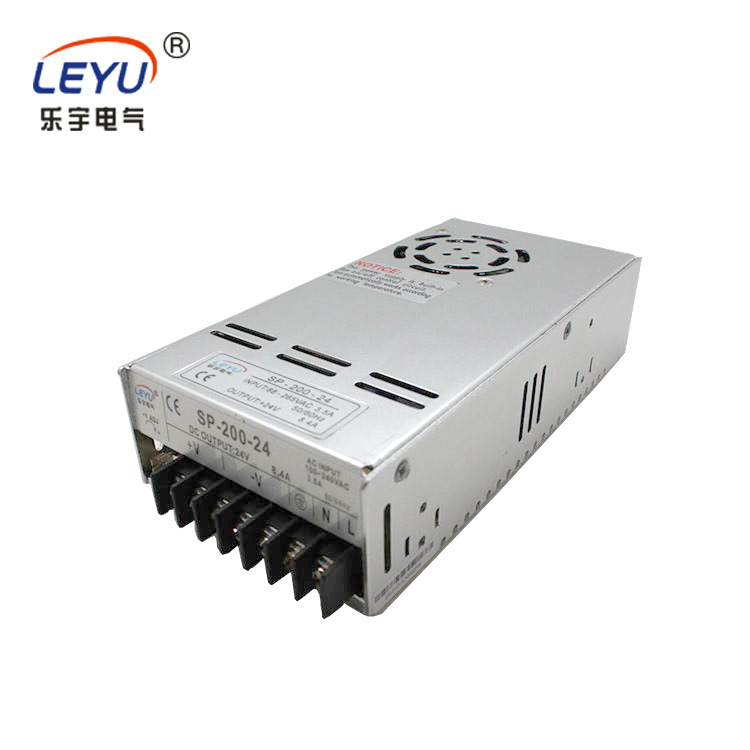

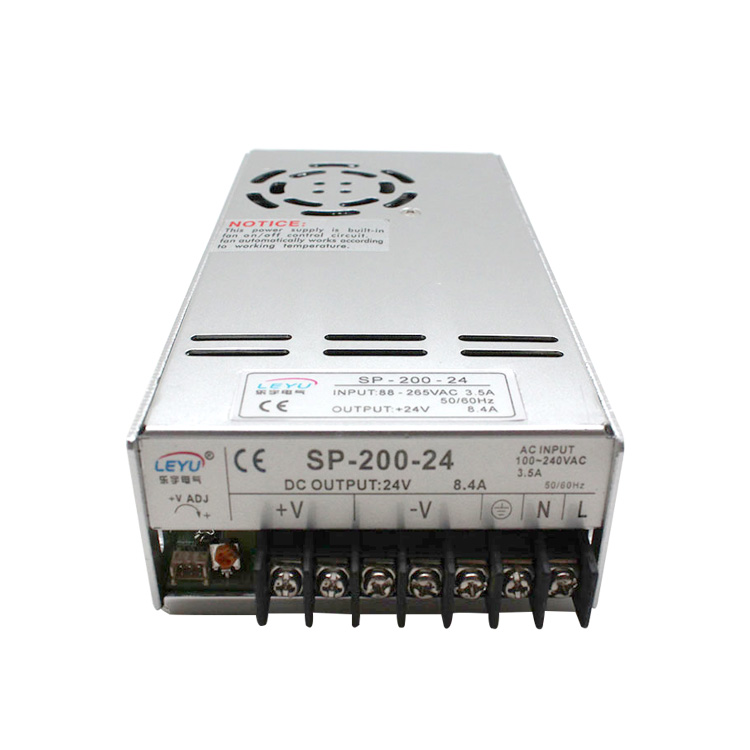

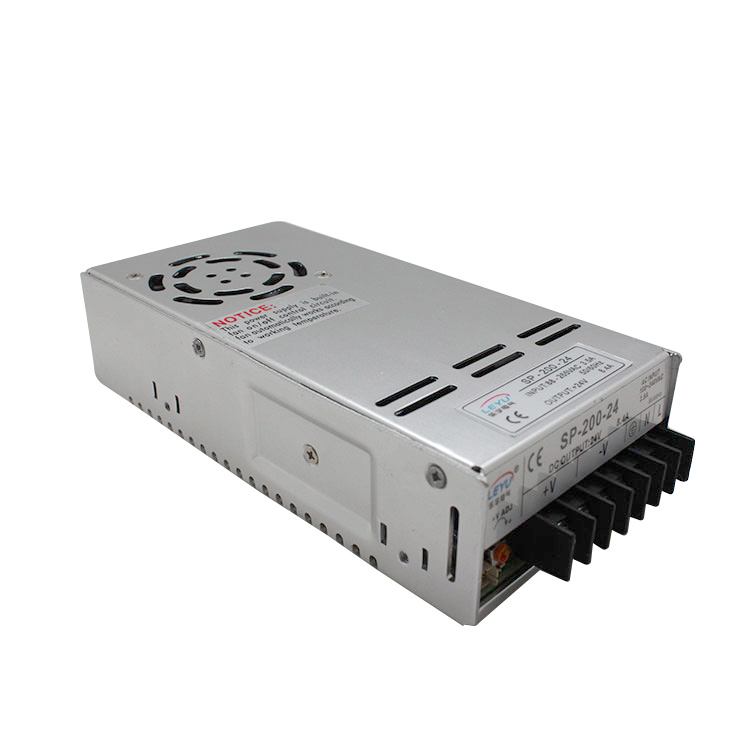

SP-200

SPECIFICATIONS

OUTPUT

Model

SP-200-5

SP-200-7.5

SP-200-12

SP-200-13.5

SP-200-15

SP-200-24

SP-200-27

SP-200-48

DC Voltage

5V

7.5V

12V

13.5V

15V

24V

27V

48V

Rated Current

40A

26.7A

16.7A

14.9A

13.4A

8.4A

7.5A

4.2A

Current Range

0-40A

0-26.7A

0-16.7A

0-14.9A

0-13.4A

0-8.4A

0-7.5A

0-4.2A

Rated Power

200W

200.2W

200.4W

201.1W

201W

201.6W

202.5W

201.6W

Ripple&Noise

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

150mVp-p

150mVp-p

250mVp-p

DC Adjustment Range

-5%，+10%

-5%，+10%

-5%，+10%

-5%，+10%

-5%，+10%

-5%，+10%

-5%，+10%

-5%，+10%

Voltage Tolerance

±2%

±2%

±2%

±2%

±2%

±1%

±1%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup,Rise,Hold Up Time

600ms,30ms,20ms at full load

INPUT

Voltage Range

85～264 VAC47-63Hz；120～370VDC

AC Current

3.5A/115 VAC1.7A/230VAC

Power Factor

PF>0.93/230VAC,PF>0.98/115VAC at full load

Efficiency

71%

76%

79%

80%

81%

83%

83%

84%

Inrush Current

Cold start 40A/230VAC

Leakage Current

<2mA/240VAC

PROTECTION

Over Load

105%-150%

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

110%~135%

Protection type: Shut down o/p voltage, re-power on to recover

Over Temp.

TSW1(Power transistor) When temp.in 95±5 ℃ shutdown o/p voltagetemp. ＜95±5 ℃O/I auto-recovery.

ENVIRONMENT

Working Temp.Humidity

-10℃~+50℃; 20%~90%RH

Storage Temp.Humidity

-20℃~+85℃; 10%~95%RH

Temp.Coefficient

±0.03%/℃(0～50℃)

Vibration

10～500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL1950,TUV EN60950

EMCStandard

Designrefer toEN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024

OTHERS

Dimension

199*99*50mm (L*W*H)

Weight

0.8Kg/pc

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
