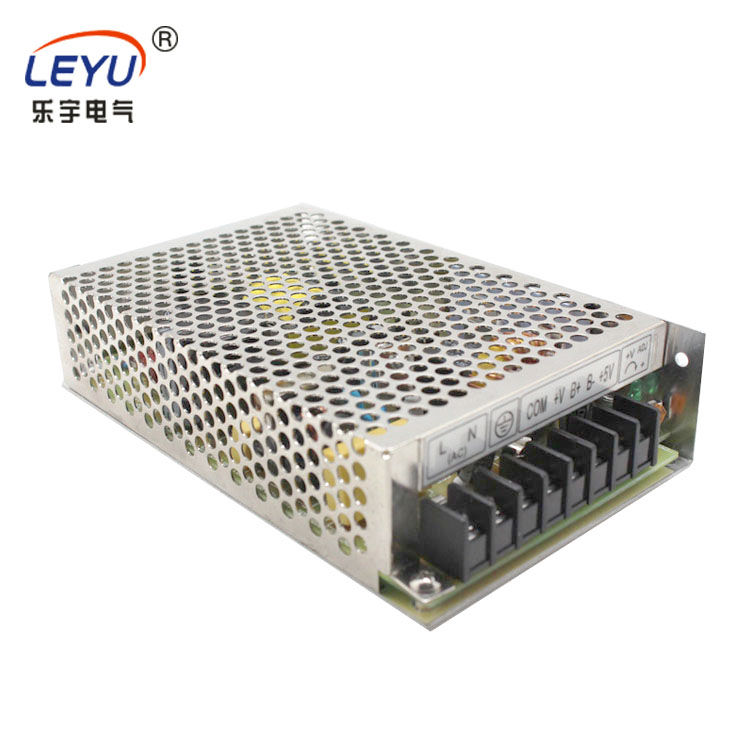

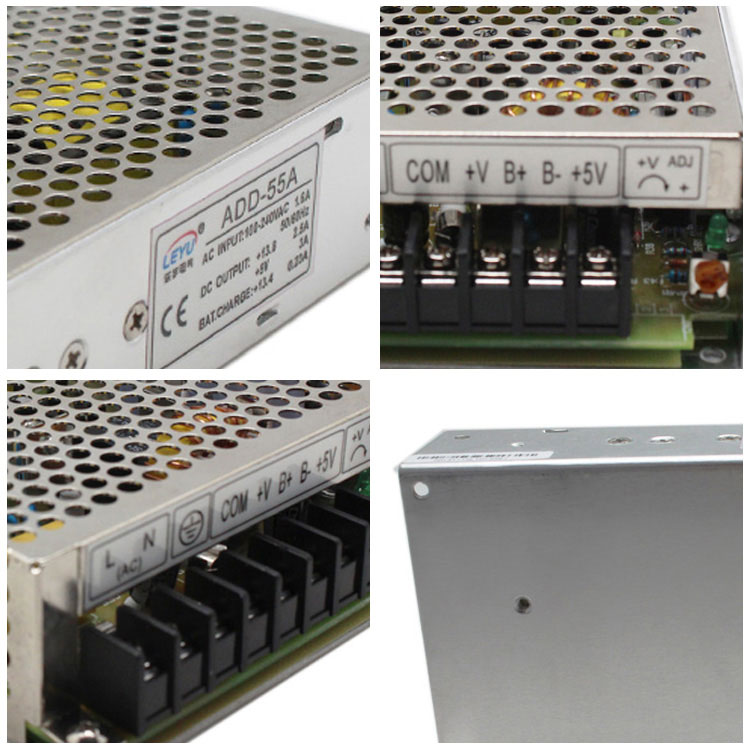

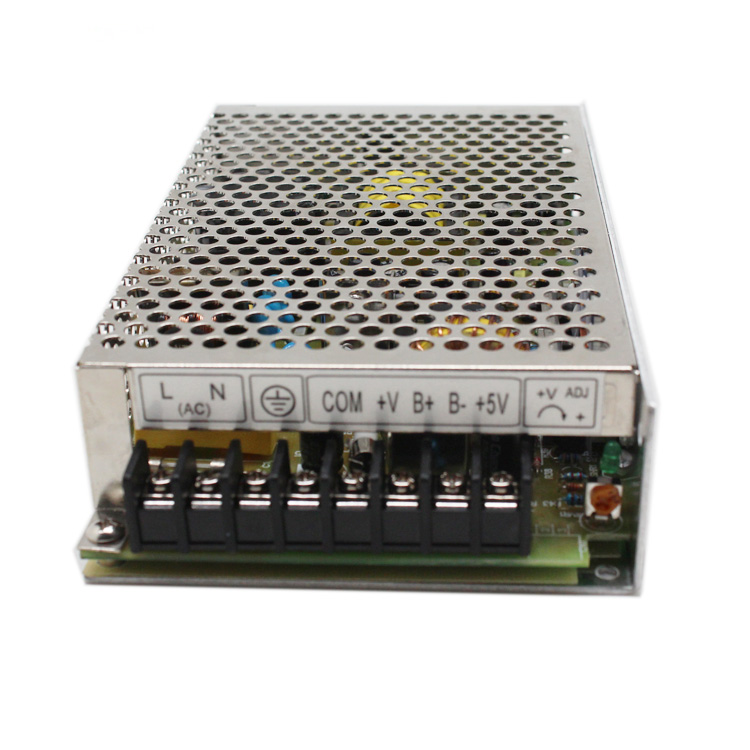

55W Dual Output with Battery Charger (UPS Function) ADD-55 series
Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protections
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45 KHz
1 year warranty
|
SPECIFICATION |
||||||
|
MODEL |
ADD-55A |
ADD-55B |
||||
|
OUTPUT |
|
|
||||
|
Outputnumber |
CH2 |
CH3 |
CH1 |
CH3 |
CH2 |
CH1 |
|
DC voltage |
13.8V |
5V |
13.4V |
5V |
26.5V |
27.6V |
|
Rated Current |
2.5A |
3A |
0.23A |
1.3A |
3A |
0.16A |
|
Current Range |
0~3.5A |
0~4A |
-------- |
0~2A |
0~4A |
-------- |
|
Rated Power |
52.58W |
55.12W |
||||
|
Ripple&Noise |
100mVp-p |
100mVp-p |
-------- |
150mVp-p |
150mVp-p |
-------- |
|
Voltage Adj.Range |
CH1:12~14.5V |
CH1:24~29V |
||||
|
Voltage Tolerance |
±1.0% |
3.0% |
-------- |
±1.0% |
3.0% |
-------- |
|
Line Regulation |
±0.5% |
0.5% |
-------- |
±0.5% |
0.5% |
-------- |
|
Load Regulation |
±0.5% |
0.5% |
-------- |
±0.5% |
0.5% |
-------- |
|
Setup,Rise Time |
800ms,50ms/230VAC 1600ms,50ms/115VAC at full load |
|||||
|
Hold UpTime |
80ms/230VAC 16ms/115VAC at full load |
|||||
|
|
|
|||||
|
INPUT |
|
|||||
|
Voltage Range |
88~264VAC47~63Hz; 124~370VDC |
|||||
|
AC Current |
1.6A/115VAC 1A/230VAC |
|||||
|
Efficiency |
71% |
74% |
||||
|
Inrush Current |
Coldstart 20A/115VAC 40A/230VAC |
|||||
|
Leakage Current |
<1mA /240VAC |
|||||
|
|
|
|||||
|
PROTECTION |
|
|||||
|
Over Load |
105~150% rated output power |
|||||
|
Protection type:AC Charging Mode:Hiccup mode,recovers automatically after fault condition is removed UPS Mode:Protected by internal fuse |
||||||
|
Over Voltage |
CH1:14.49~18.63V |
CH2:28.98~37.26V |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Battery Low |
9.5~11V |
20~22V |
||||
|
|
|
|||||
|
ENVIRONMENT |
|
|||||
|
Working Temp. |
-10~+60℃(Refer to“Derating Curve”) |
|||||
|
Working Humidity |
20~90%RH non-condensing |
|||||
|
Storage Temp.,Humidity |
-20~+85℃,10~95%RH |
|||||
|
Temp.Coefficient |
±0.03%/ ℃(0~50℃ )on CH1 output |
|||||
|
Vibration |
10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes |
|||||
|
|
|
|||||
|
SAFETY &EMC |
|
|||||
|
Safety Standards |
Design refer to UL60950-1, TUV EN60950-1 |
|||||
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||
|
Isolation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH |
|||||
|
EMC Emission |
Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3 |
|||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A |
|||||
|
|
|
|||||
|
OTHERS |
|
|||||
|
Dimension |

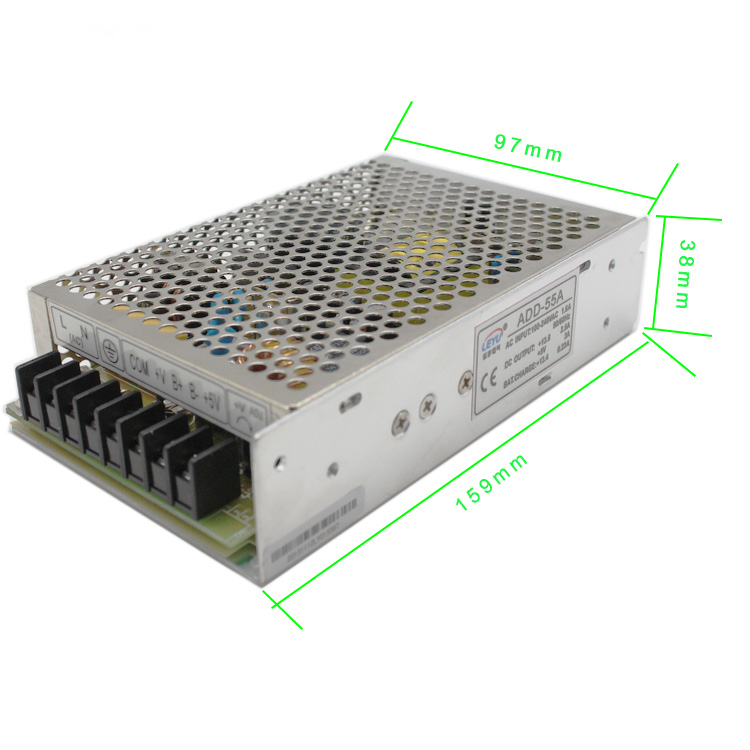

159*97*38mm(L*W*H) |
|||||
|
Weight |
0.5Kg |
|||||
|
Packing |
24pcs/12.6Kg/0.75CUFT |
|||||
|
|
|
|||||
|
NOTE |
|
|||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
||||||
