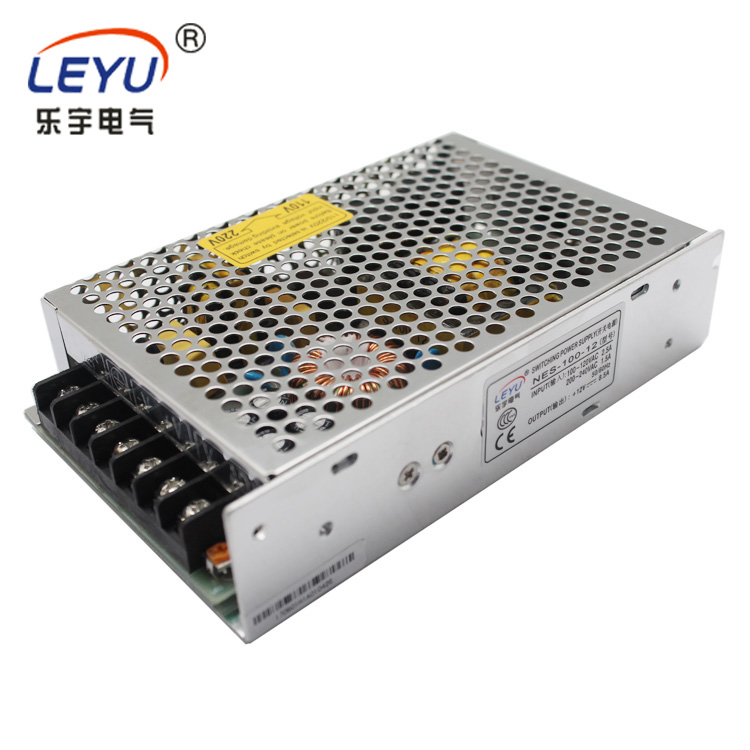

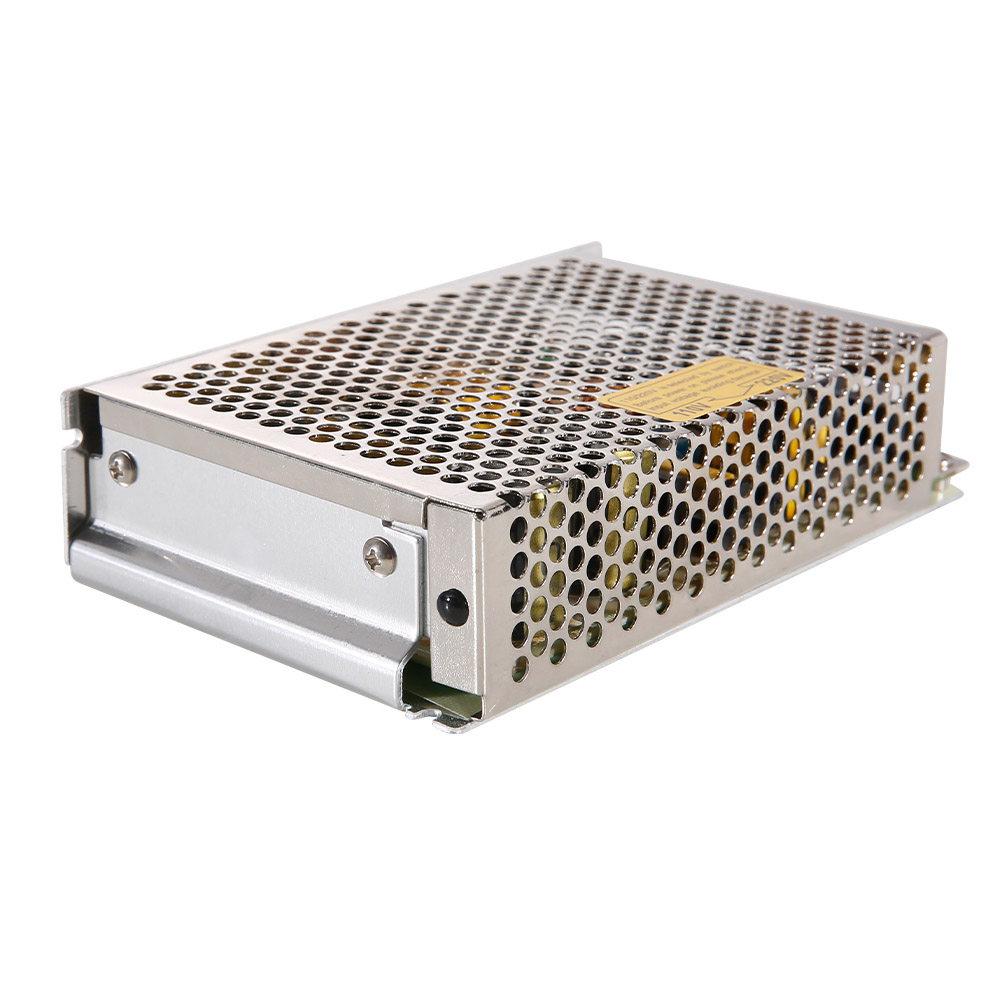

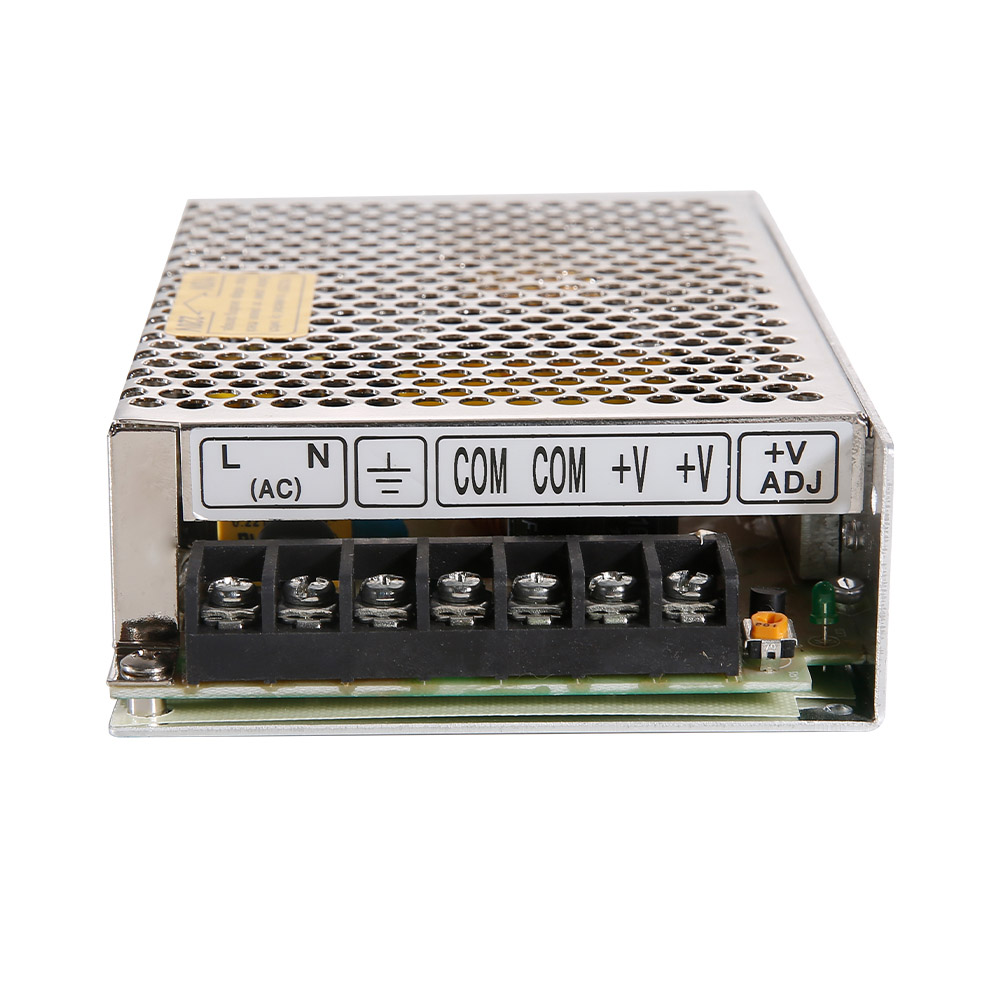

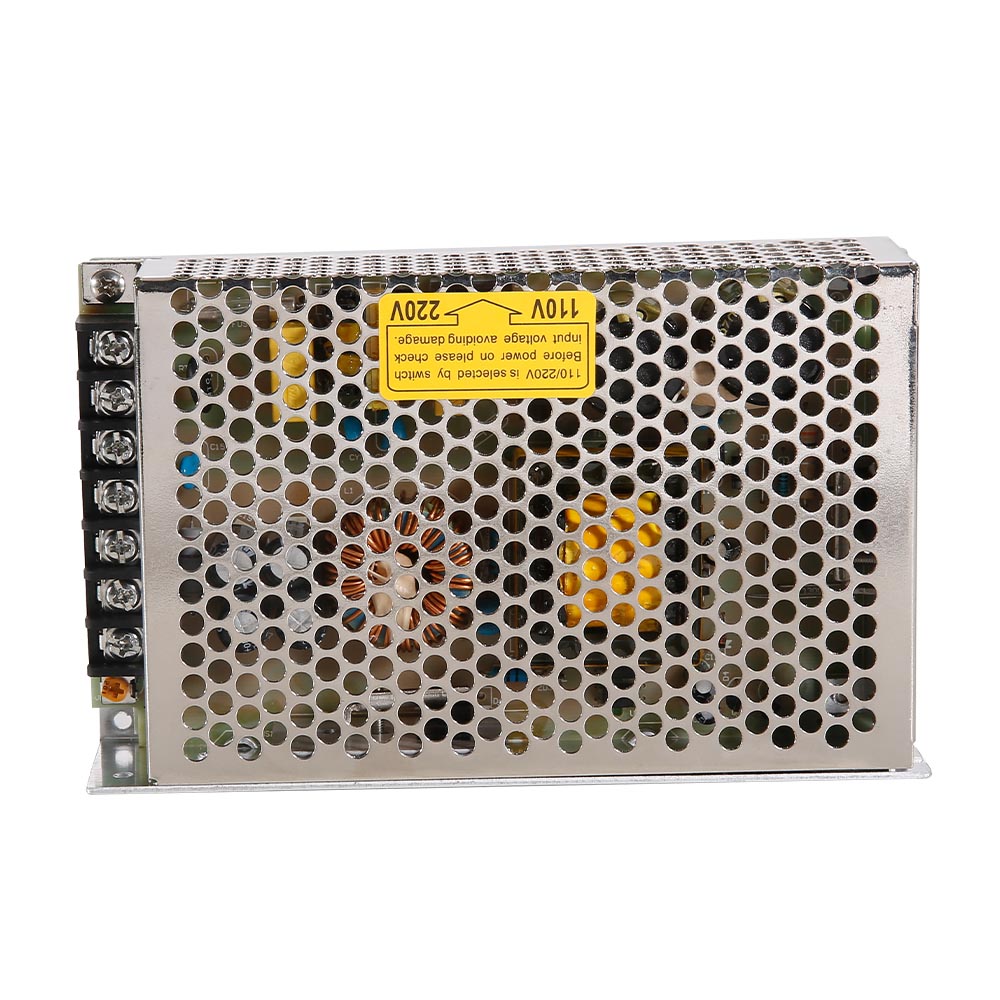

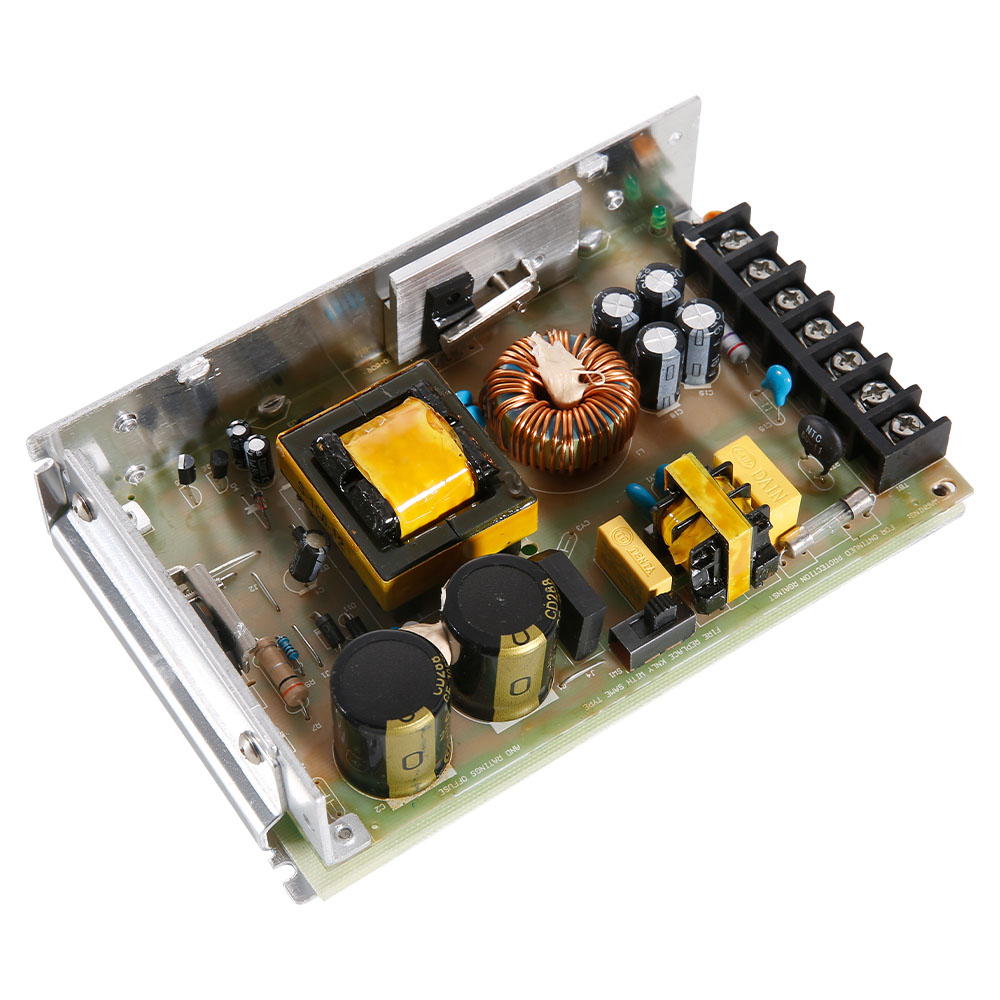

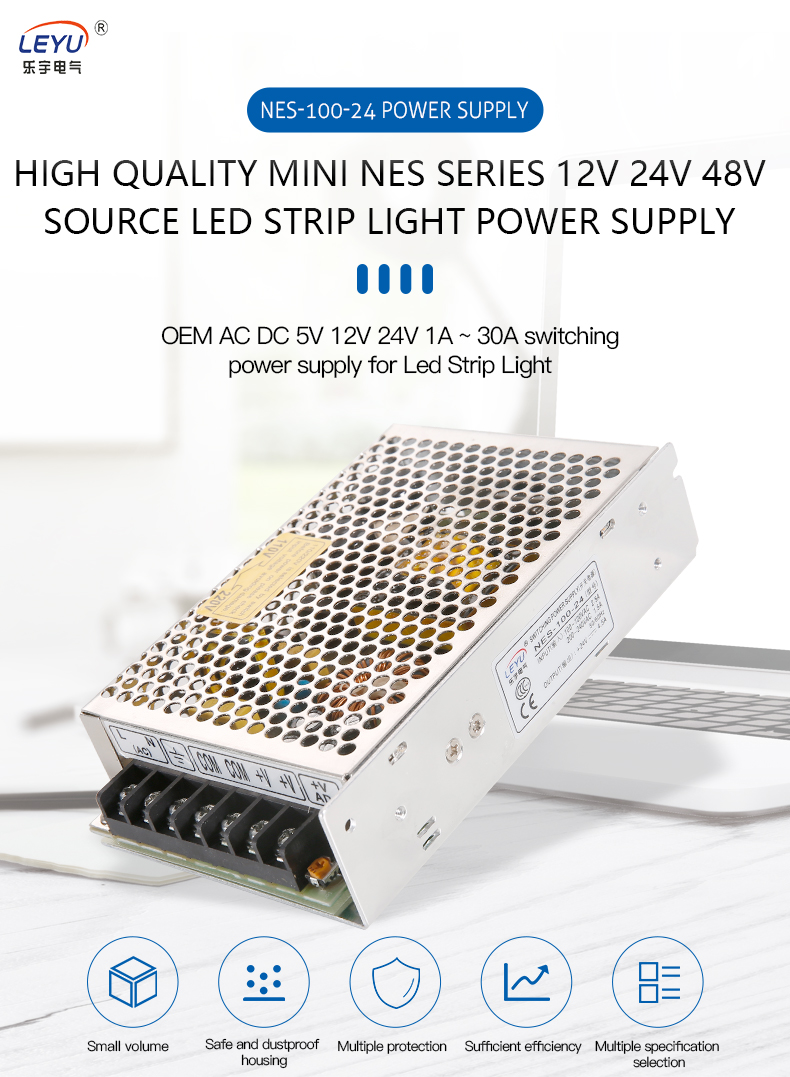

100W Single Output Switching Power Supply NES-100 series

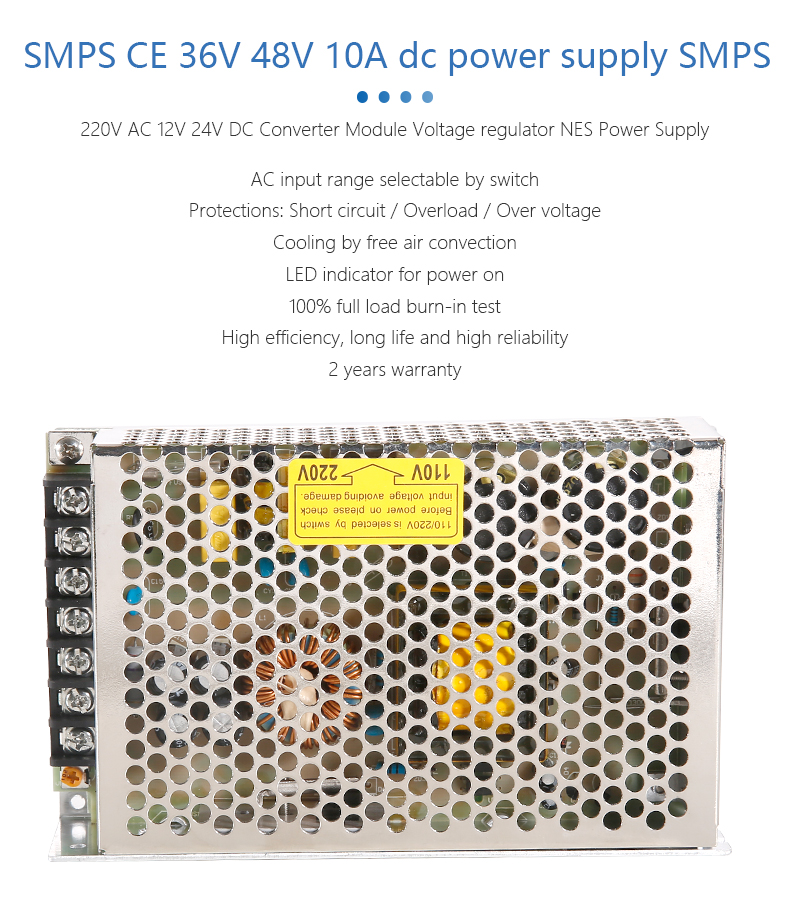

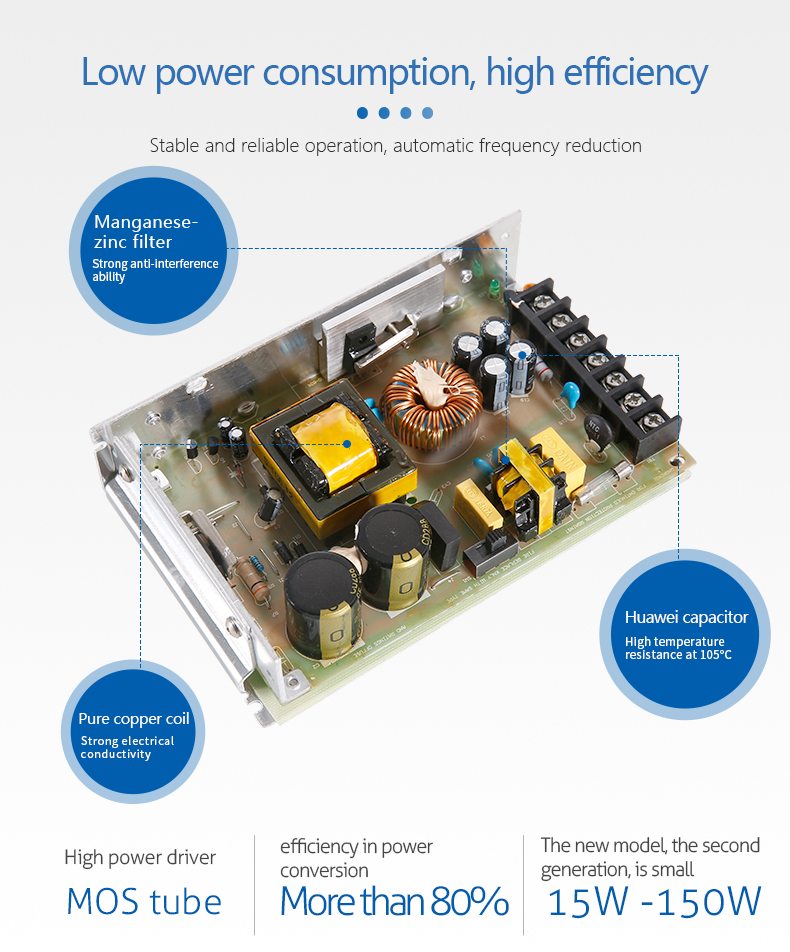

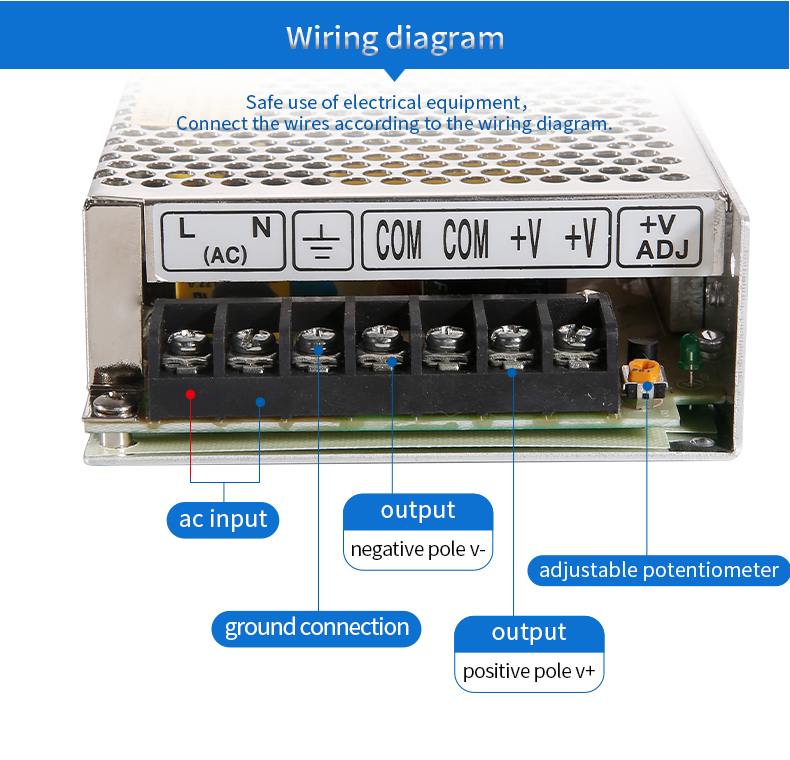

Features:

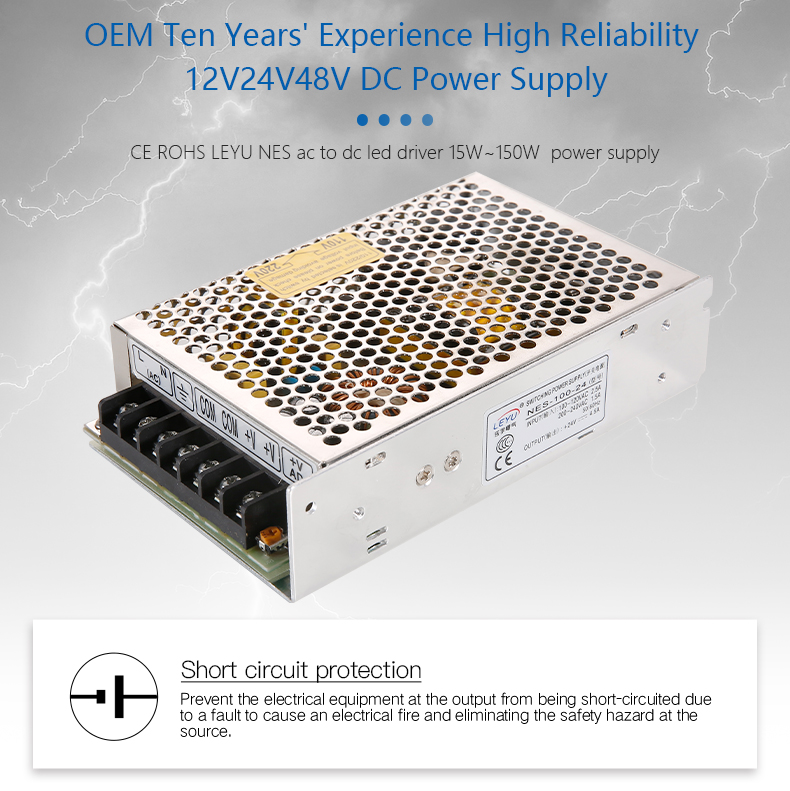

Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
2 years warranty
|
SPECIFICATION |
|
|
||||||||||||
|
OUTPUT |
|
|
||||||||||||
|
Model |
NES-100-5 |
NES-100-7.5 |
NES-100-9 |
NES-100-12 |
NES-100-15 |
NES-100-24 |
NES-100-48 |
|
||||||
|
DC Voltage |
5V |
7.5V |
9V |
12V |
15V |
24V |
48V |
|
||||||
|
Rated Current |
20A |
13.6A |
11.2A |
8.5A |
7A |
4.5A |
2.3A |
|
||||||
|
Current Range |
0~20A |
0~13.6A |
0~11.2A |
0~8.5A |
0~7A |
0~4.5A |
0~2.3A |
|
||||||
|
Rated Power |
100W |
102W |
100.8W |
102W |
105W |
108W |
110.4W |
|
||||||
|
Ripple&Noise |
80mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
||||||
|
Voltage Adj. Range |
4.75~ 5.5V |
7.13 ~ 8.3V |
8.55 ~ 9.9V |
11.4 ~ 13.2V |
14.25 ~ 16.5V |
22.8 ~ 26.4V |
45.6 ~ 52.8V |
|
||||||
|
Voltage Tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
||||||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
||||||
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
||||||
|
Setup,Rise Time |
500ms, 20ms/230VAC 500ms, 20ms/115VAC at full load |
|
||||||||||||
|
Hold Up Time |
30ms/230VAC 25ms/115VAC at full load |
|
||||||||||||
|
INPUT |
|
|
||||||||||||
|
Voltage Range |
85 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC |
|
||||||||||||
|
Frequency Range |
47 ~ 63Hz |
|
||||||||||||
|
Efficiency |
80% |
81% |
81% |
83% |
84% |
86% |
86% |
|||||||
|
AC Current |
2A/115VAC 1.2A/230VAC |
|
||||||||||||
|
Inrush Current |
Cold Start36A |
|
||||||||||||
|
Leakage Current |
<2mA / 240VAC |
|
||||||||||||
|
PROTECTION |
|
|
||||||||||||
|
Over Load |
110 ~ 150% rated output power |
|
||||||||||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
|||||||||||||
|
Over Voltage |
5.75~6.75V |
8.6 ~ 10.1V |
10.4 ~ 12.2V |
13.8~16.2V |
17.25~20.25V |
27.6~32.4V |
55.2~64.8V |
|||||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
|||||||||||||
|
ENVIRONMENT |
|
|
||||||||||||
|
Working Temp. |
-20 ~ +60℃ (Refer to “Derating Curve”) |
|
||||||||||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
|
||||||||||||
|
StorageTemp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
||||||||||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
|
||||||||||||
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
||||||||||||
|
SAFETY &EMC |
|
|
||||||||||||
|
Safety Standards |
Design refer to UL60950-1, CB(IEC60950-1),CCC GB4943 |
|
||||||||||||
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
||||||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
|
||||||||||||
|
EMC Emission |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
|
||||||||||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A |
|
||||||||||||
|
OTHERS |
|
|
||||||||||||
|
Dimension |
159*97*38mm (L*W*H) |
|
||||||||||||
|
Weight |
0.55Kg |
|
||||||||||||
|
Packing |
40pcs/carton |
|
||||||||||||
|
|
|
|
||||||||||||
|
NOTE |
|
|
||||||||||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
|
|||||||||||||
