Product Detail

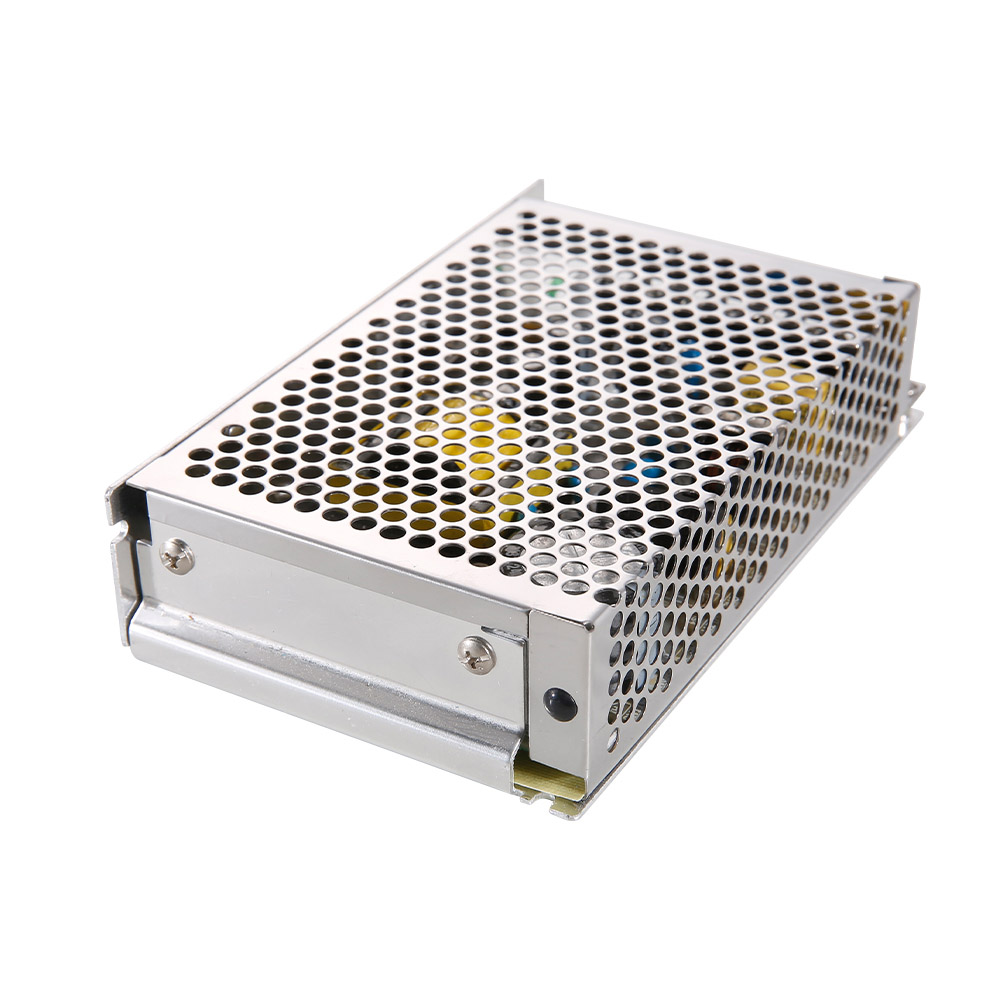

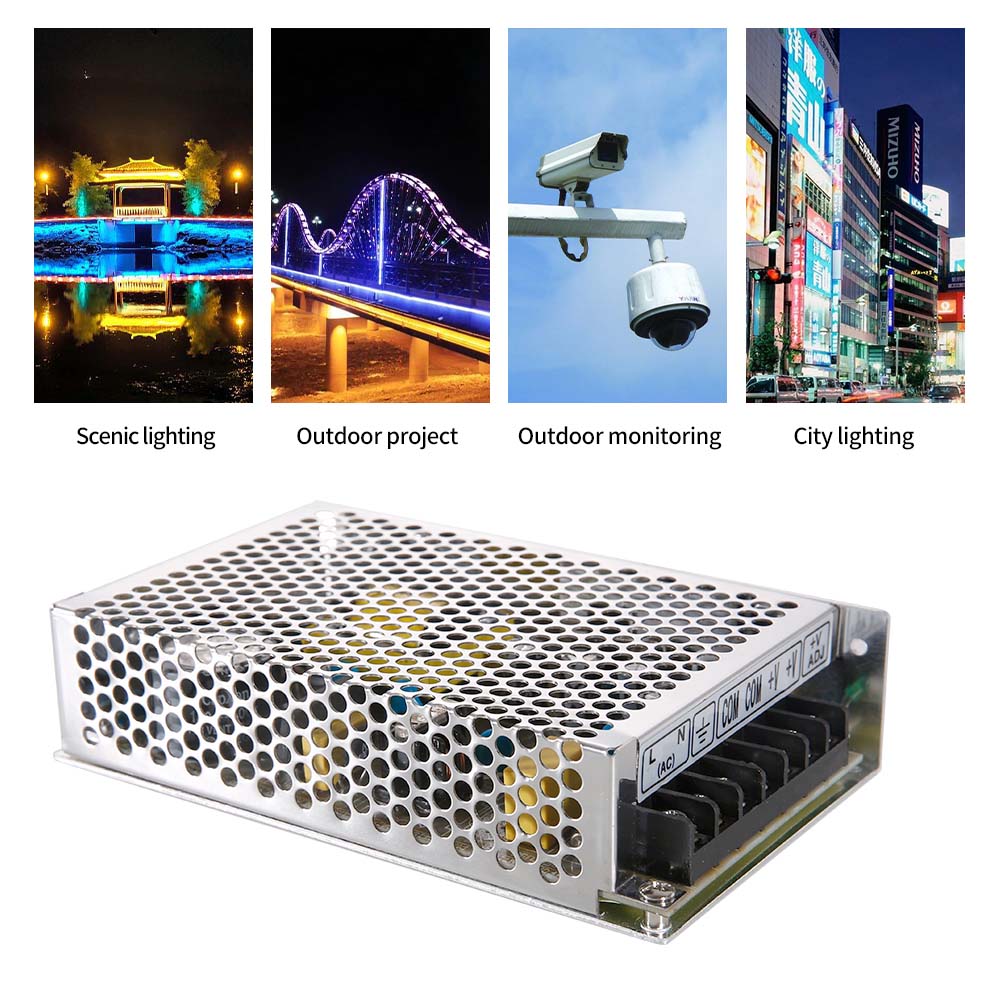

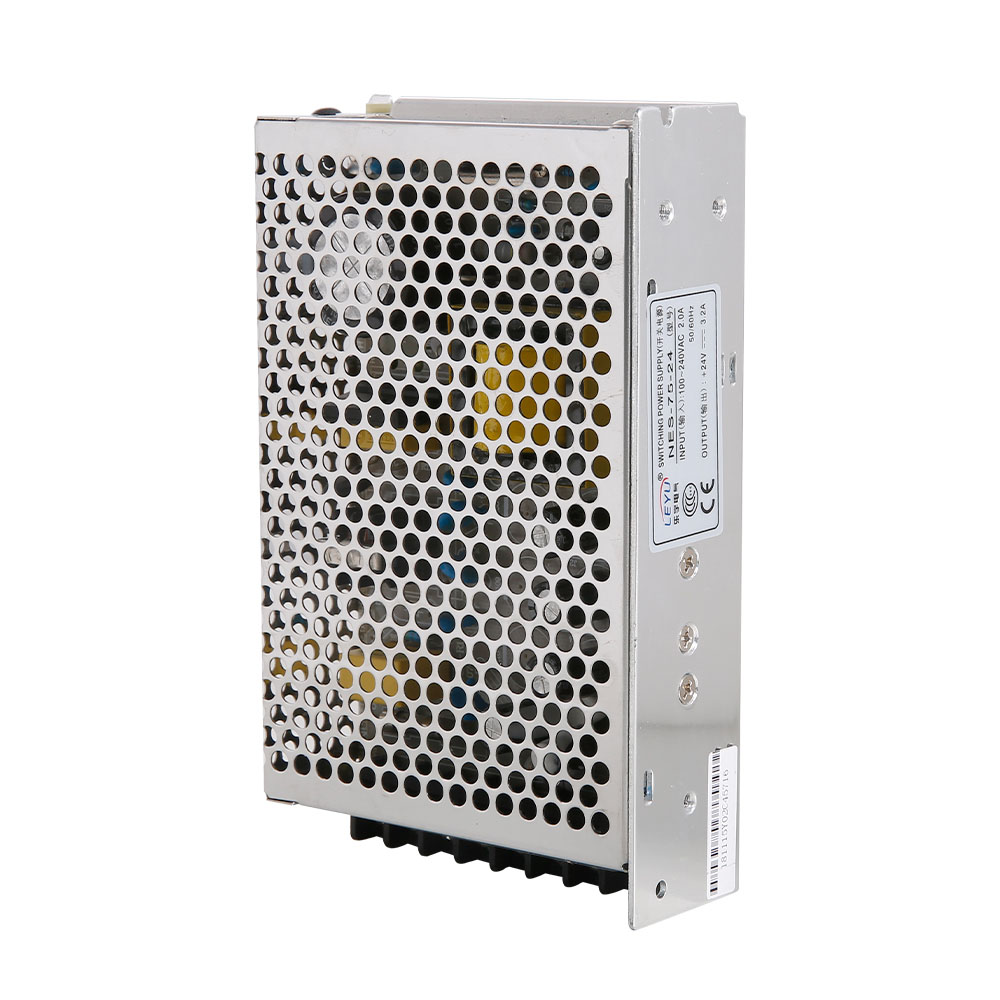

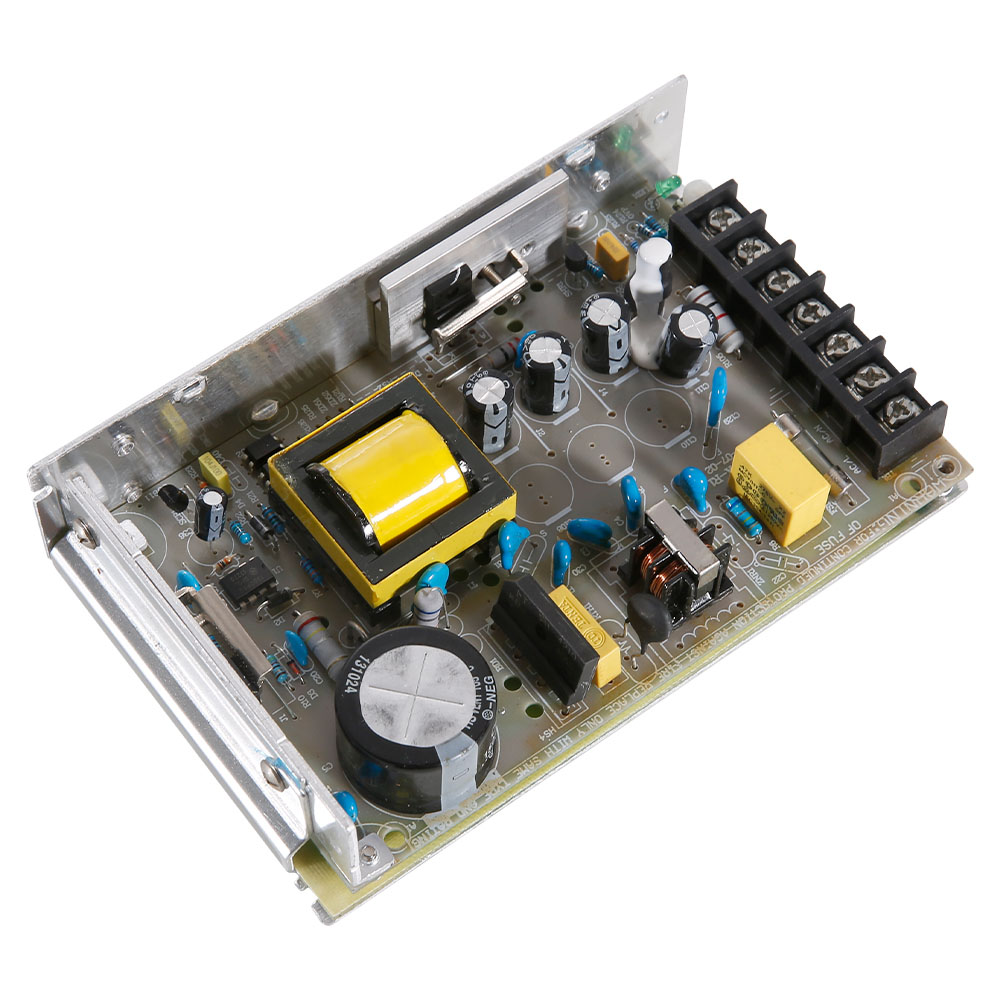

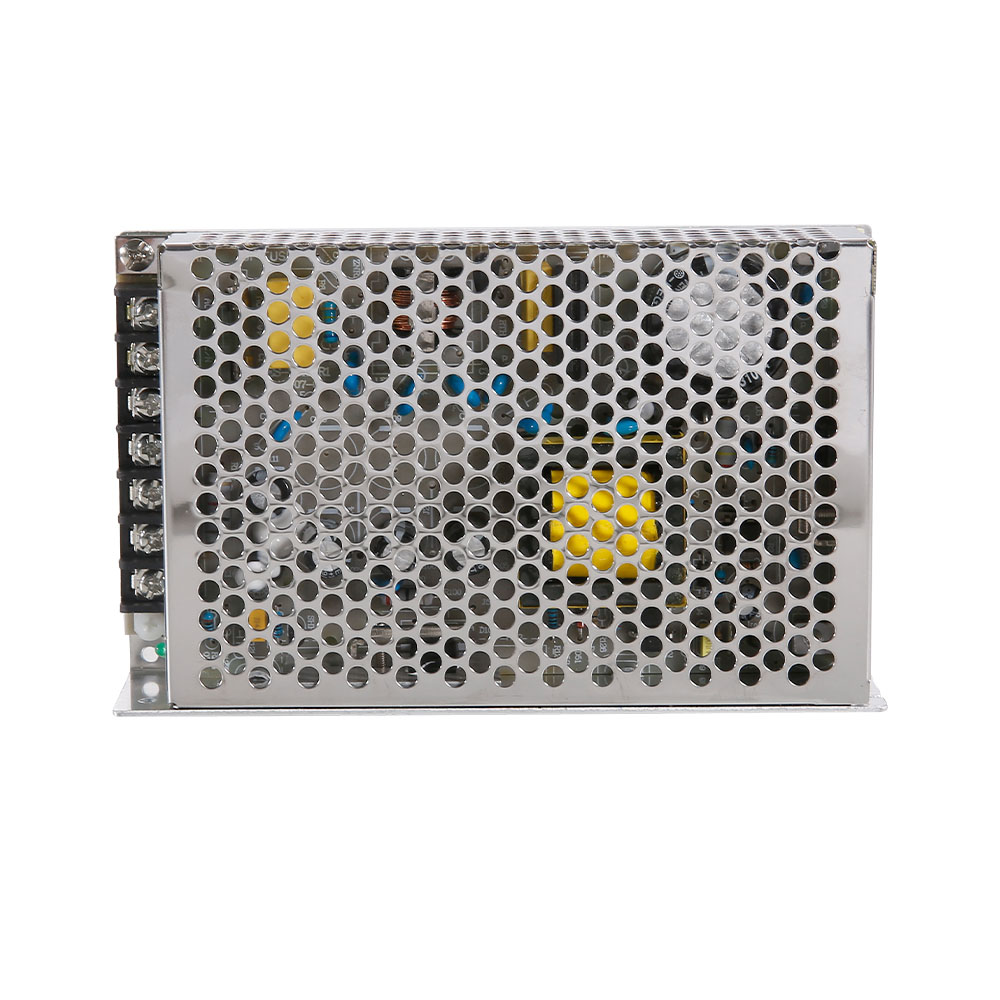

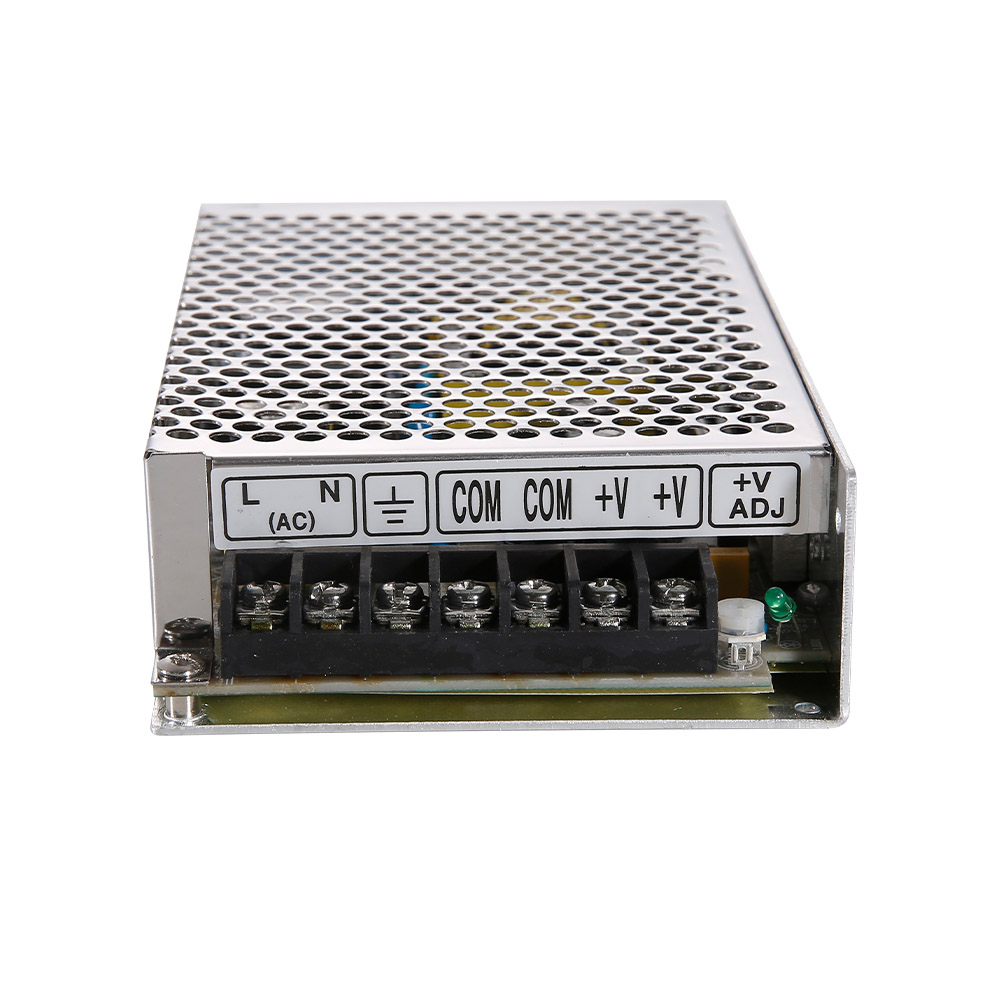

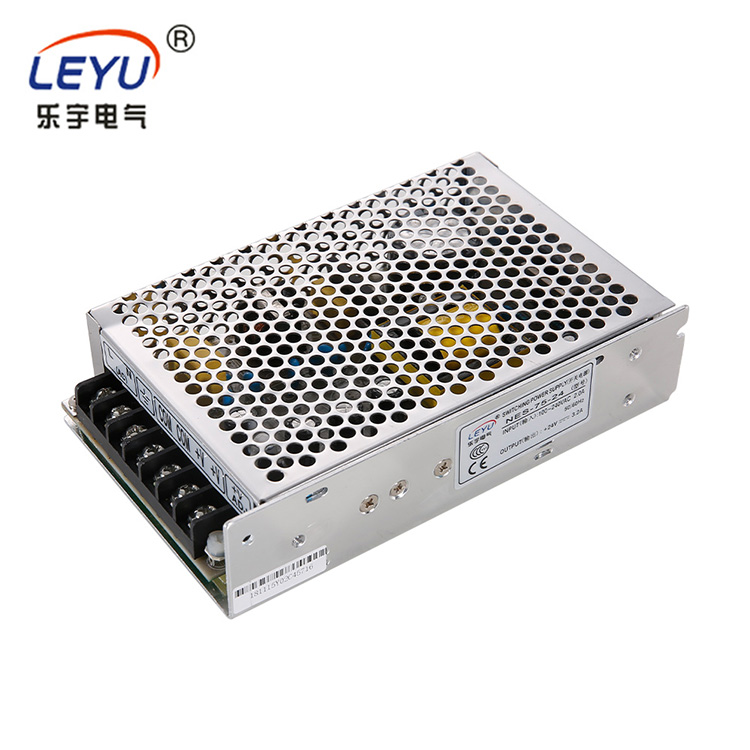

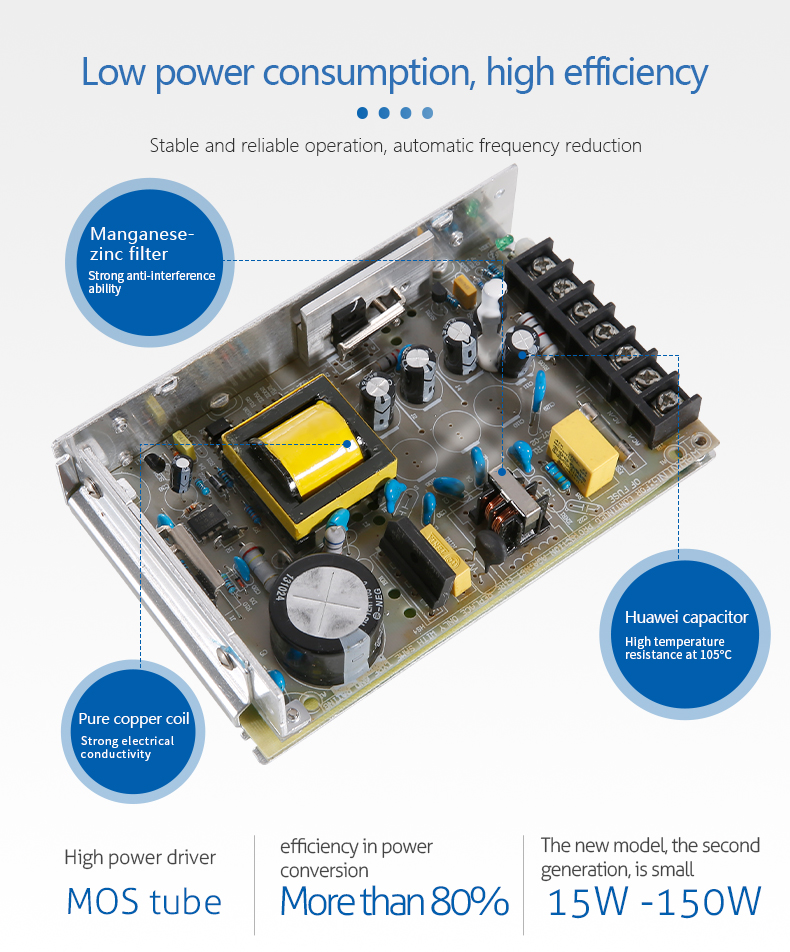

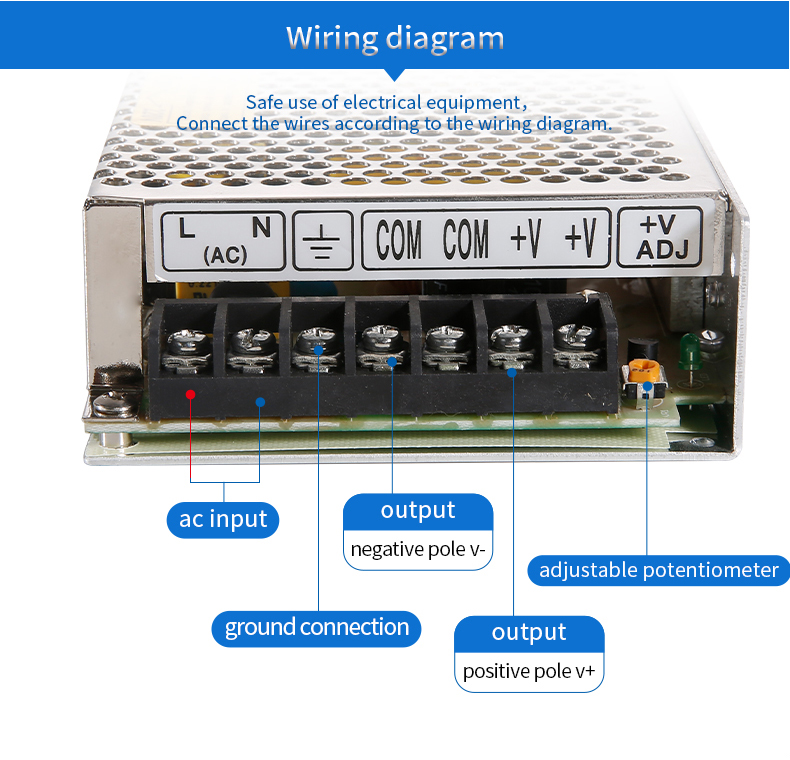

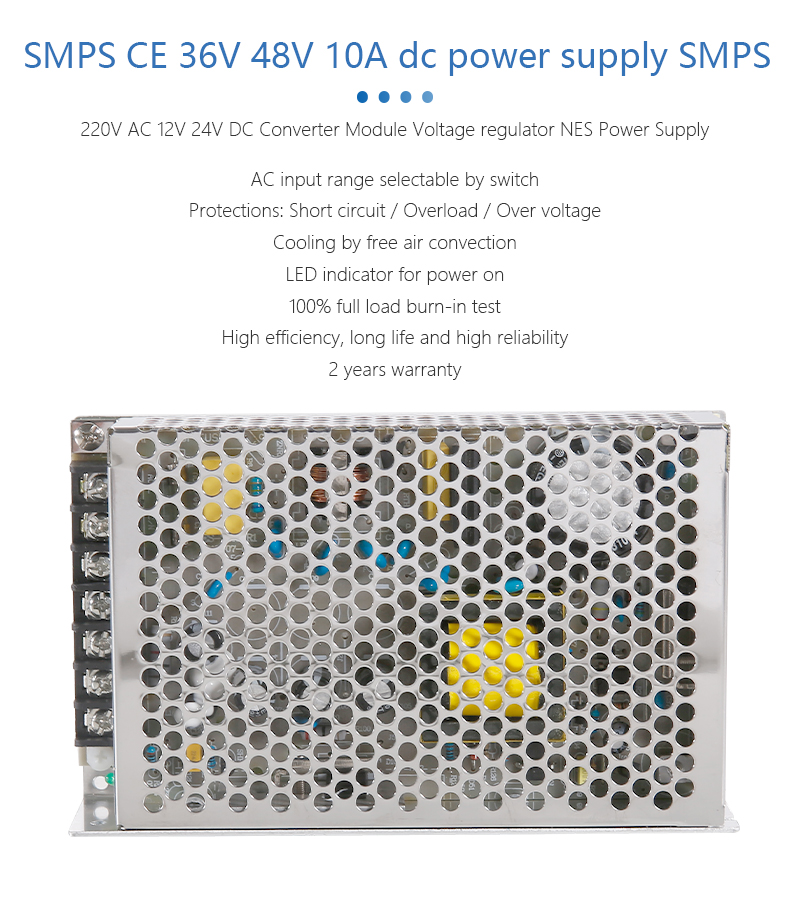

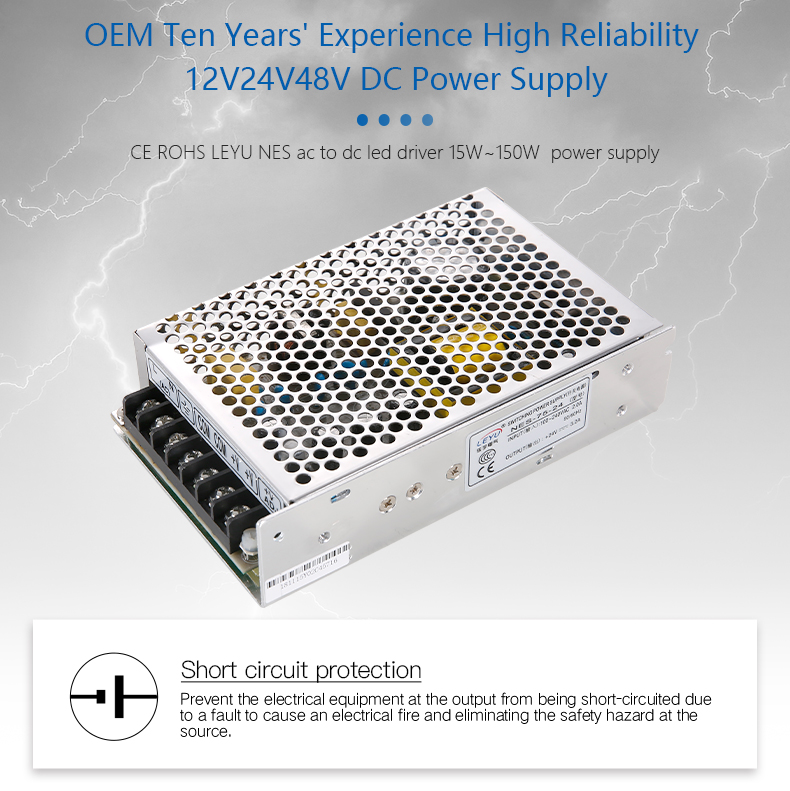

75W Single Output Switching Power Supply NES-75 series
Features:
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
2 years warranty
|
SPECIFICATION |
|
||||||
|
OUTPUT |
|
||||||
|
Model |
NES-75-5 |
NES-75-12 |
NES-75-15 |
NES-75-24 |
NES-75-48 |
||
|
DC Voltage |
5V |
12V |
15V |
24V |
48V |
||
|
Rated Current |
14A |
6.2A |
5A |
3.2A |
1.6A |
||
|
Current Range |
0 ~ 14A |
0 ~ 6.2A |
0 ~ 5A |
0 ~ 3.2A |
0 ~ 1.6A |
||
|
Rated Power |
70W |
74.4W |
75W |
76.8W |
76.8W |
||
|
Ripple & Noise |
80mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
||
|
Voltage Adj. Range |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5 ~ 16.5V |
21.6 ~ 26.4V |
43.2 ~ 52.8V |
||
|
Voltage Tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Setup, Rise Time |
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load |
||||||
|
Hold Up Time |
50ms/230VAC 10ms/115VAC at full load |
||||||
|
|
|
||||||
|
INPUT |
|
||||||
|
Voltage Range |
85 ~ 264VAC 120 ~ 370VDC |
||||||
|
Frequency Range |
47 ~ 63Hz |
||||||
|
Efficiency |
77% |
82% |
83% |
86% |
87% |
||
|
AC Current |
1.5A/115VAC 0.9A/230VAC |
||||||
|
Inrush Current |
Cold Start 45A |
||||||
|
Leakage Current |
<2mA / 240VAC |
||||||
|
|
|
||||||
|
PROTECTION |
|
||||||
|
Over Load |
105 ~ 135% |
110 ~ 150% rated output power |
|||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
Over Voltage |
5.75~6.75V |
13.8~16.2V |
17.25~20.25V |
27.6~32.4V |
55.2~64.8V |
||
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||||||
|
|
|
||||||
|
ENVIRONMENT |
|
||||||
|
Working Temp. |
-20 ~ +60℃ (Refer to “Derating Curve”) |
||||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
||||||
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
||||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 45℃) |
||||||
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||||||
|
|
|
||||||
|
SAFETY & EMC |
|
||||||
|
Safety Standards |
UL60950-1, CB(IEC60950-1),CCC GB4943 approved |
||||||
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
||||||
|
EMC Emission |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
||||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A |
||||||
|
|
|
||||||
|
OTHERS |
|
||||||
|
Dimension |
159*97*38mm (L*W*H) |
||||||
|
Weight |
0.52Kg |
||||||
|
Packing |
30pcs/Carton |
||||||
|
|
|
||||||
|
NOTE |
|
||||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||||||
