Product Detail

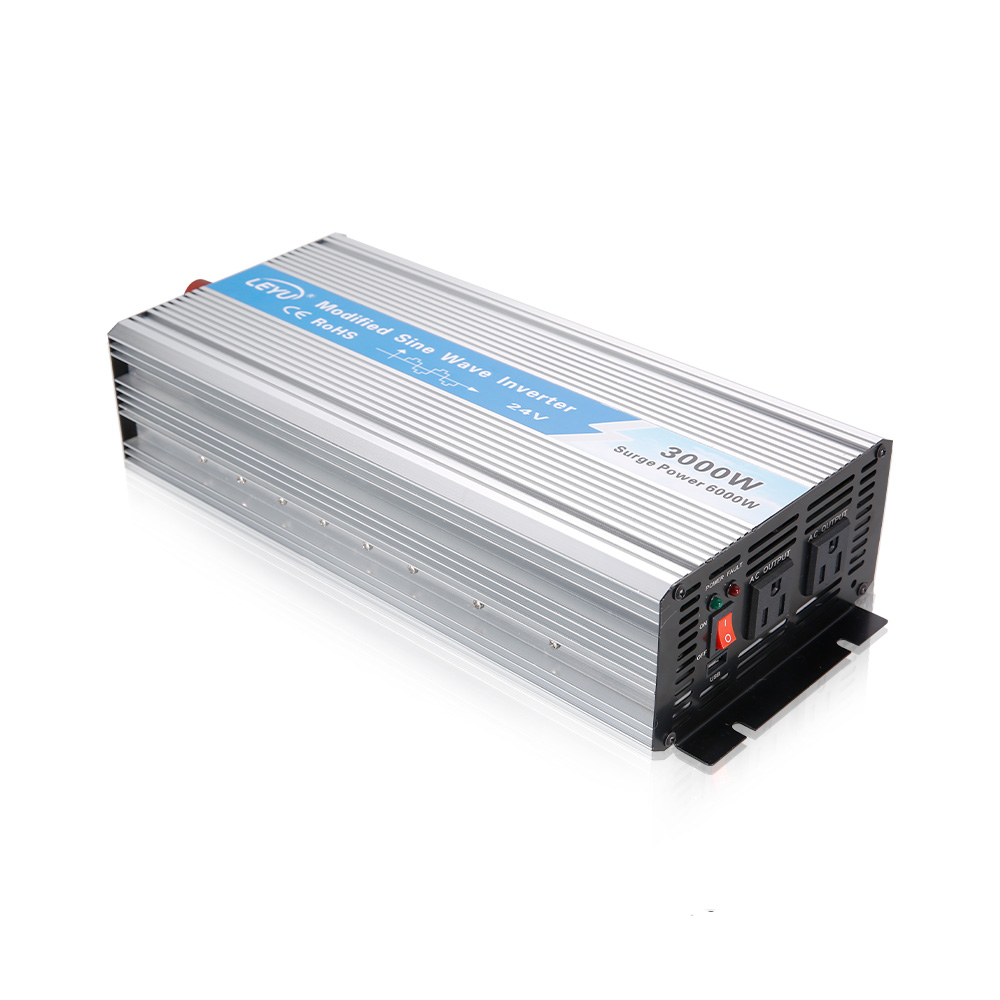

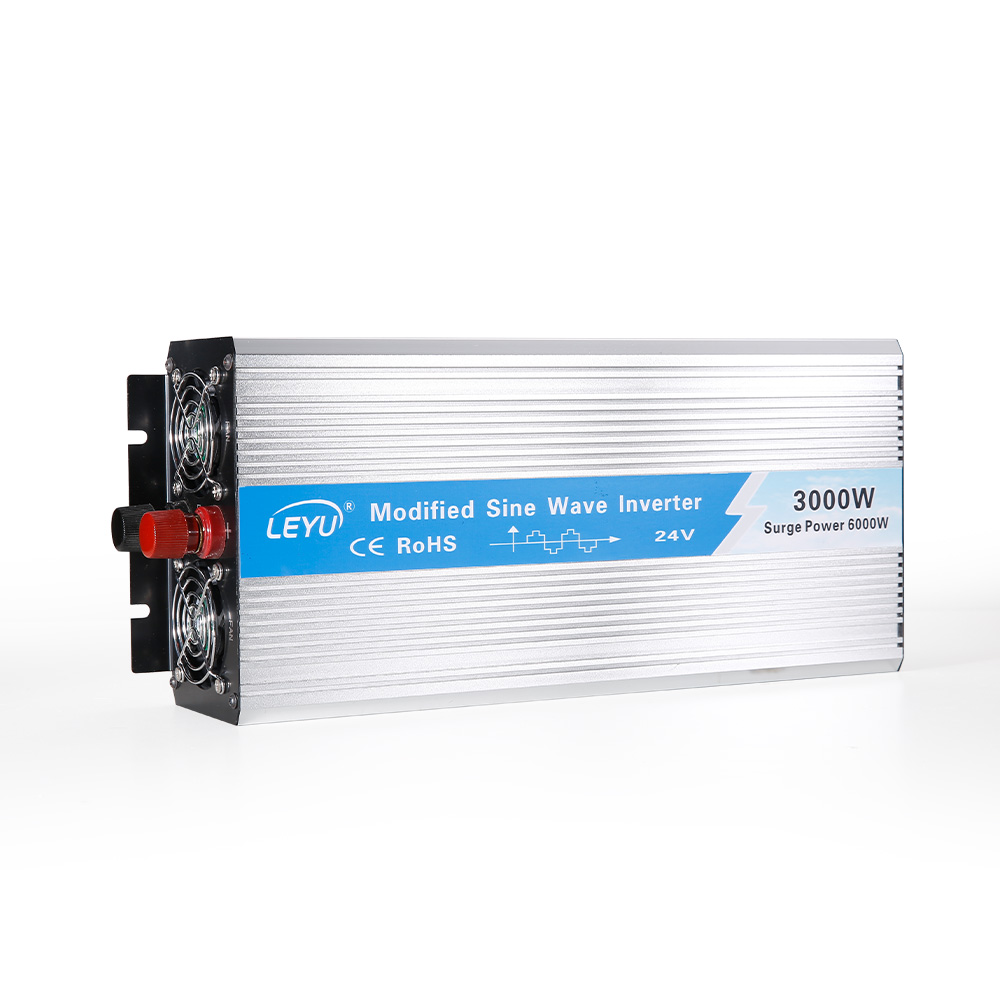

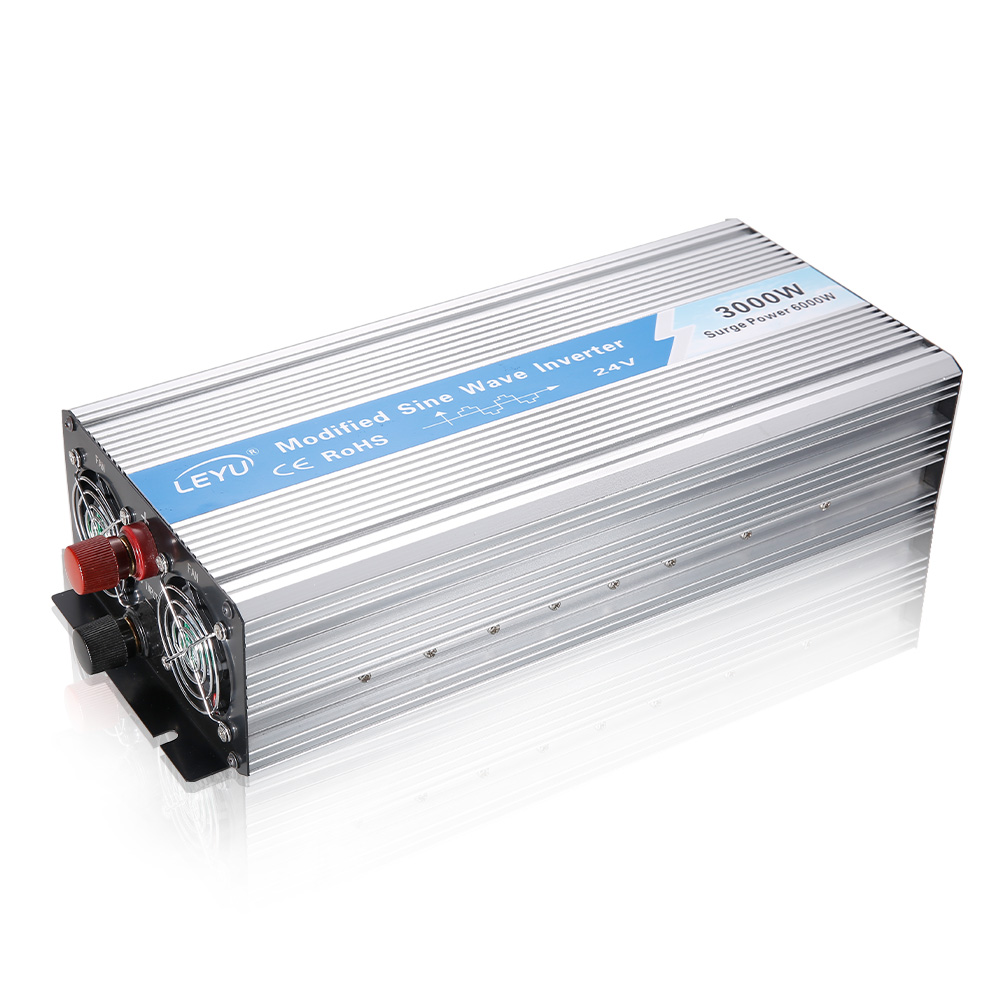

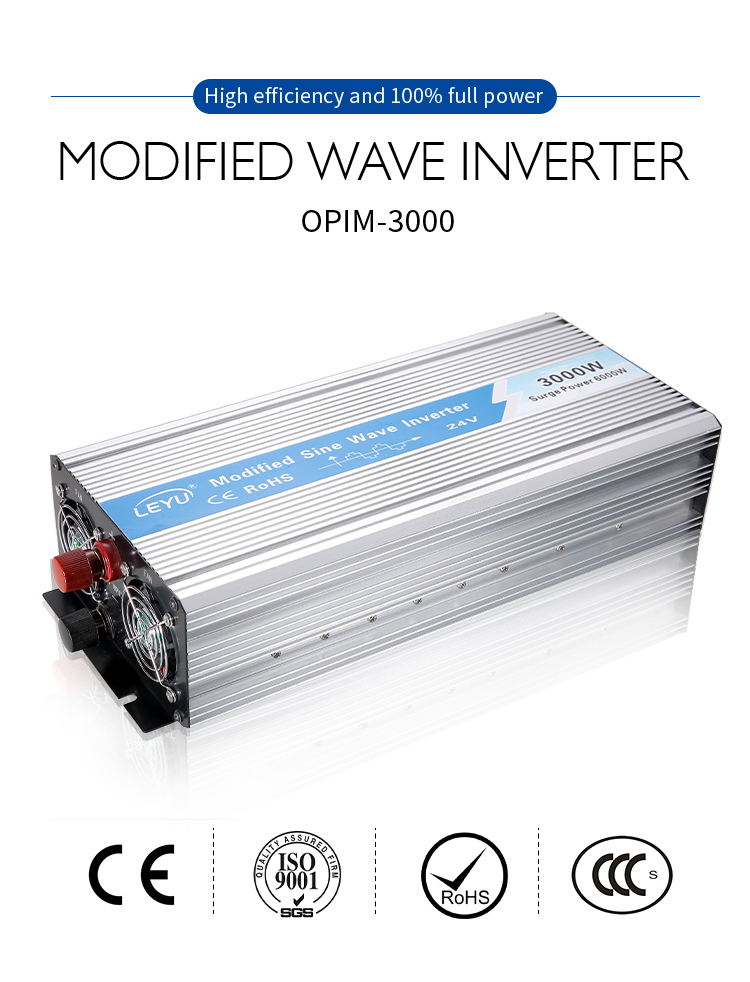

3000W Modified Sine Wave Inverter
Products Features :
·Small in size , light in weight and potable
·Easy to use and high efficiency

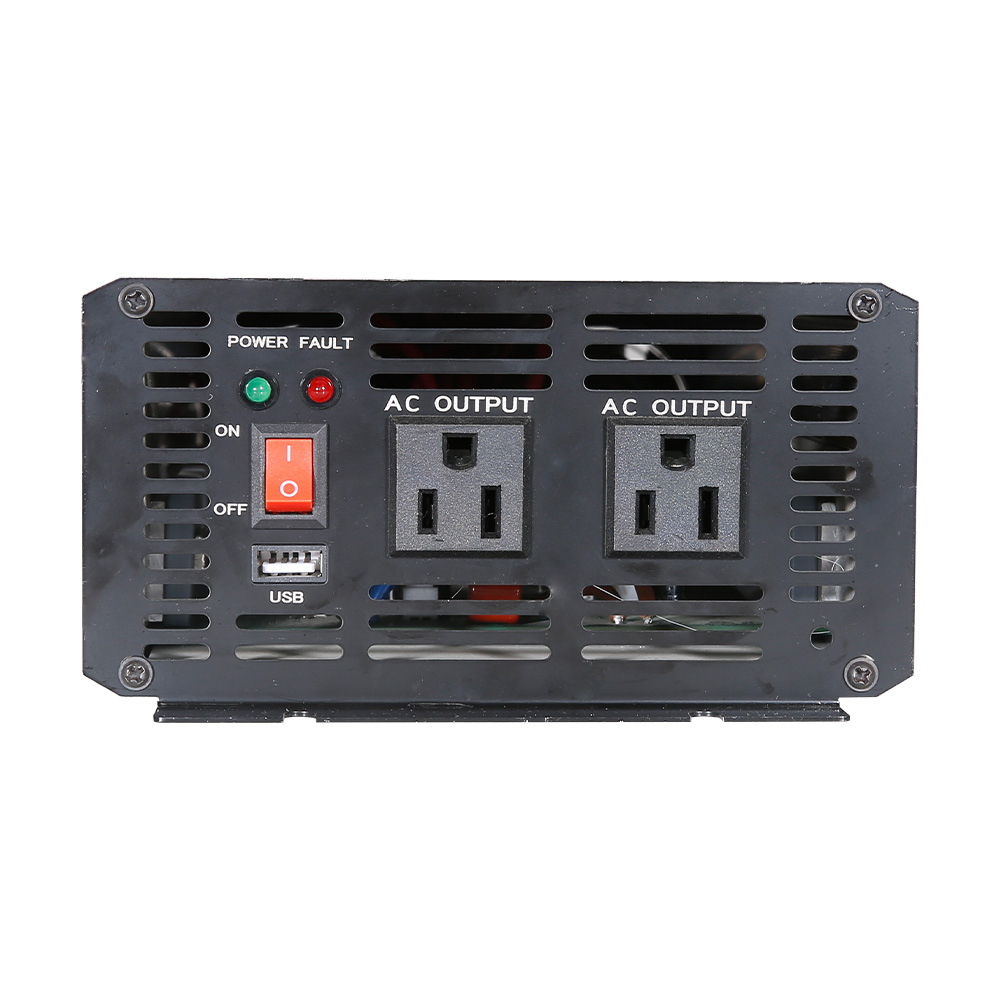

·Green LED for indicates the power on
·Input & output isolation
·Muti-protection function
·USB output port: 5V500mA
·A,B,C,C,D,E,F,G socket optional

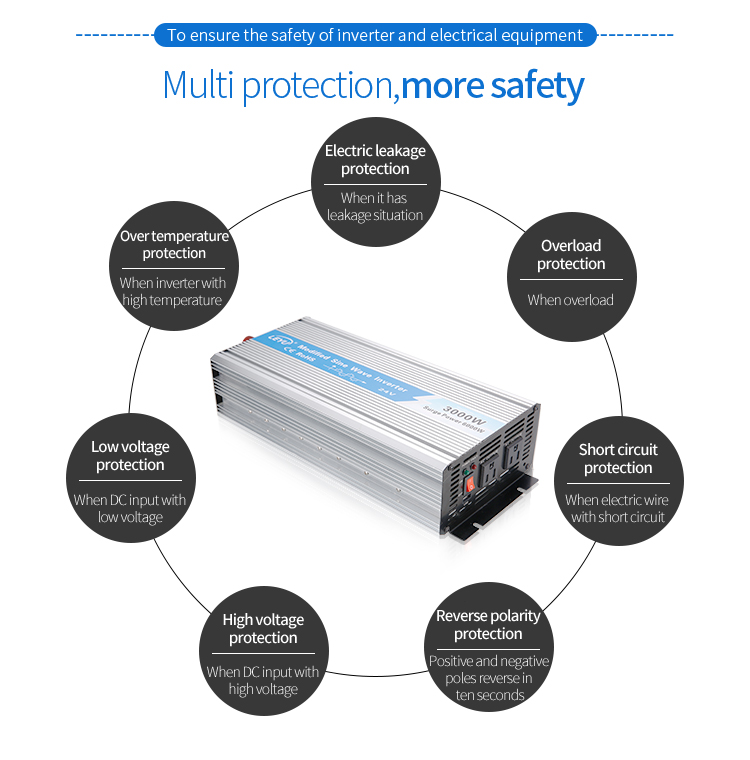

Protection Features:Short circuit/Low voltage/Over voltage/Overload/Over temperature
| Model | OPIM-3K-1 | OPIM-3K-1 | OPIM-3K-1 | OPIM-3K-2 | OPIM-3K-2 | OPIM-3K-2 |
| Rated power | 3000W | |||||
| Peak power | 6000W | |||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||
| Unload current less than | 0.8A | 0.5A | 0.2A | 0.8A | 0.5A | 0.2A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||
| Output waveform | Modified Sine Wave | |||||
| Waveform distortion | THD<3%(Linear load) | |||||
| USB port | 5V 1A | |||||

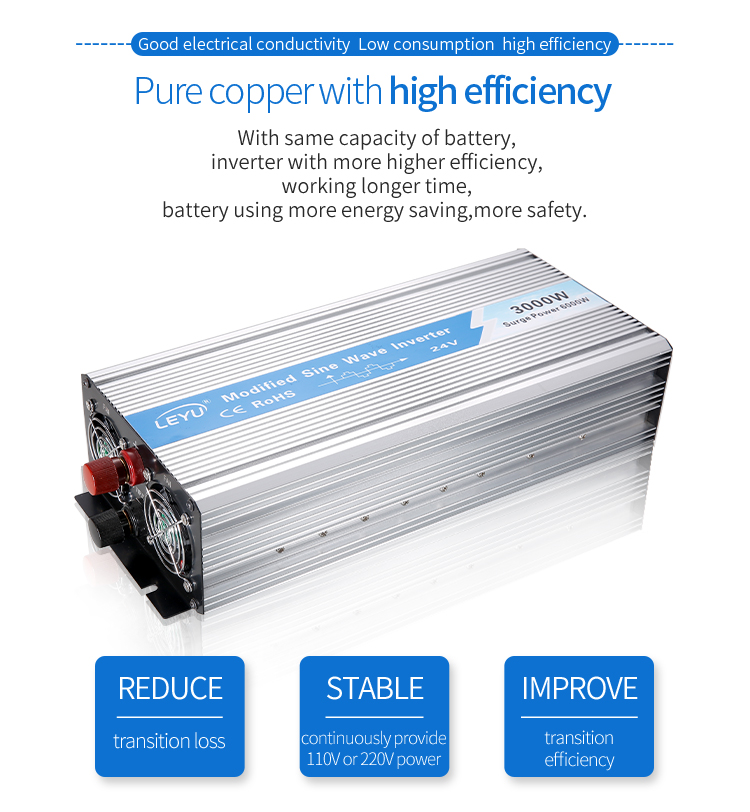

| Max.efficiency | 90% | |||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||
| Over voltage | LED Red light on, shut down | |||||
| Over load | LED Red light on, shut down | |||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||
| Short circuit | LED Red light on | |||||
| Input reverse polarity | Fuse burn-out | |||||
| Working temperature | -10°- +50° | |||||
| Storage temperature | -30°- +70° | |||||

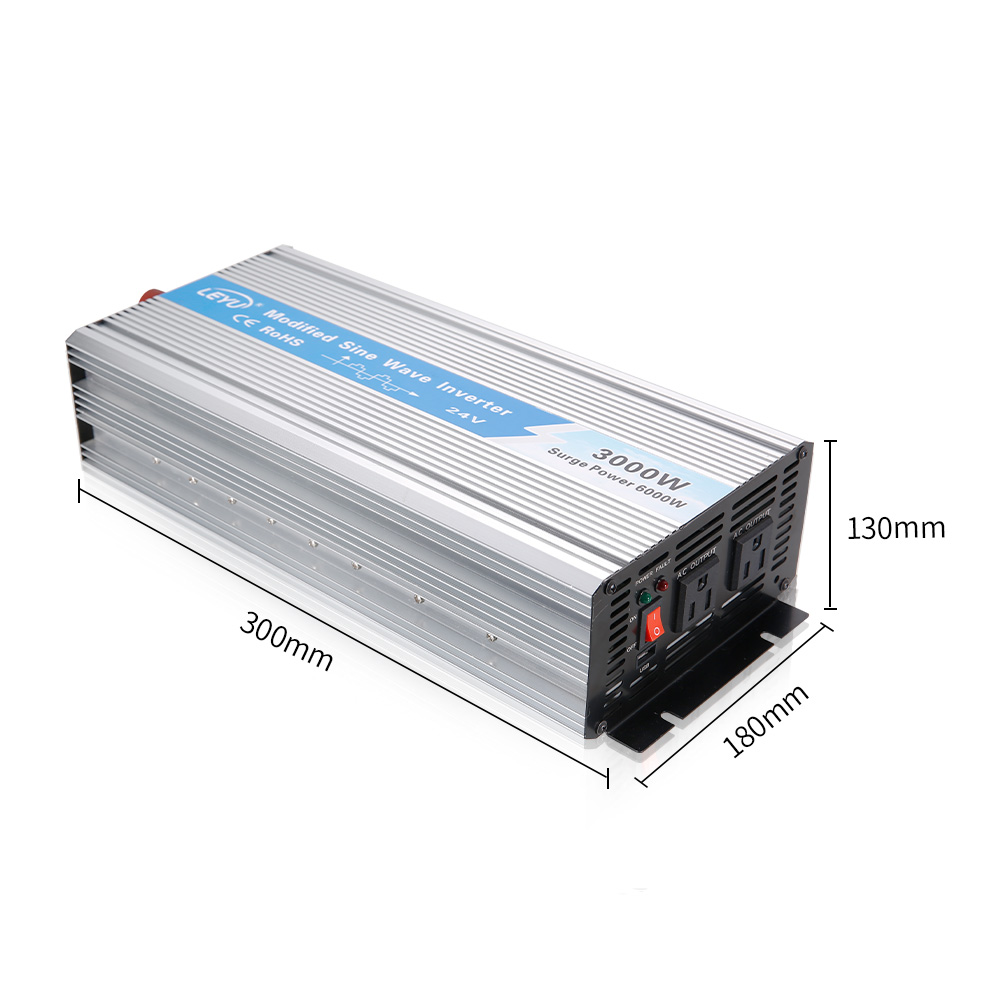

| Dimension(mm) | 405x166x85mm | |||||
| Packing(mm) | 440x225x105mm | |||||
| Net./gross weight(g) | 3340/3880g | |||||
| QTY/Ctn | 3 Pcs | |||||
| Meas./Ctn(mm) | 450x270x340mm | |||||
| Gross weight/Ctn(g) | 12040g | |||||
| Warranty | 18 months | |||||
| Configuration | Standard | |||||
| Cooling method | Intelligent air cooling | |||||
