Product Detail
|

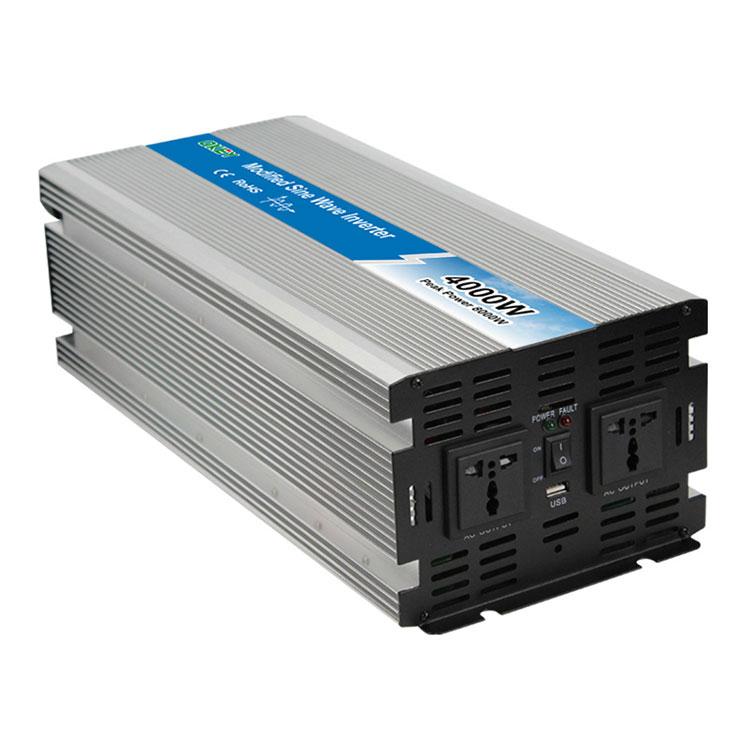

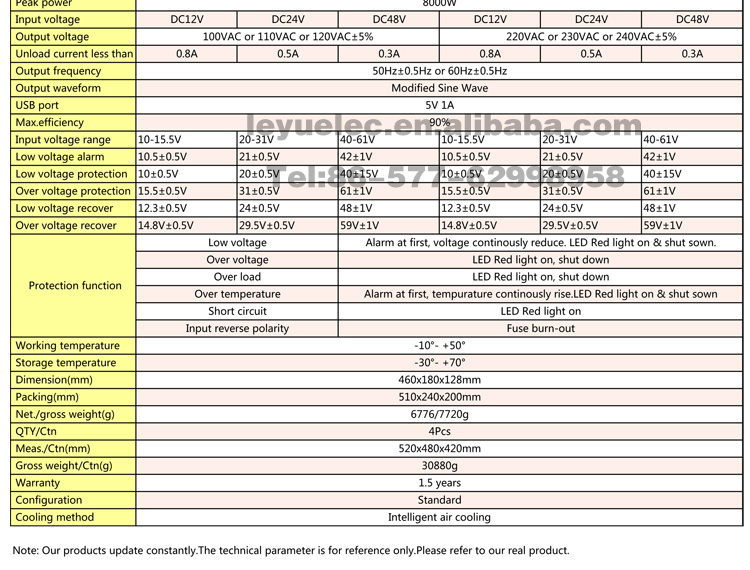

Model |
OPIM-4000-1 |
OPIM-40001 |
OPIM-4000-1 |
OPIM-4000-2 |
OPIM-4000-2 |
OPIM-4000-2 |
|
Rated power |
4000W |
|||||
|
Peak power |
8000W |
|||||
|
Input voltage |
DC12V |
DC24V |
DC48V |
DC12V |
DC24V |
DC48V |
|
Output voltage |
100VAC or 110VAC or 120VAC±5% |
220VAC or 230VAC or 240VAC±5% |
||||
|
Unload current less than |
0.8A |
0.5A |
0.3A |
0.8A |
0.5A |
0.3A |
|
Output frequency |
50Hz±0.5Hz or 60Hz±0.5Hz |
|||||
|
Output waveform |
Modified Sine Wave |
|||||
|

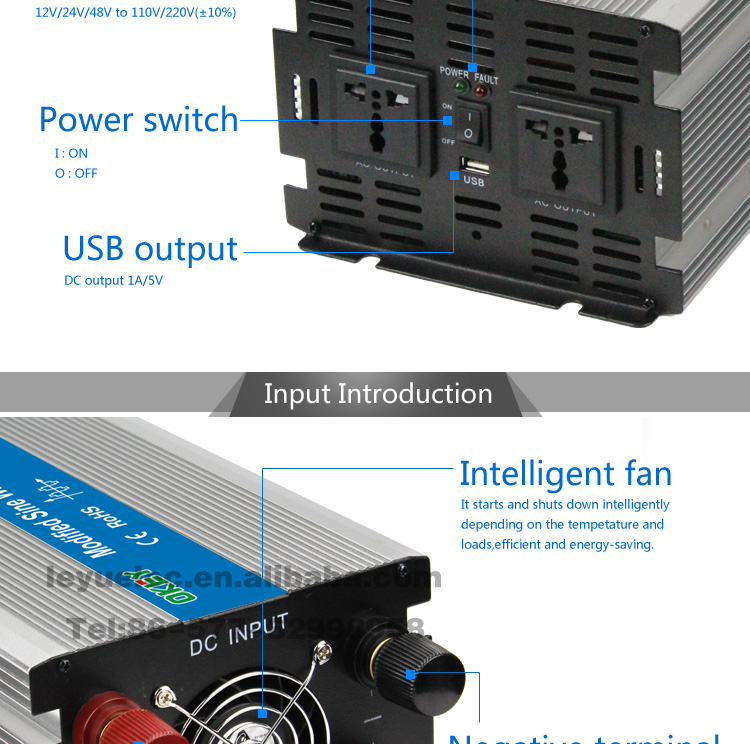

USB port |
5V 1A |
|||||
|
Max.efficiency |
90% |
|||||
|
Input voltage range |
10-15.5V |
20-31V |
40-61V |
10-15.5V |
20-31V |
40-61V |
|
Low voltage alarm |
10.5±0.5V |
21±0.5V |
42±1V |
10.5±0.5V |
21±0.5V |
42±1V |
|
Low voltage protection |
10±0.5V |
20±0.5V |
40±15V |
10±0.5V |
20±0.5V |
40±15V |
|
Over voltage protection |
15.5±0.5V |
31±0.5V |
61±1V |
15.5±0.5V |
31±0.5V |
61±1V |
|
Low voltage recover |
12.3±0.5V |
24±0.5V |
48±1V |
12.3±0.5V |
24±0.5V |
48±1V |
|
Over voltage recover |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
|

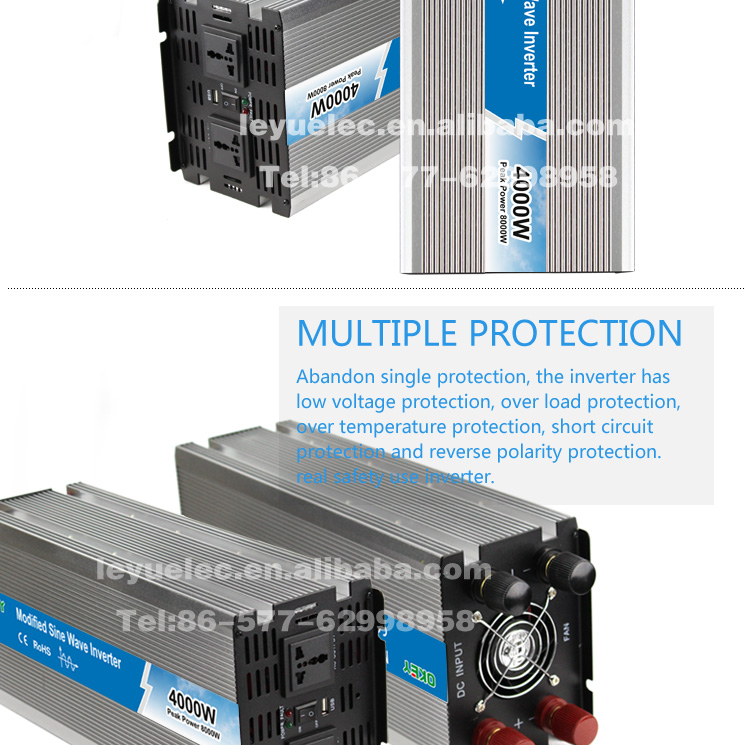

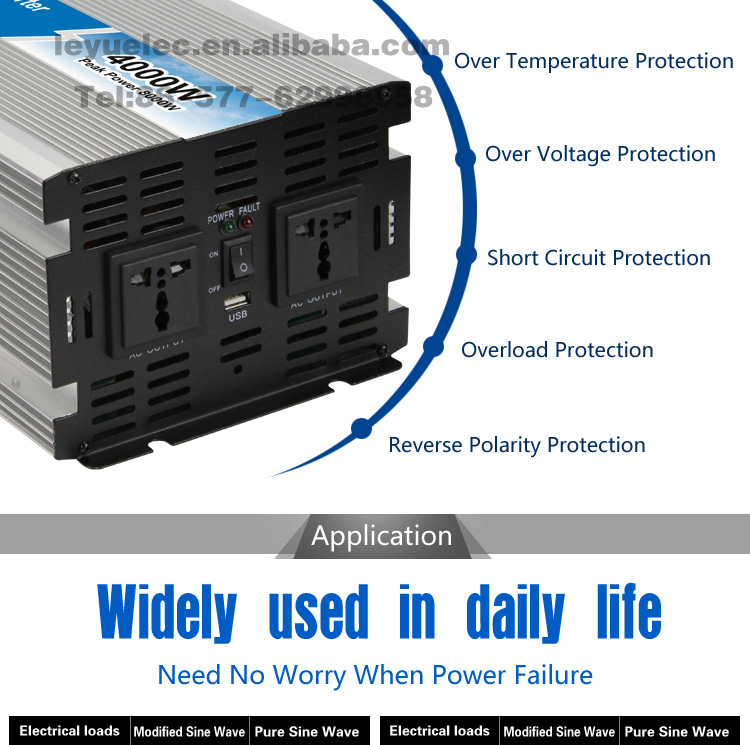

Protection function |
Low voltage |
Alarm at first, voltage continously reduce. LED Red light on & shut sown. |
||||
|
Over voltage |
LED Red light on, shut down |
|||||
|
Over load |
LED Red light on, shut down |
|||||
|
Over temperature |
Alarm at first, tempurature continously rise.LED Red light on & shut sown |
|||||
|
Short circuit |
LED Red light on |
|||||
|
Input reverse polarity |
Fuse burn-out |
|||||
|
Working temperature |
-10°- +50° |
|||||
|
Storage temperature |
-30°- +70° |
|||||
|

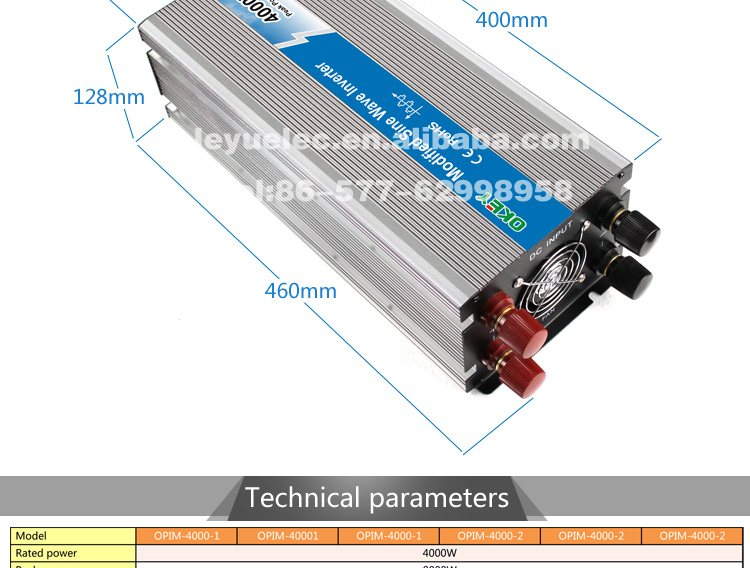

Dimension(mm) |
460x180x128mm |
|||||
|
Packing(mm) |
510x240x200mm |
|||||
|
Net./gross weight(g) |
6776/7720g |
|||||
|
QTY/Ctn |
4Pcs |
|||||
|
Meas./Ctn(mm) |
520x480x420mm |
|||||
|
Gross weight/Ctn(g) |
30880g |
|||||
|
Warranty |
1.5 years |
|||||
|
Configuration |
Standard |
|||||
|
Cooling method |
Intelligent air cooling |
|||||
|
|
|
|
|
|
|
|
|
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. |
||||||
