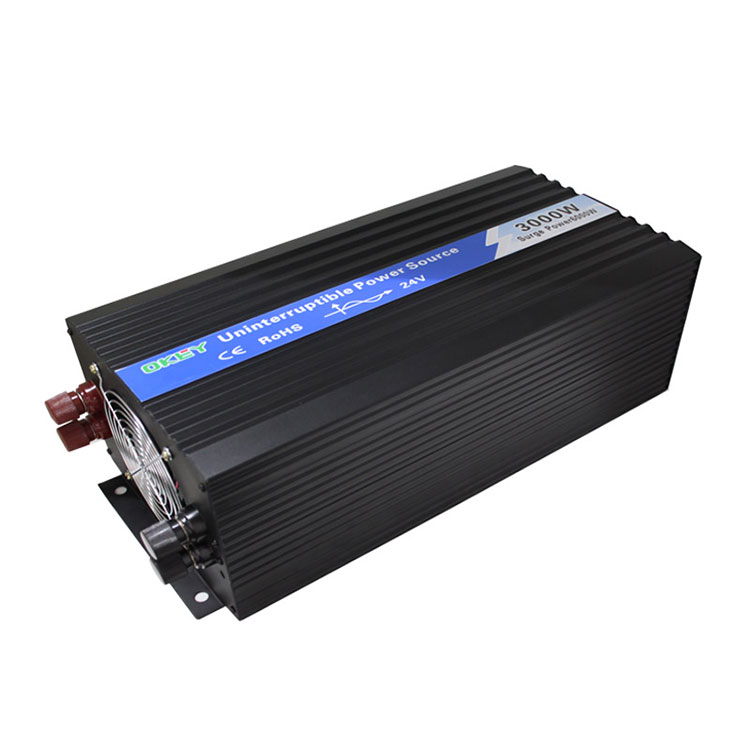

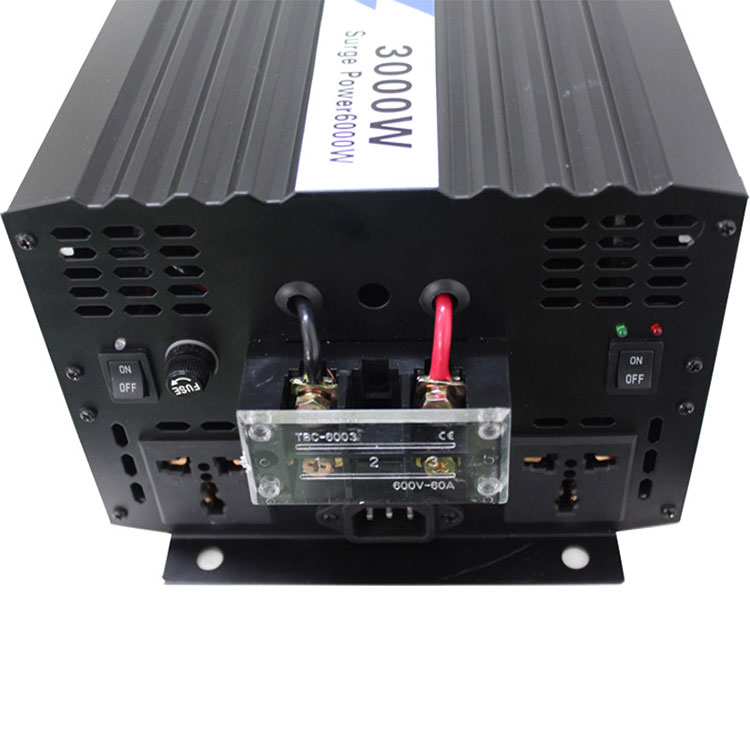

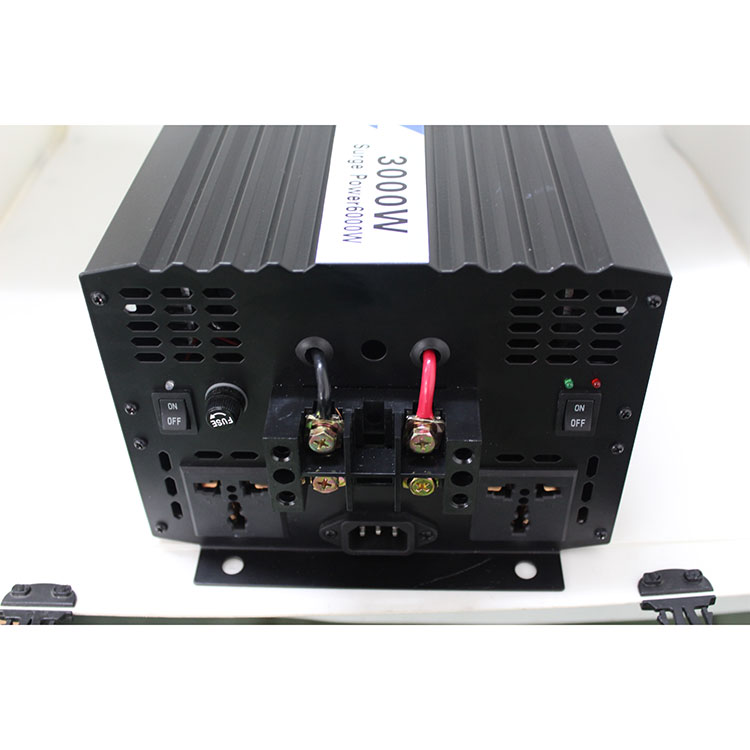

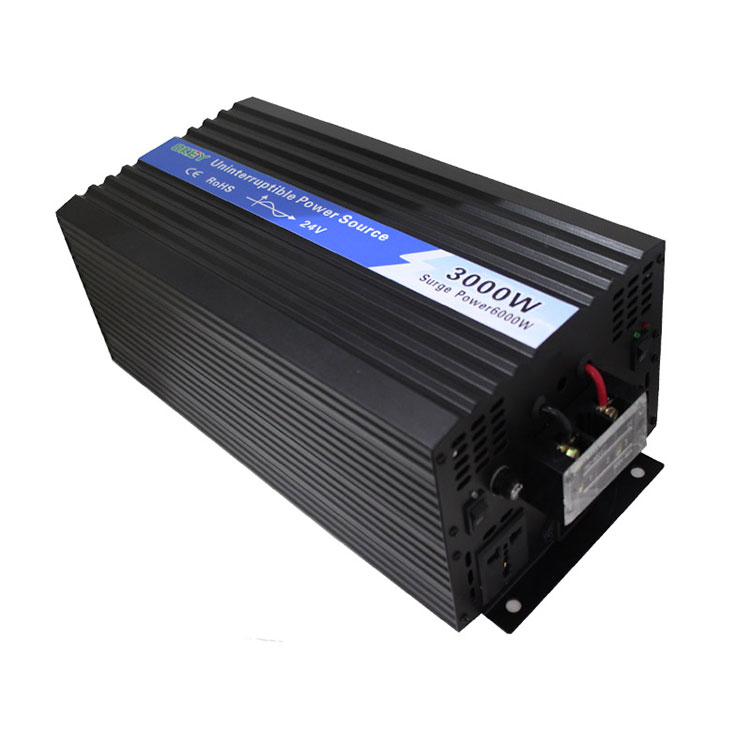

OPIP-3000C Inverter
With Charger 3000W Technical Parameters
|
|
Model
|
OPIP-3000C-A
|
OPIP-3000C-A
|
OPIP-3000C-B
|
OPIP-3000C-B
|
|
Rated power
|
3000W
|
|
Peak power
|
6000W
|
|
Input voltage
|
DC12V
|
DC24V
|
DC12V
|
DC24V
|
|
Output voltage
|
100VAC or 110VAC or
120VAC±5%
|
220VAC or 230VAC or 240VAC±5%
|
|
Unload current less than
|
1.3A
|
0.8A
|
1.3A
|
0.8A
|
|
Output frequency
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
|
Output waveform
|
Pure Sine Wave
|
|
Waveform distortion
|
THD＜3%(Linear load)
|
|
USB port
|
5V 1A
|
|
Max.efficiency
|
90%
|
|
Input current
|
15A
|
|
Input voltage range
|
10-15.5V
|
20-31V
|
10-15.5V
|
20-31V
|
|
Low voltage alarm
|
10.5±0.5V
|
21±0.5V
|
10.5±0.5V
|
21±0.5V
|
|
Low voltage protection
|
10±0.5V
|
20±0.5V
|
10±0.5V
|
20±0.5V
|
|
Over voltage protection
|
15.5±0.5V
|
31±0.5V
|
15.5±0.5V
|
31±0.5V
|
|
Low voltage recover
|
13±0.5V
|
24±0.5V
|
13±0.5V
|
24±0.5V
|
|
Over voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
14.8V±0.5V
|
29.5V±0.5V
|
|
Protection function
|
Low voltage
|
Alarm at
first, voltage continously reduce. LED Red light on & shut sown.
|
|
Over voltage
|
LED Red light
on, shut down
|
|
Over load
|
LED Red light
on, shut down
|
|
Over temperature
|
Alarm at
first, tempurature continously rise.LED Red light on & shut sown
|
|
Short circuit
|
LED Red light
on
|
|
Input reverse polarity
|
Fuse burn-out
|
|
Working temperature
|
-10°- +50°
|
|
Storage temperature
|
-30°- +70°
|
|
Dimension(mm)
|
400x180x130mm
|
|
Packing(mm)
|
450x245x195mm
|
|
Net./gross weight(g)
|
10.5kg/12kg
|
|
QTY/Ctn
|
4 Pcs
|
|
Meas./Ctn(mm)
|
500x405x425mm
|
|
Gross weight/Ctn(g)
|
48kg
|
|
Warranty
|
18 months
|
|
Configuration
|
Standard
|
|
Cooling method
|
Intelligent air cooling
|
Note: Our products update constantly.The technical parameter is
for reference only.Please refer to our real product.
|
