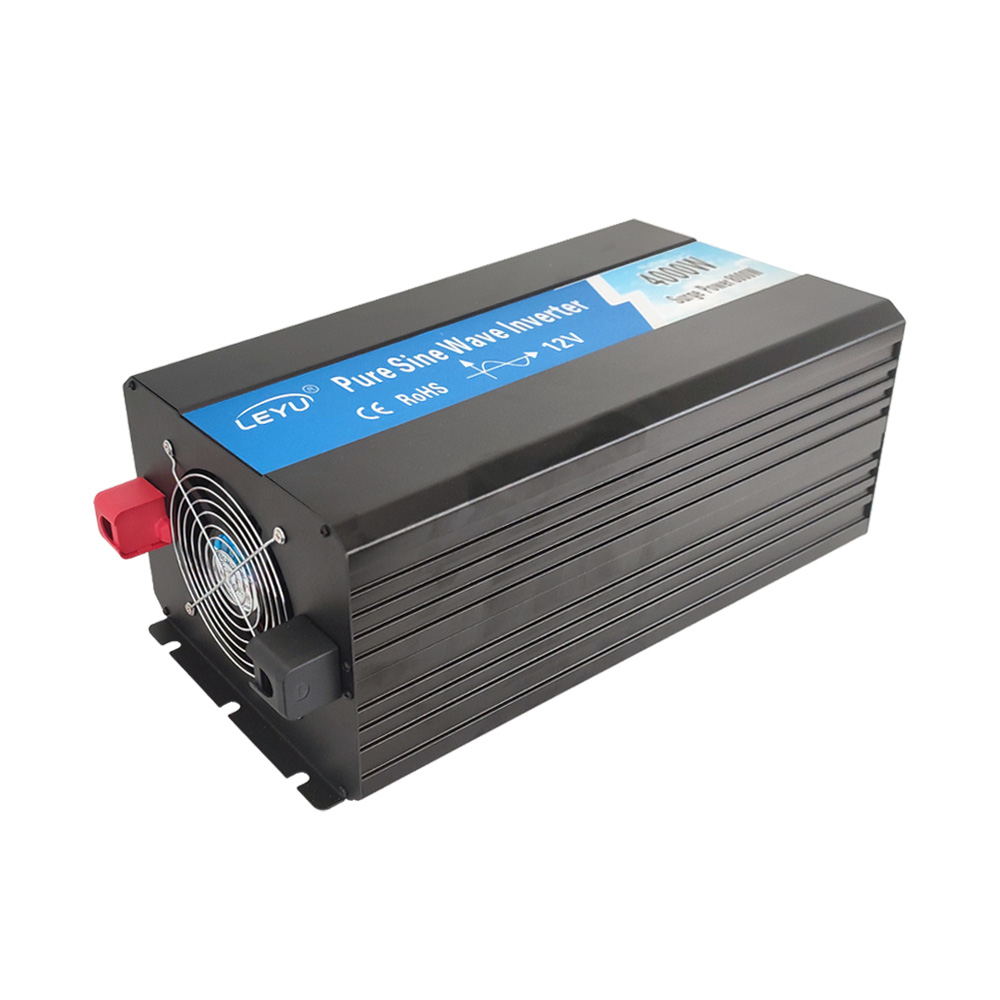

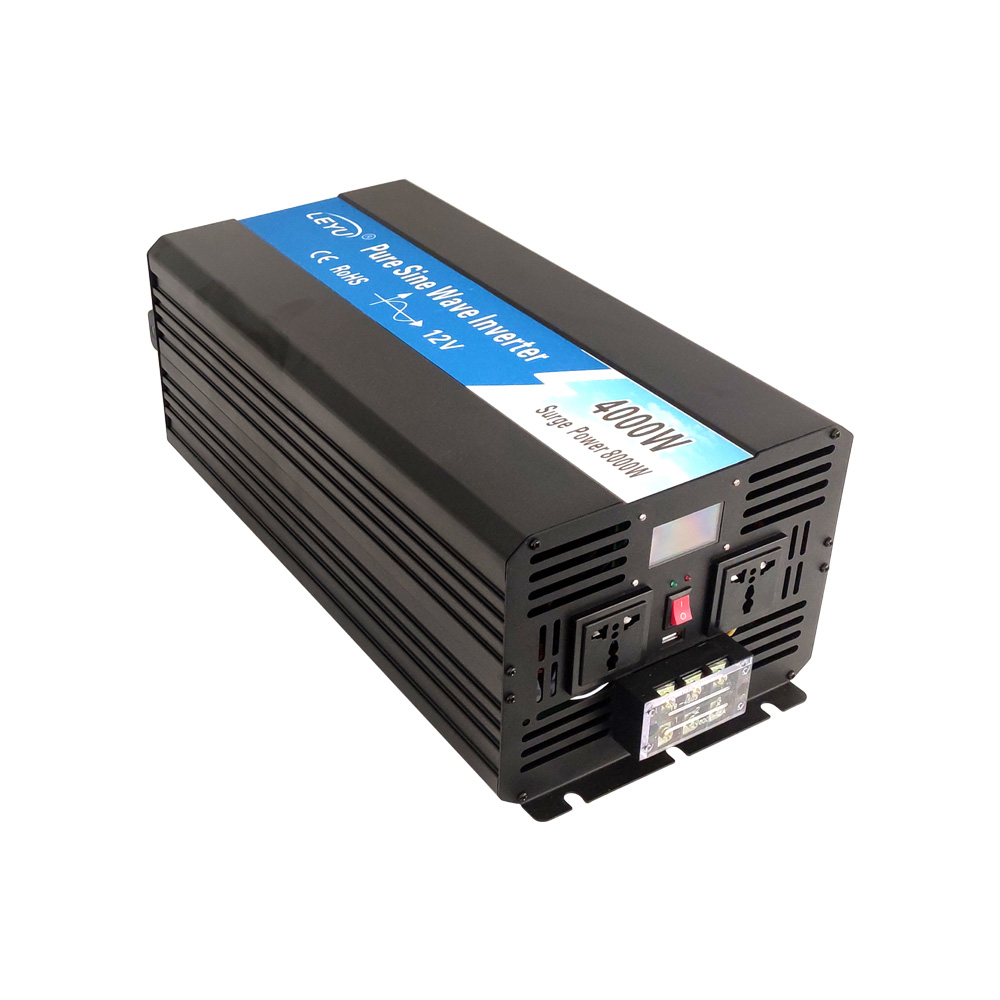

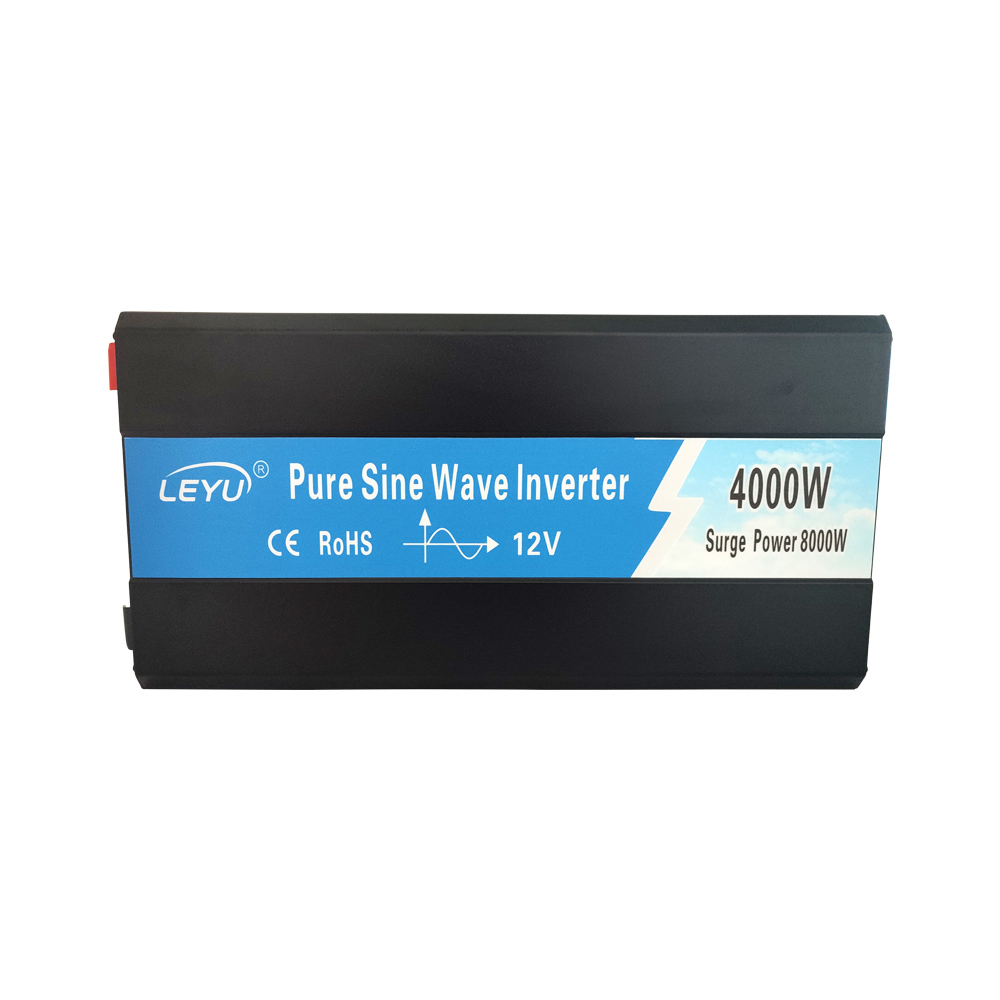

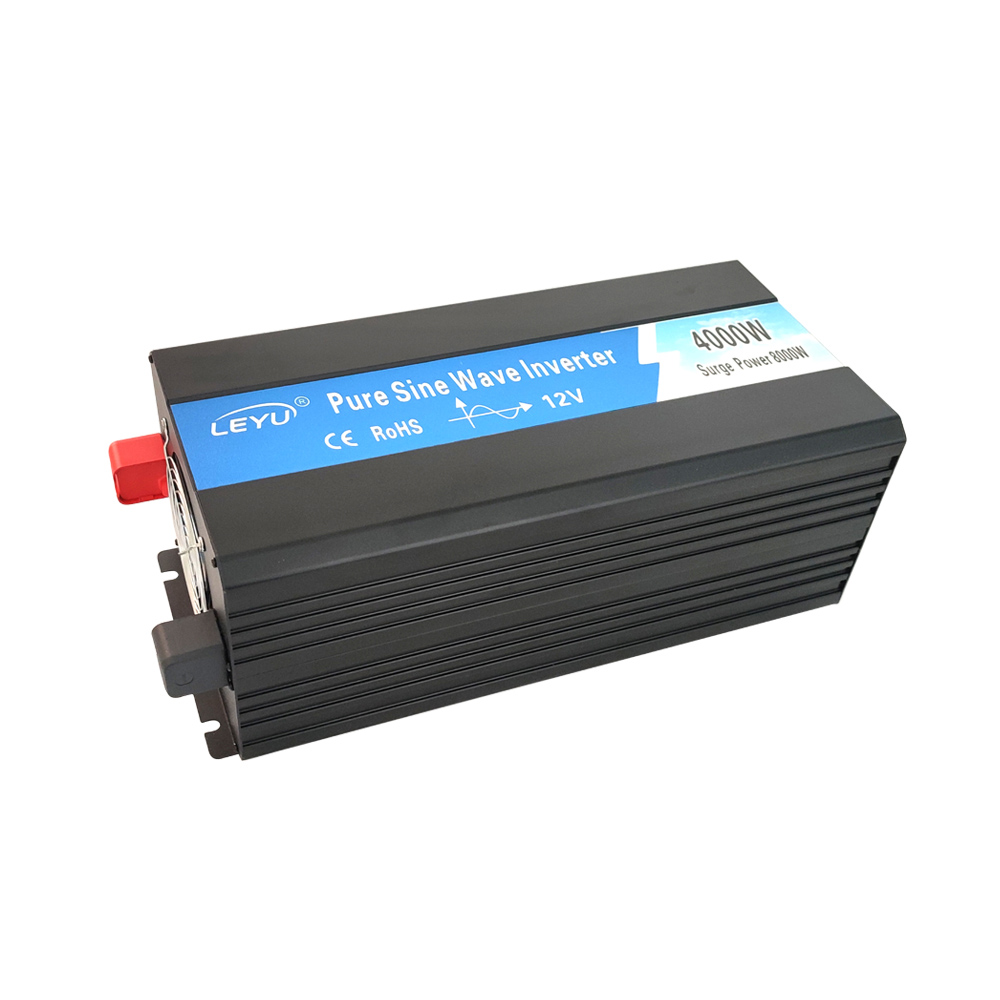

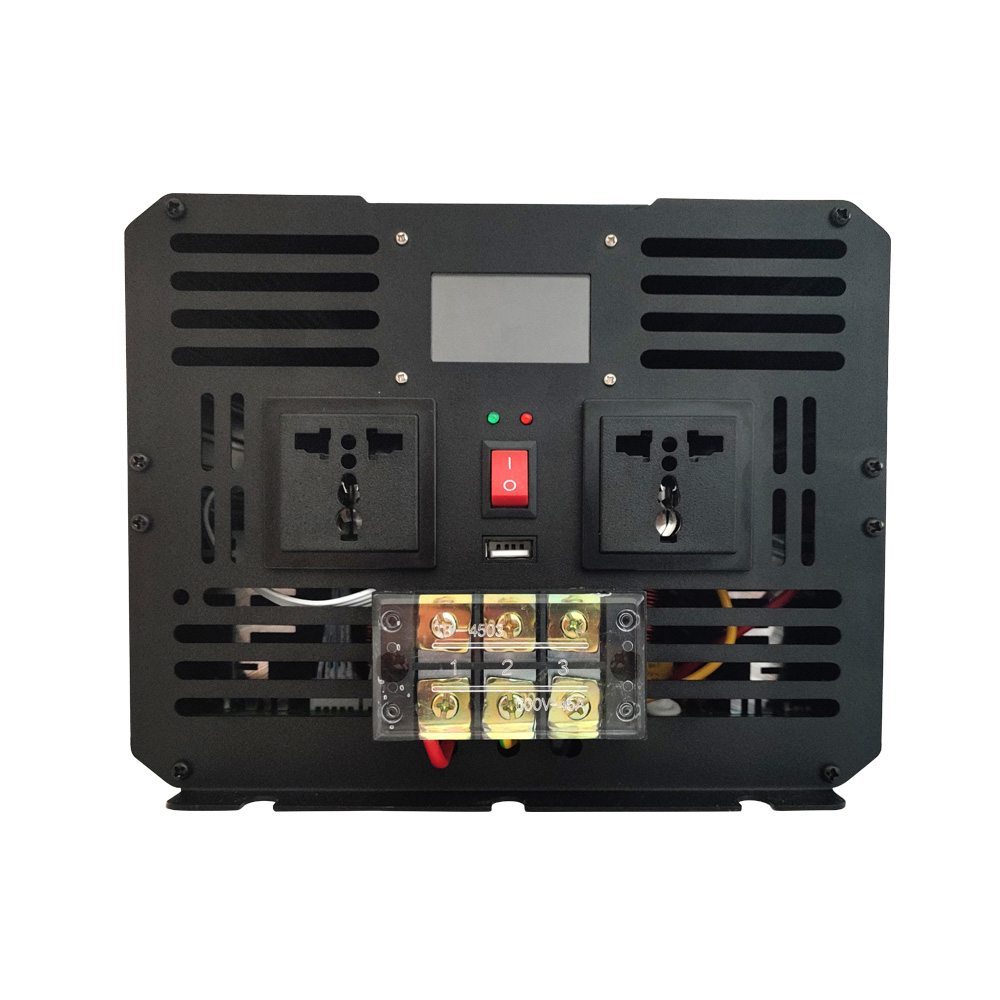

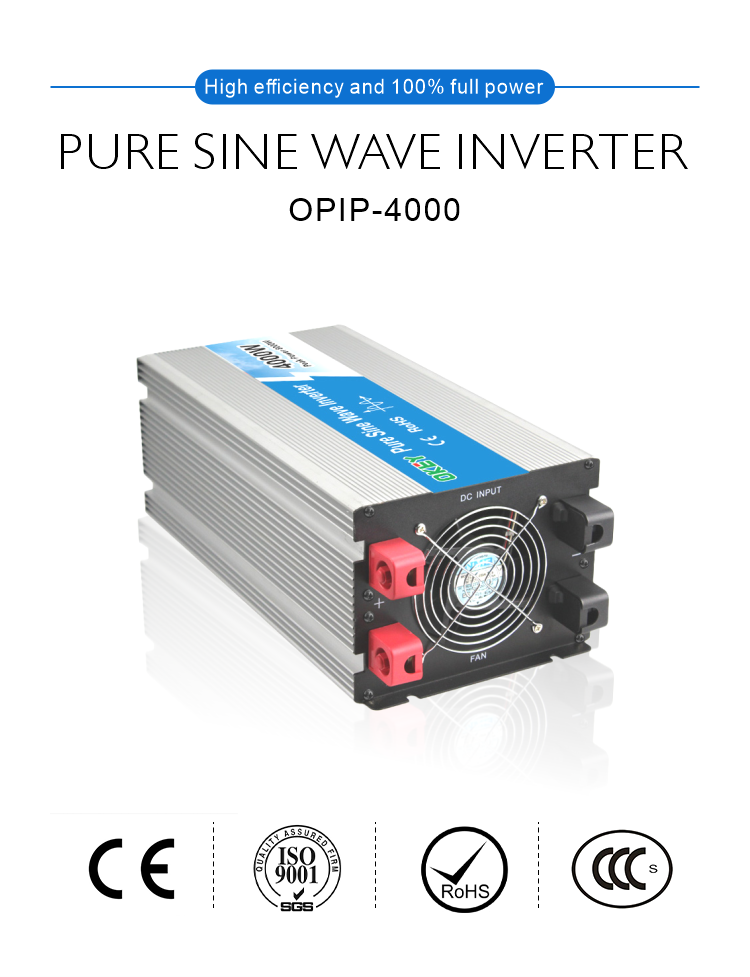

4000W pure sine wave inverter
Product Features :
High transform efficiency 、fast start；
Pure sine wave output waveform；
Softstart function；
Strong adaptability and stability ；
With automatic over-current and output short circuit protection to avoid damage the equipment；

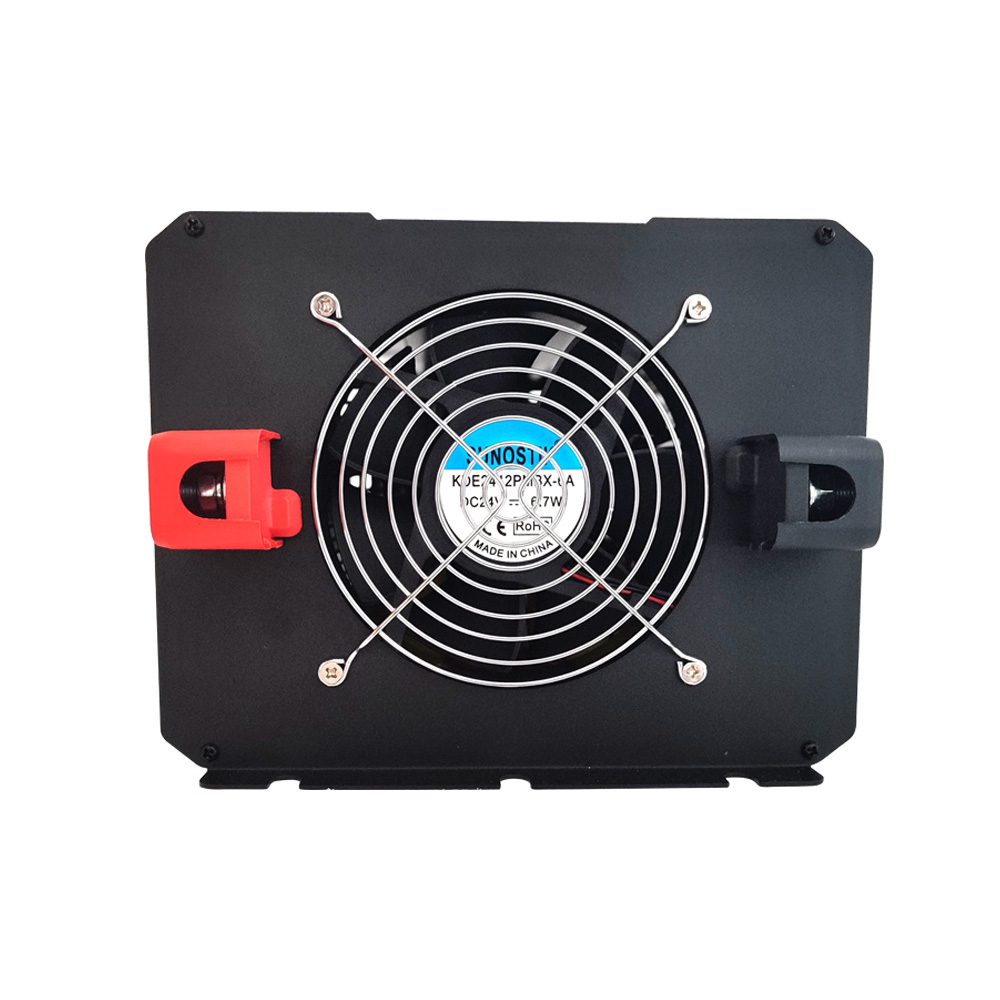

Temperature controlled fan,safe&efficient；
Safe and reliable with built in fuse.
18 months warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc；
output voltage such as 120v, 130v, 200V,240v, etc；Many kinds of sockets are available).

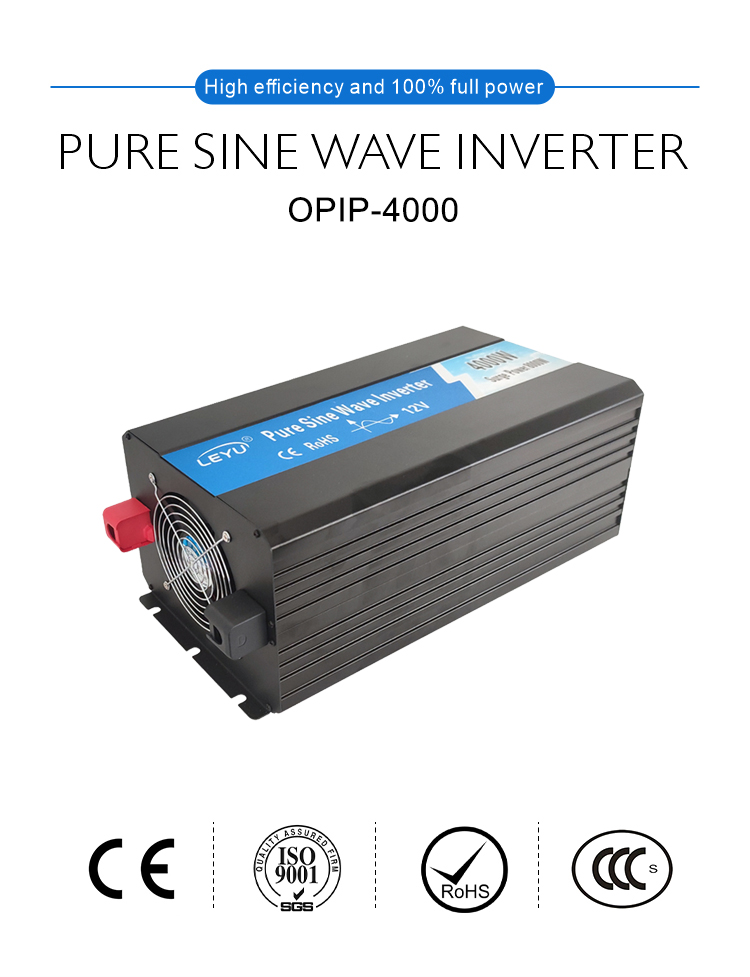

Pure sine wave 4000W technical parameters
Machine model
OPIP-4000W-12V
OPIP-4000W-24V
OPIP-4000W-48V
Output power
4000W
Peak power
8000W
Input voltage (range)
DC12V（9.5-15.5V）
DC24V（19-31V）
DC48V（40-61V）
Output voltage (single choice)
（100vAC/110vAC/120vAC/220vAC/230vAC/240vAC）±5%
No load current
≤1.5A
≤1.2A
≤0.8A
Output frequency
50Hz or 60Hz
Output waveform
Pure sine wave
THD
THD≤3%(Pure resistive load)
USB
QC3.0 18 W
No
Output efficiency
≥85%

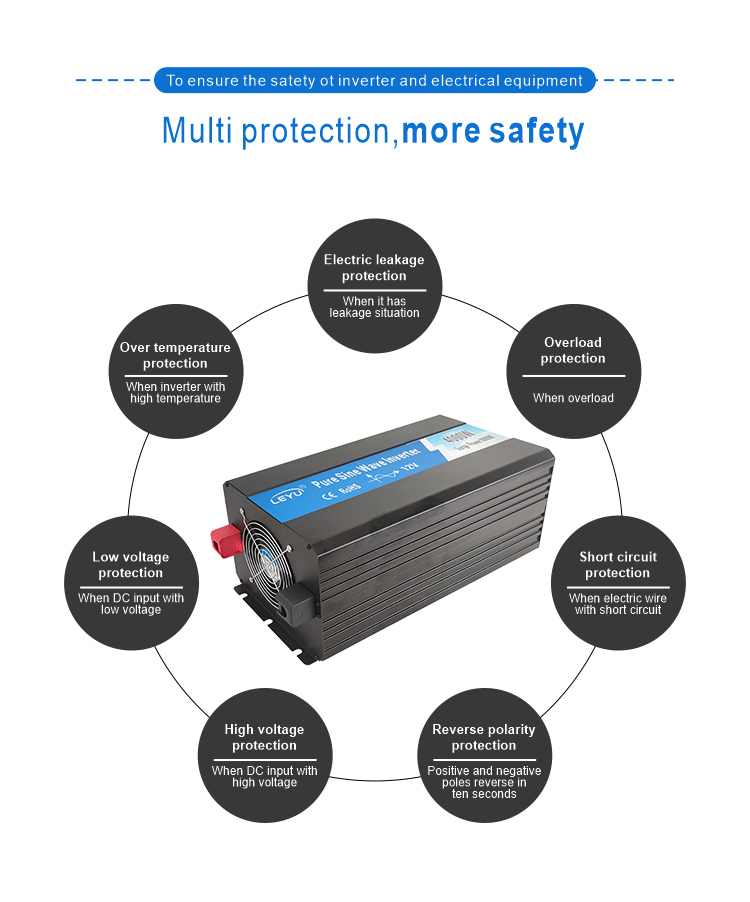

Under voltage protection
Send out the alarm sound first (judge that the alarm sound is one, bi-bi-bi...), The LED red light flashes, the voltage continues to decrease, and the machine is turned off.
Over voltage protection
Send out the alarm sound first (judge that the alarm sound is two, Bibi - Bibi - Bibi...) The LED red light flashes, the voltage continues to rise, and the machine is turned off.
Overload protection
Send out the alarm sound first (judge that the alarm sound is continuous alarm Bibi...), The LED red light flashes and the machine is turned off.
Over temperature protection
Send out the alarm sound first (judge that the alarm sound is three, bibibi - bibibi - bibibi...), The LED red light flashes, the temperature continues to rise, and the machine is turned off.
Short circuit protection
Send out alarm sound without damaging the circuit (judge that the alarm sound is continuous alarm, Bibi...)
Polarity protection
The fuse is blown
Under voltage alarm range
10.5±0.5V
21±0.5V
42±1V
Under voltage protection range
9.5±0.5V
19±0.5V
38±1V
Overvoltage protection range
15.5±0.5V
31±0.5V
61±1V
Under voltage recovery range
13±0.5V
24±0.5V
48±1V
Overvoltage recovery range
14V±0.2V
28V±0.5V
54V±1V
Working temperature
-10℃ - 50℃
Product size (mm)
400*205*170 mm
Package size (mm)
560*320*270 mm
Outer box size(mm)
560*320*270 mm
Net / gross weight (kg)
8.6 / 10 kg
Quantity / box
1 pcs
Total weight (kg)
10 kg
Warranty
12 months
To configure
2 pure copper connecting wires + 1 spare fuse pack
Cooling mode
Intelligent air cooling
Note: our products are constantly updated. The technical parameters are for reference only.Please refer to the actual products.
