SCP-35

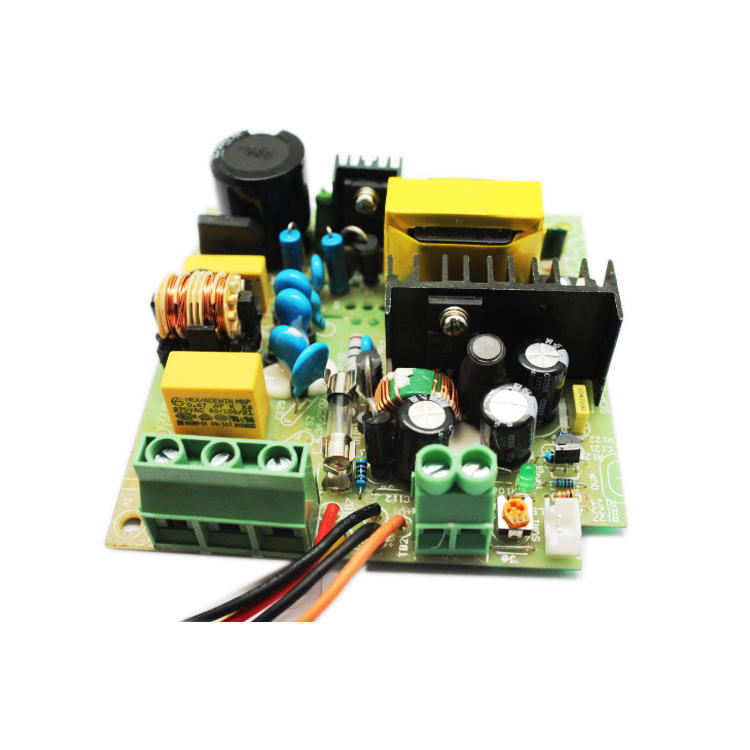

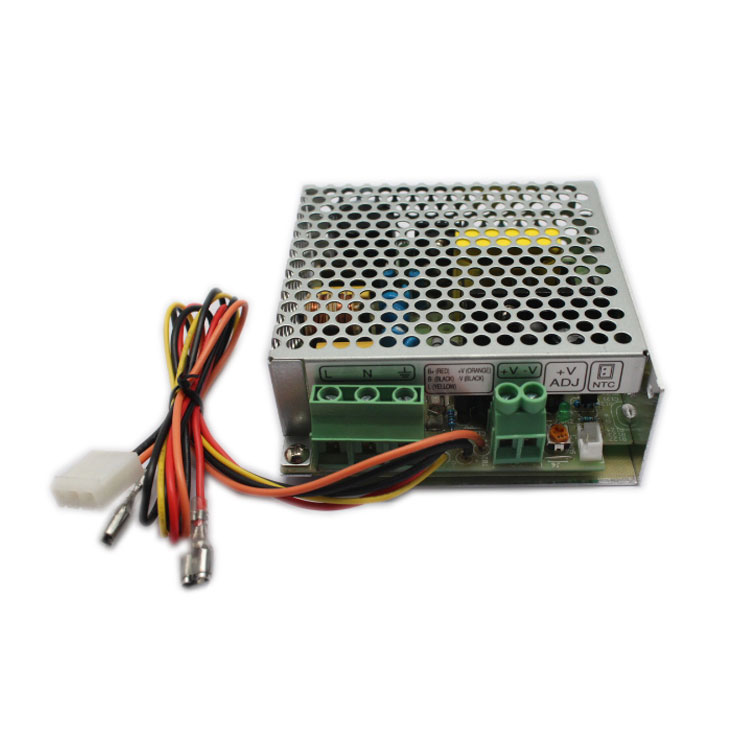

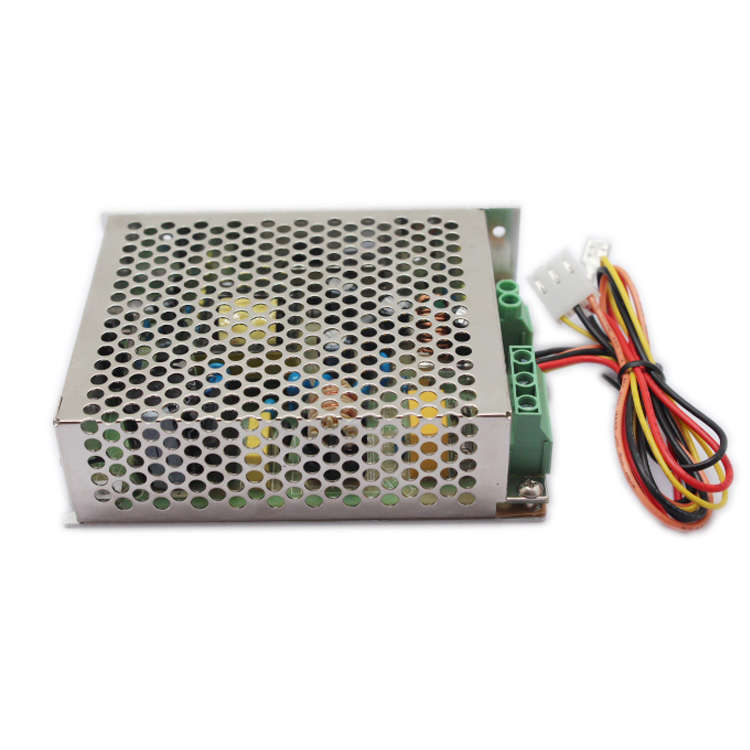

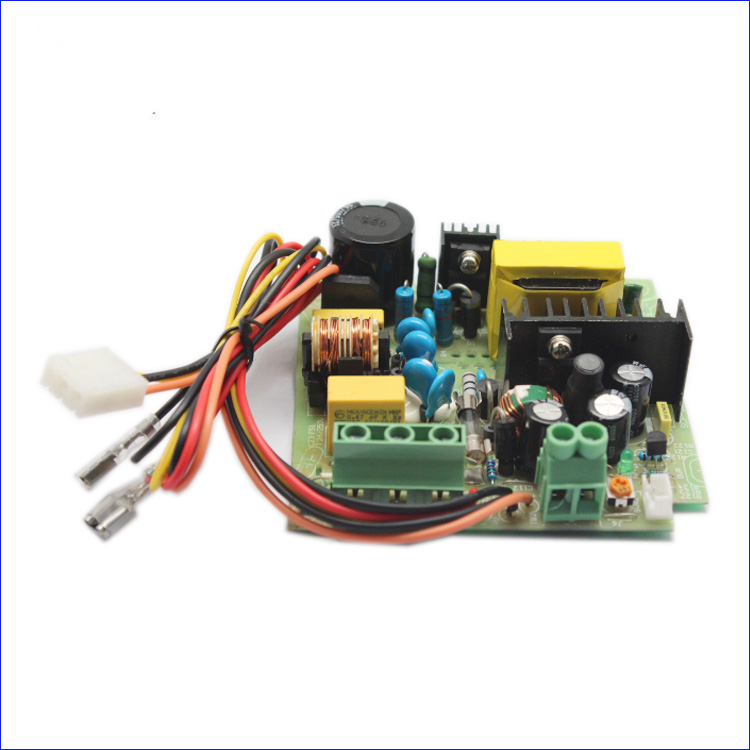

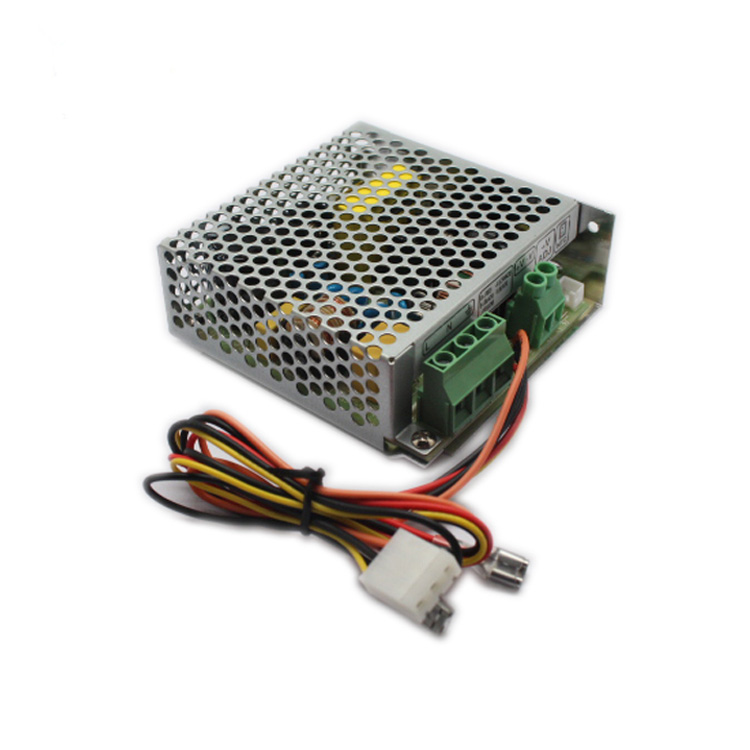

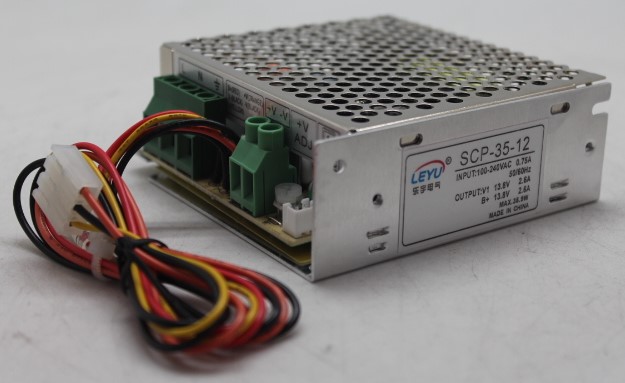

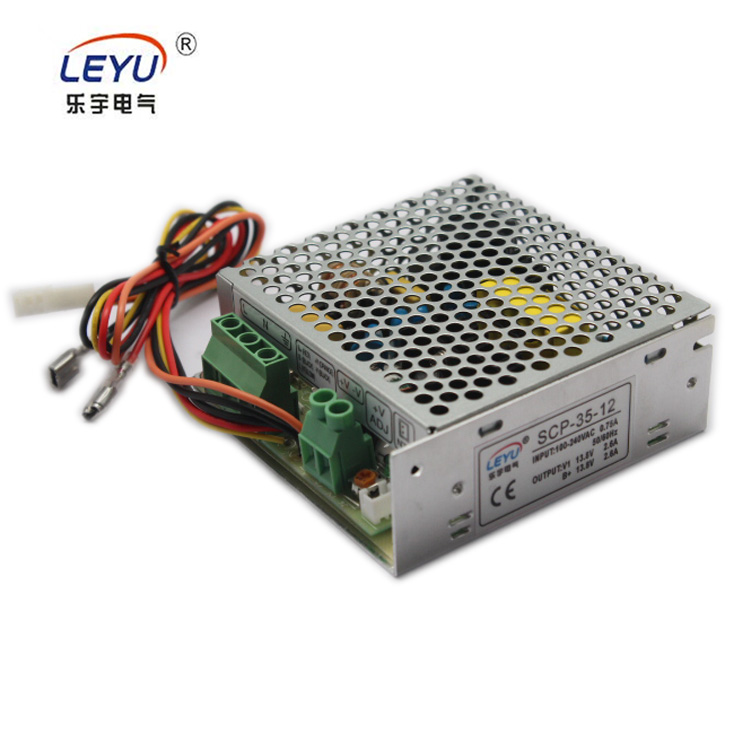

35W Single Output UPS function Power Supply SCP-35 series
Online Service
Product Detail
35W Single Output UPS function Power Supply SCP-35 series
Features:
1.Universal AC input/Full rang
2.Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
3.Cooling by free air convection
4.LED indicator for power on
5.No load power consumption<1W
6.Suitable for installation in metallic or non-metallic system enclosure
7.100% full load burn-in test
8.2 years warranty
|
SPECIFICATION |
|||
|
OUTPUT |
|
||
|
Model |
SCP-35-12 |
SCP-35-24 |
|
|
DC Voltage |
13.8V |
27.6V |
|
|
Rated Current |
2.6A |
1.4A |
|
|
Current Range |
0-2.6A |
0-1.4A |
|
|
Rated Power |
35.9W |
38.6W |
|
|
Ripple & Noise |
120mVp-p |
200mVp-p |
|
|
Voltage Adj. Range |
+15,-5% |
+15,-5% |
|
|
Voltage Tolerance |
±2% |
±1% |
|
|
Inlet Stability |
±1% |
±1% |
|
|
Load Stability |
±2% |
±1% |
|
|
Setup, Rise, Hold Up Time |
500ms,30ms/230VAC 1200ms,30ms/115VAC at full load |
||
|
INPUT |
|
||
|
Voltage Range |
85~264VAC 120-370VDC |
||
|
Frequency Range |
47-63Hz |
||
|
AC Current |
0.7A/115V 0.5A/230VAC |
||
|

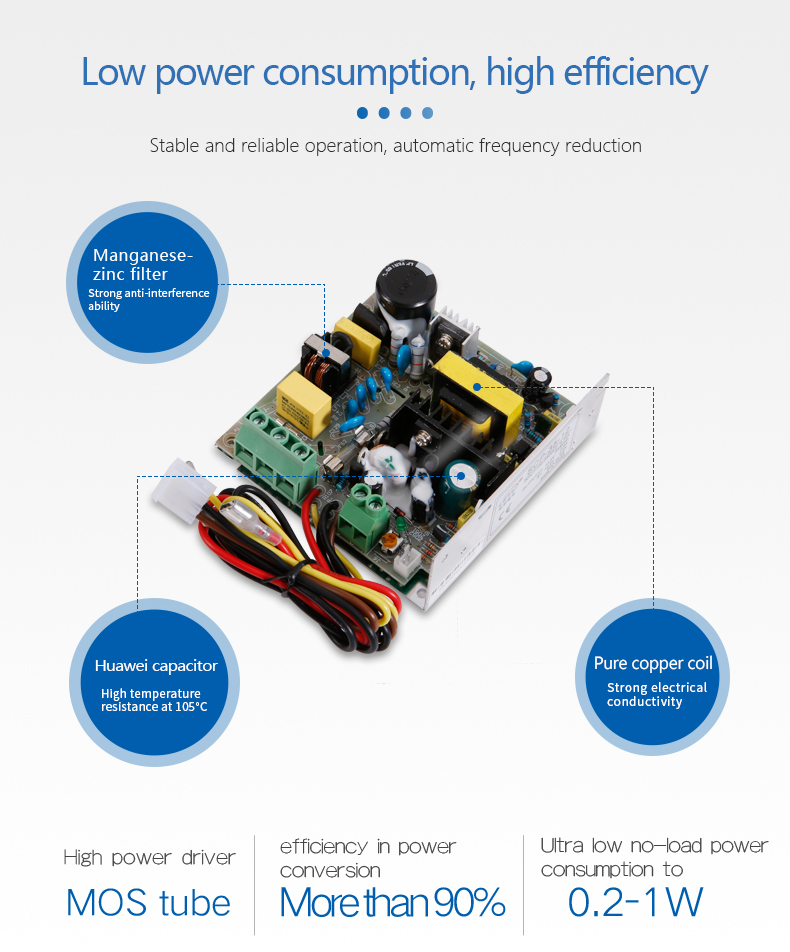

Efficiency |
83% |
86% |
|
|
Inrush Current |
Cold-start 45A |
||
|
Leakage Current |
<2mA/240VAC |
||
|

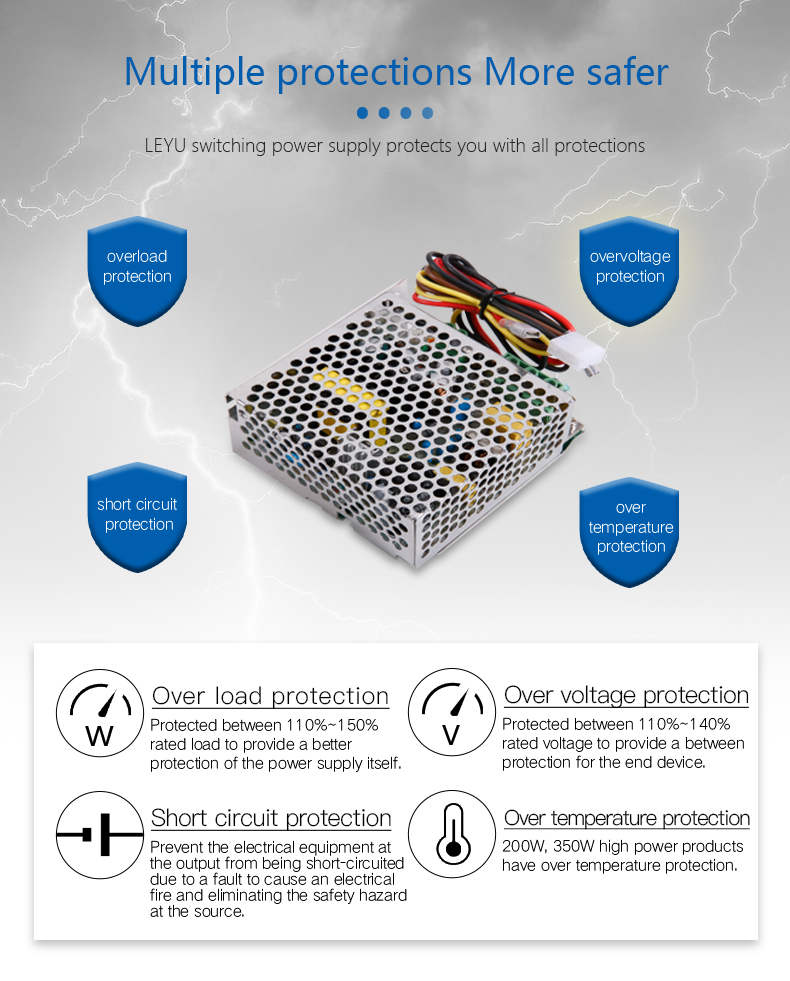

PROTECTION |
|
||
|
Over Load |
3.1A~4.2A rated output power |
1.7A~2.3A rated output power |
|
|
Protection type: hiccup mode,recovers automatically after fault condition is removed |
|||
|
Over Voltage |
16.6~19.3V |
33.1~38.5V |
|
|
Protection type: shut down o/p voltage, re-power on to recover |
|||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-20℃~+60℃(Refer to output derating curve),20%~90%RH |
||
|
Storage Temp., Humidity |
-40℃~+85℃, 10%~95%RH |
||
|
Temp. Coefficient |
±0.05%/℃(0~45℃) |
||
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes |
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
||
|
STANDARD |
|
||
|
Safety Standard |
UL60950-1,CCC,CE |
||
|
EMC Standard |
EN55022,CLASS B |
||
|
OTHERS |
|
||
|

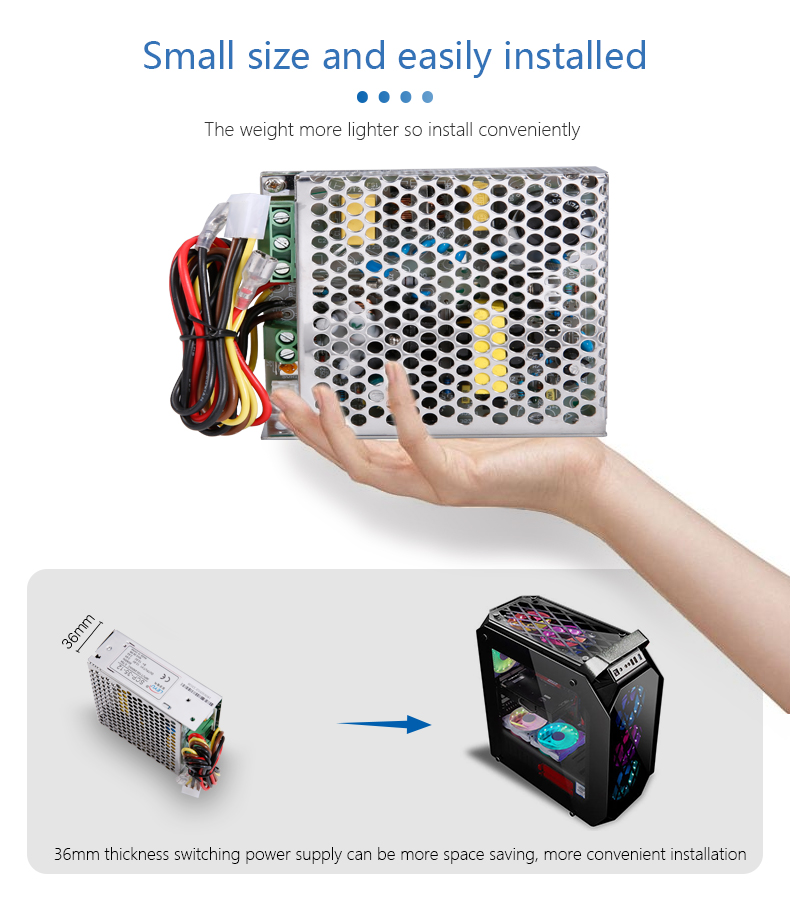

Dimension |
99*97*38mm(L*W*H) |
||
|
Net weight |
0.3436Kg |
||
|
Weight |
0.4Kg/pc 45pcs/carton |
||
