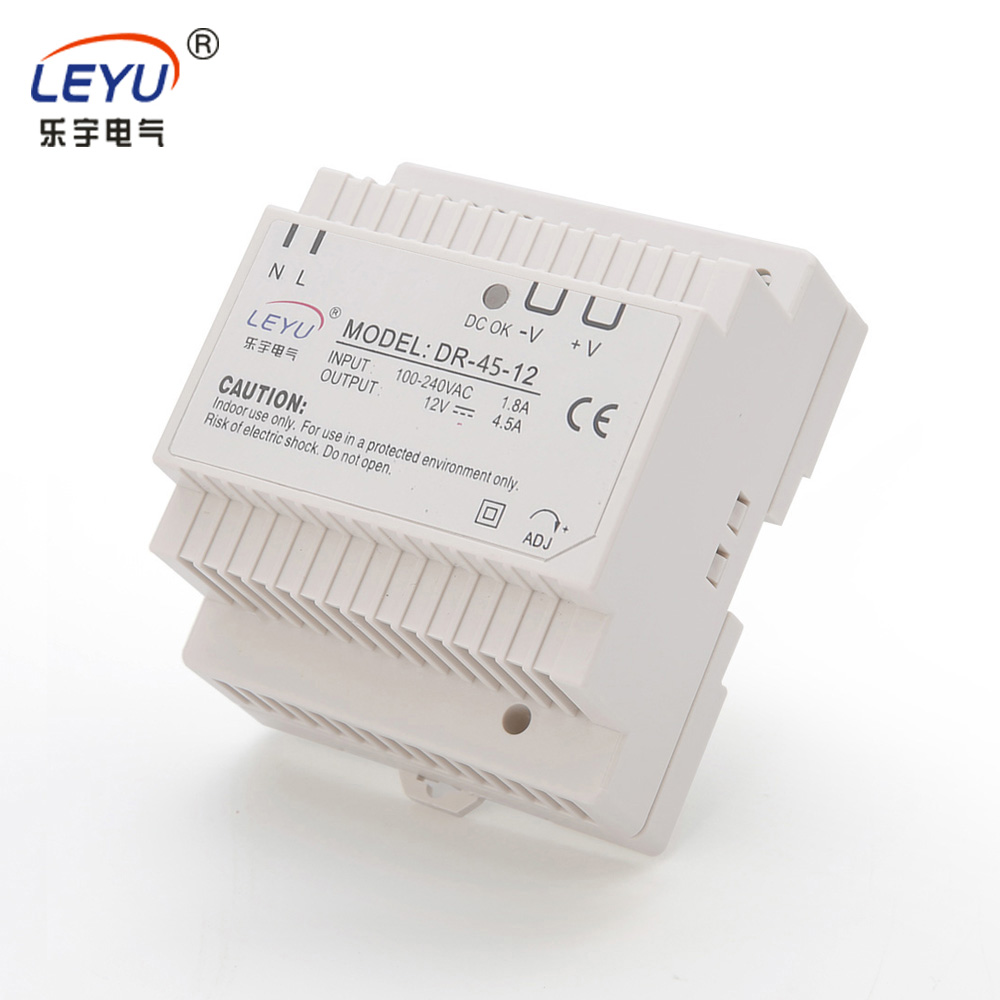

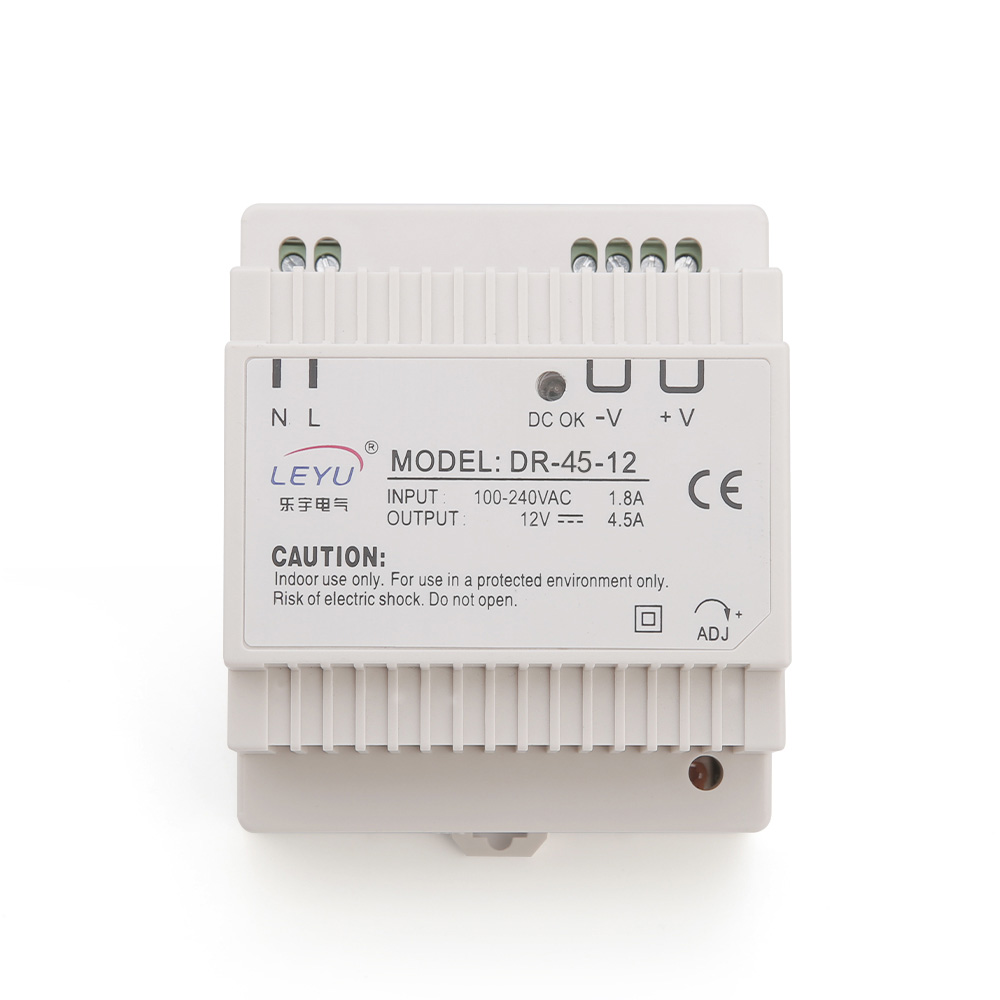

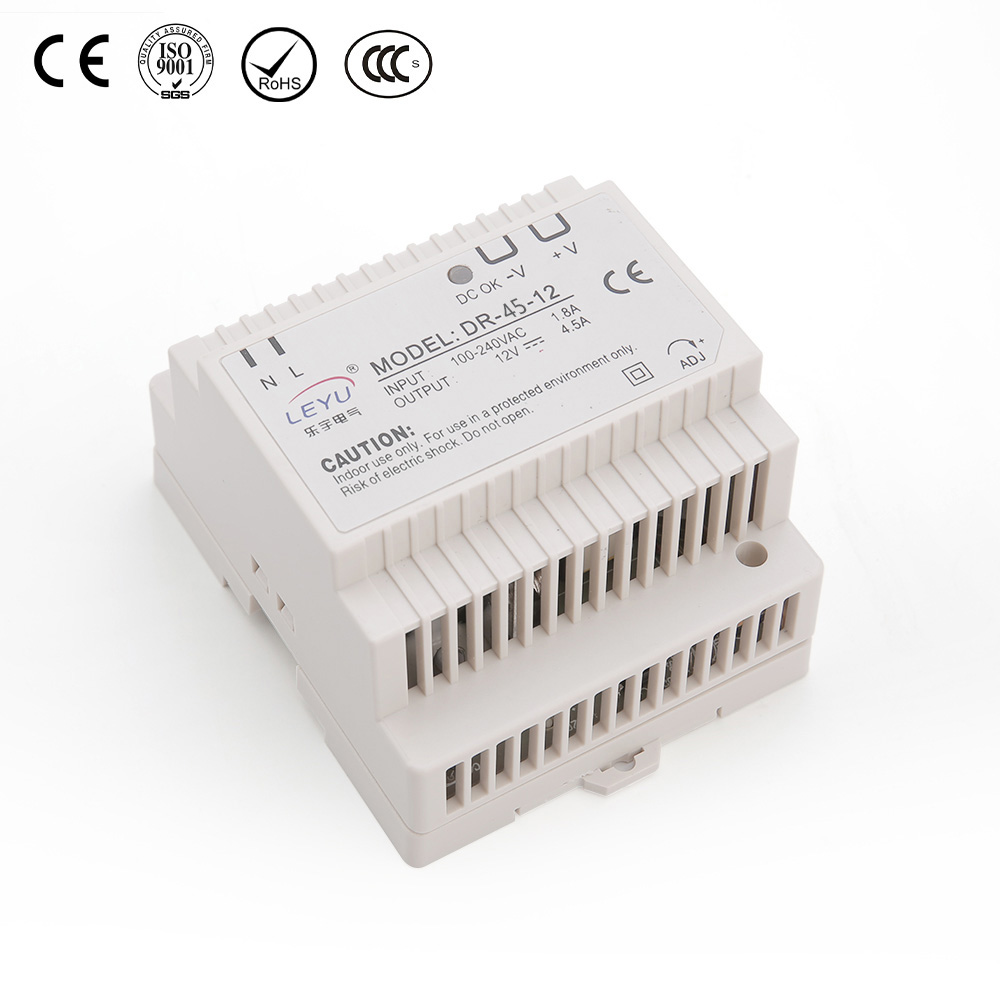

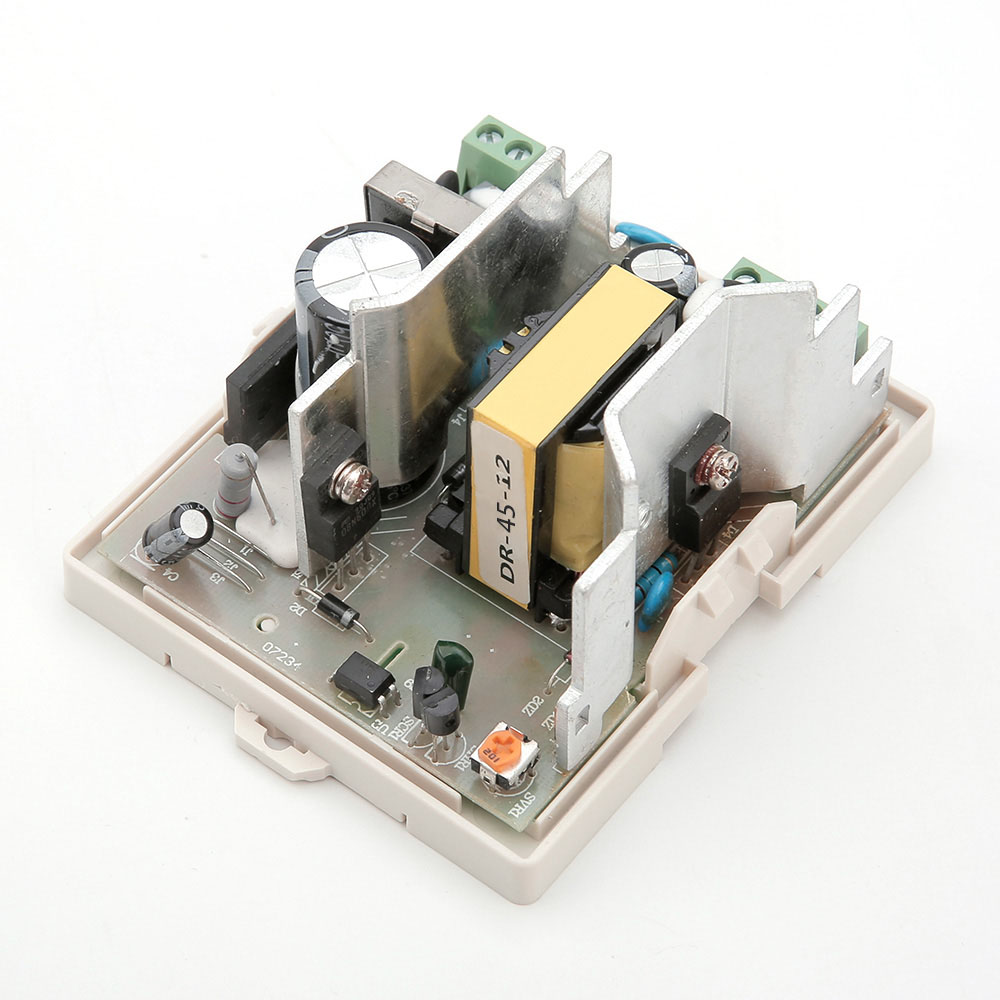

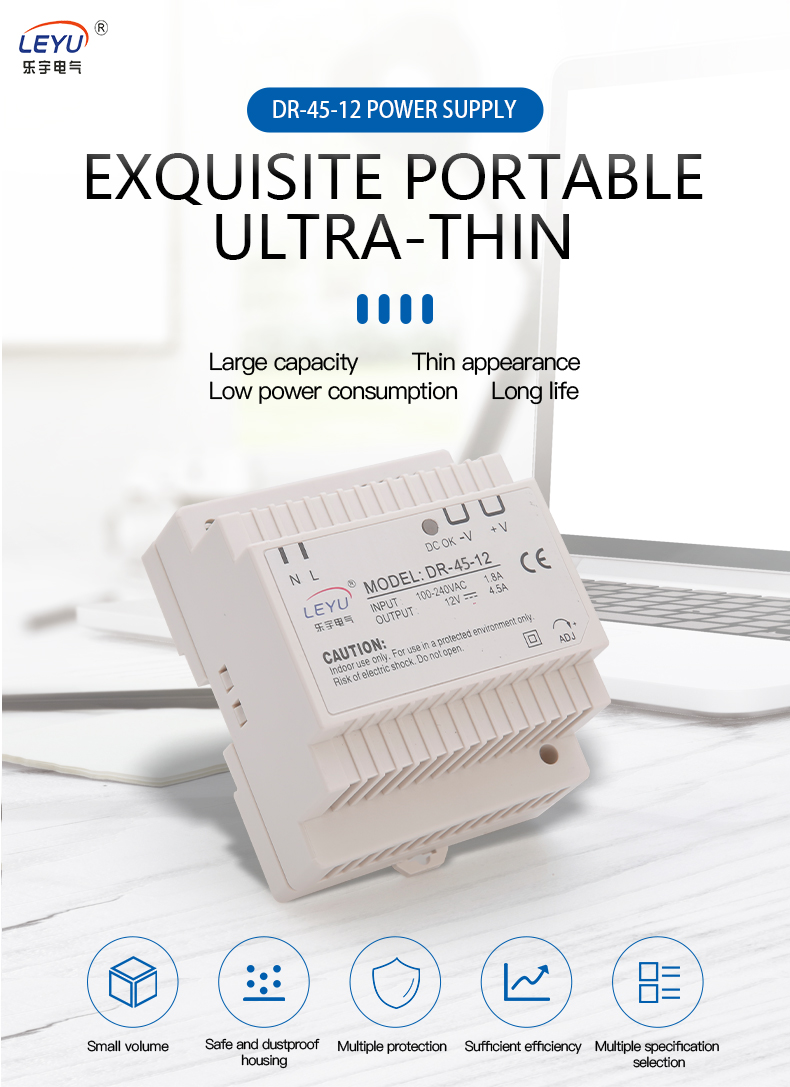

45W Single Output Industrial DIN Rail Power Supply DR-45 series
Features:
Universal AC input/ full range

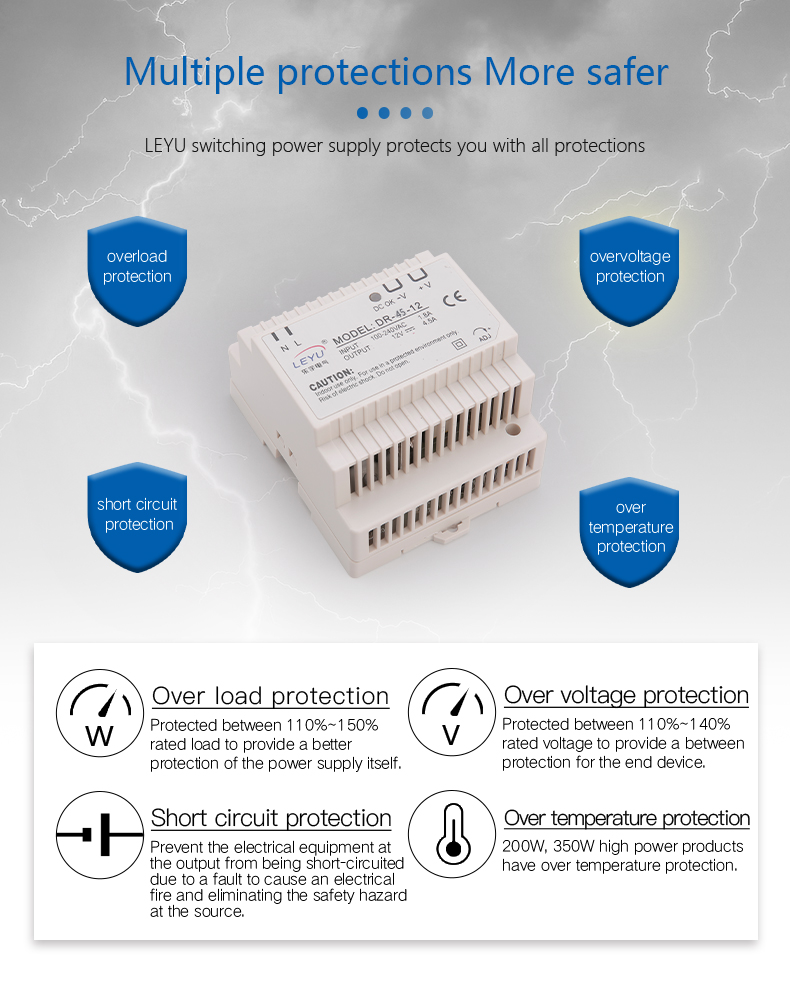

Protections: Short circuit/Over load/Over voltage/Over temperature
Cooling by free air convection

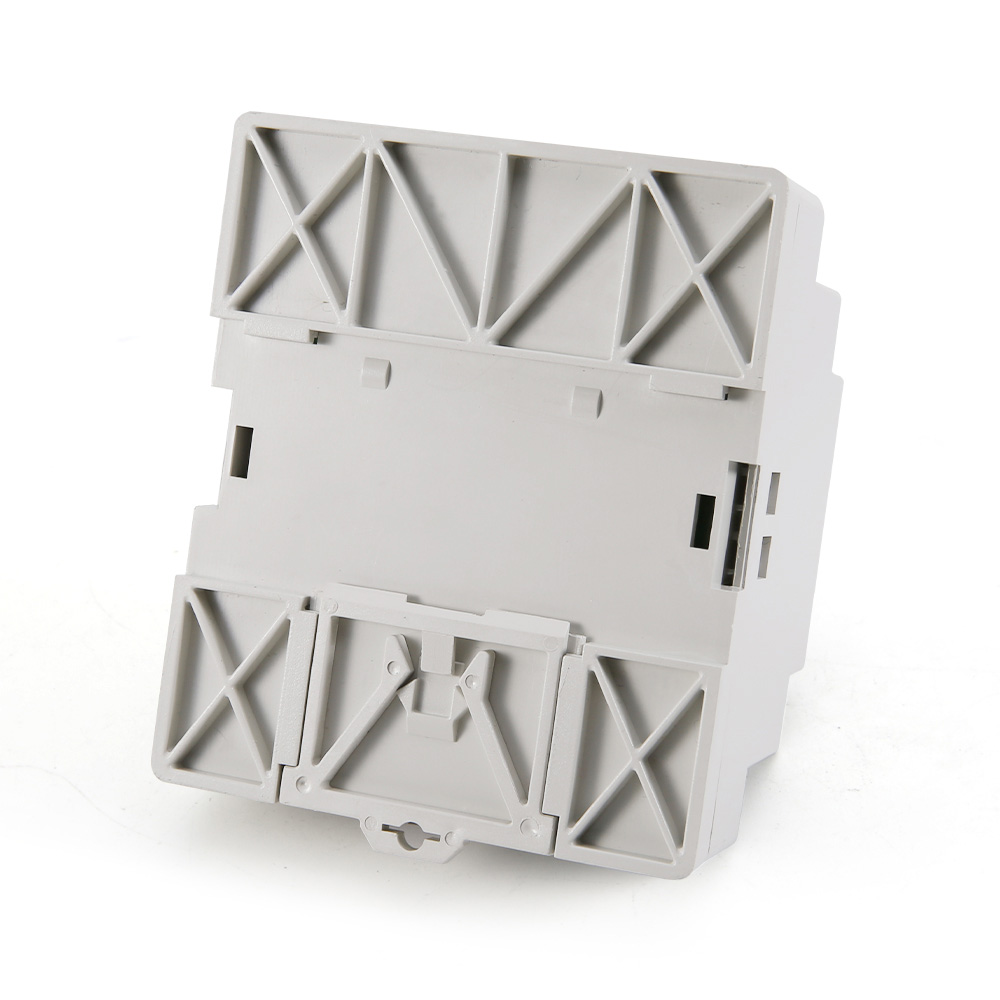

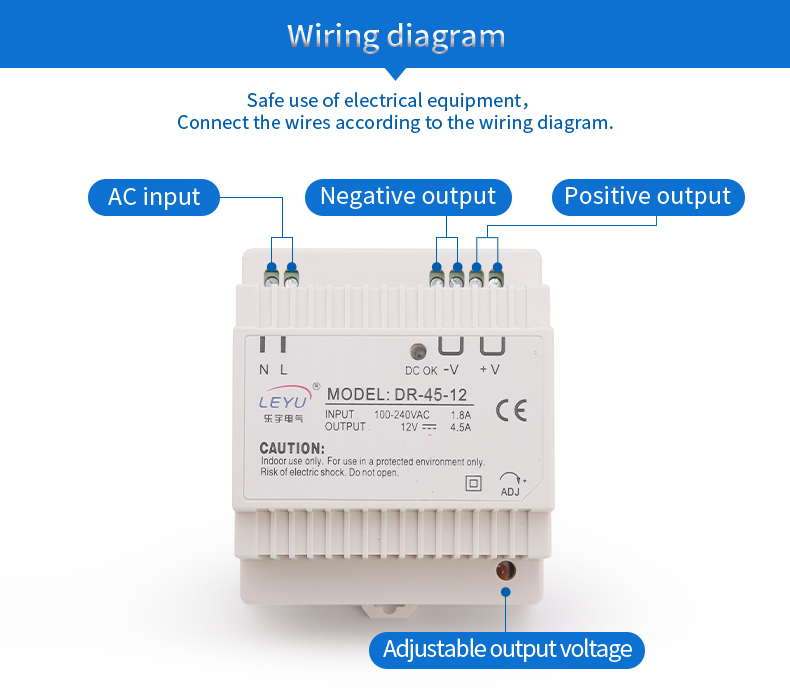

Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test

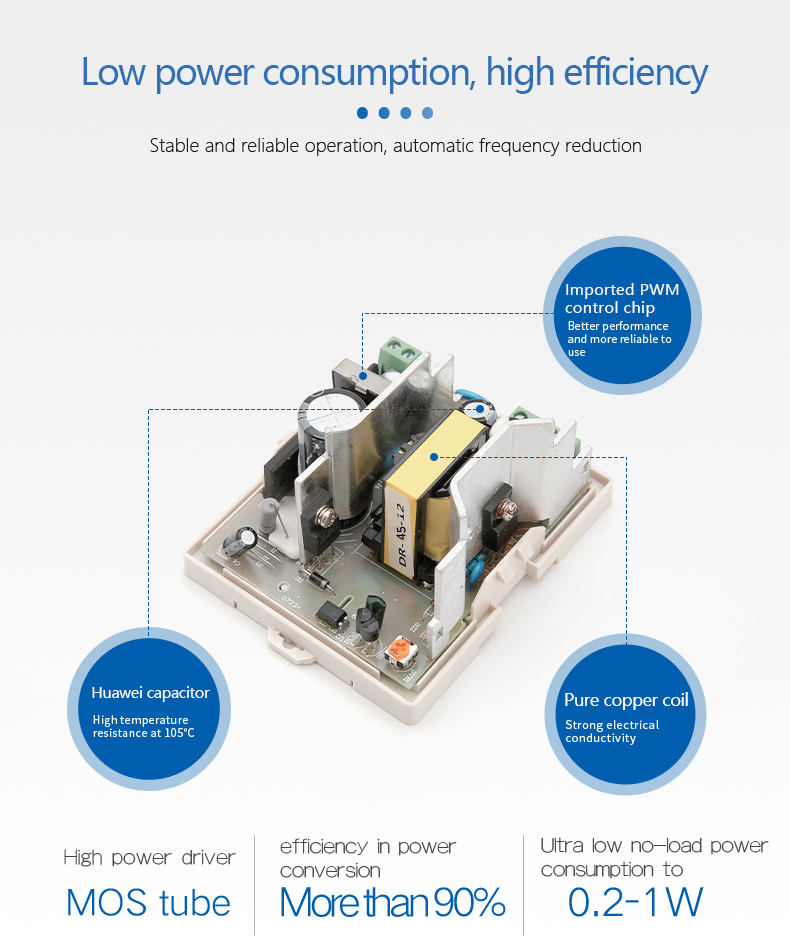

Fixed switching frequency at 100KHz
2 year warranty
|
SPECIFICATIONS |
||||
|
OUTPUT |
|
|||
|
Model |
DR-45-5 |
DR-45-12 |
DR-45-15 |
DR-45-24 |
|
DC Voltage |
5V |
12V |
15V |
24V |
|
Rated Current |
9A |
3.75A |
2.8A |
2A |
|
Current Range |
0-9A |
0-3.75A |
0-2.8A |
0-2A |
|
Rated Power |
45W |
42W |
42W |
48W |
|
Ripple & Noise |
100mVp-p |
200mVp-p |
240mVp-p |
480mVp-p |
|
Voltage Adj. Range |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
±1% |
|
Setup, Rise, Hold Up Time |
800ms,100ms, 50ms/230VAC at full load |
|||
|
|
|
|||
|
INPUT |
|
|||
|
Voltage Range |
85~264VAC 47~63Hz; 120~370VDC |
|||
|
AC Current |
1.5A/115V 0.75A/230V |
|||
|
Efficiency |
72% |
77% |
77% |
80% |
|
Inrush Current |
Cold start 30A/115V 60A/230V |
|||
|
Leakage Current |
<1mA/240VAC |
|||
|
|
|
|||
|
PROTECTION |
|
|||
|
Over Load |
105%~150% |
|||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
||||
|
Over Voltage |
115%~135% |
|||
|
Protection type: Shut off o/p voltage, clamping by zener diode |
||||
|
Over Temp.. |
Tj 135℃ typically (U1) Detect on heat sink of power transistor |
|||
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||
|
|
|
|||
|
ENVIRONMENT |
|
|||
|
Working Temp., Humidity |
-10℃~+50℃; 20%~90%RH |
|||
|
Storage Temp., Humidity |
-20℃~+85℃; 10%~95%RH |
|||
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|||
|
|
|
|||
|
SAFETY |
|
|||
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
|||
|
|
|
|||
|
STANDARD |
|
|||
|
Safety Standard |
Design refer to UL508,TUV EN60950-1 |
|||
|
EMC Standard |
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2 |
|||
|
|
|
|||
|
OTHERS |
|
|||
|

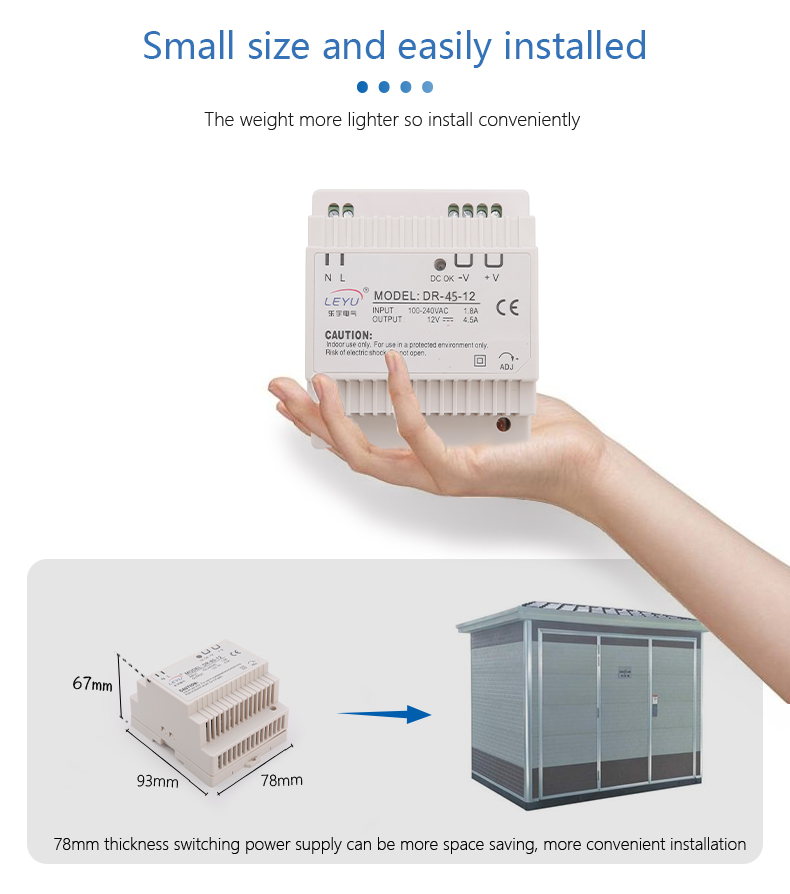

Dimension |
93*78*67mm (L*W*H) |
|||
|
Weight |
0.31Kg |
|||
|
Packing |
48pcs/16.1Kg/1.3CUFT |
|||
|
|
|
|||
|
NOTE |
|
|||
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||
