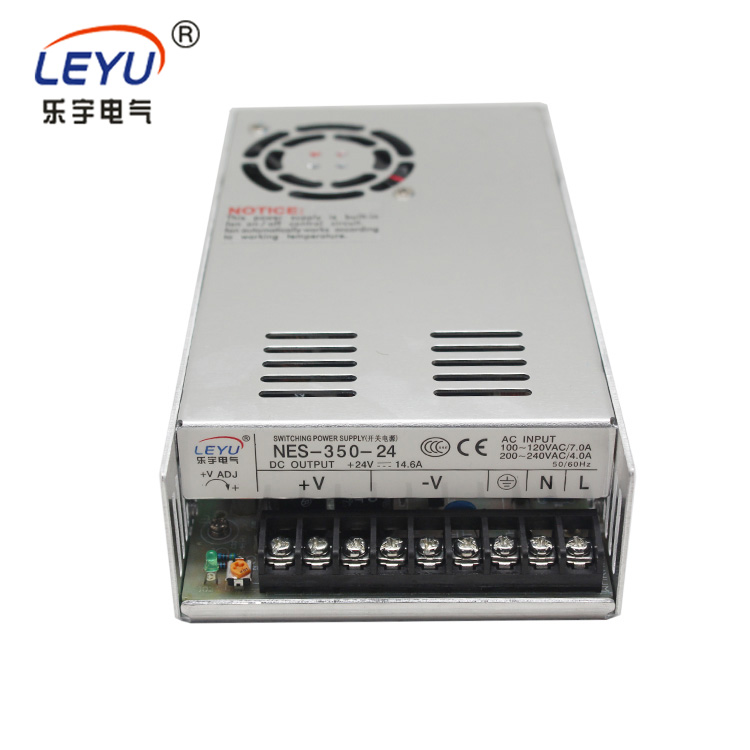

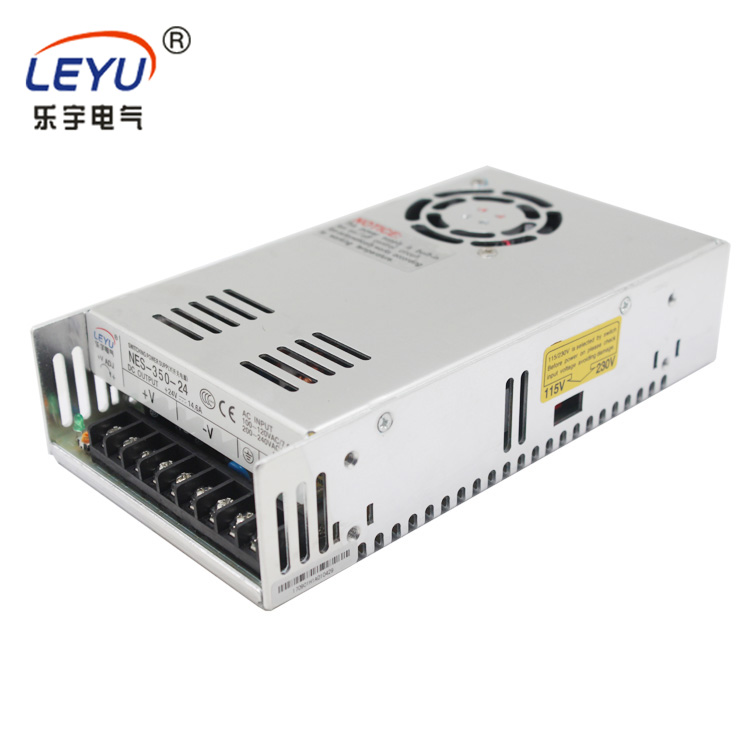

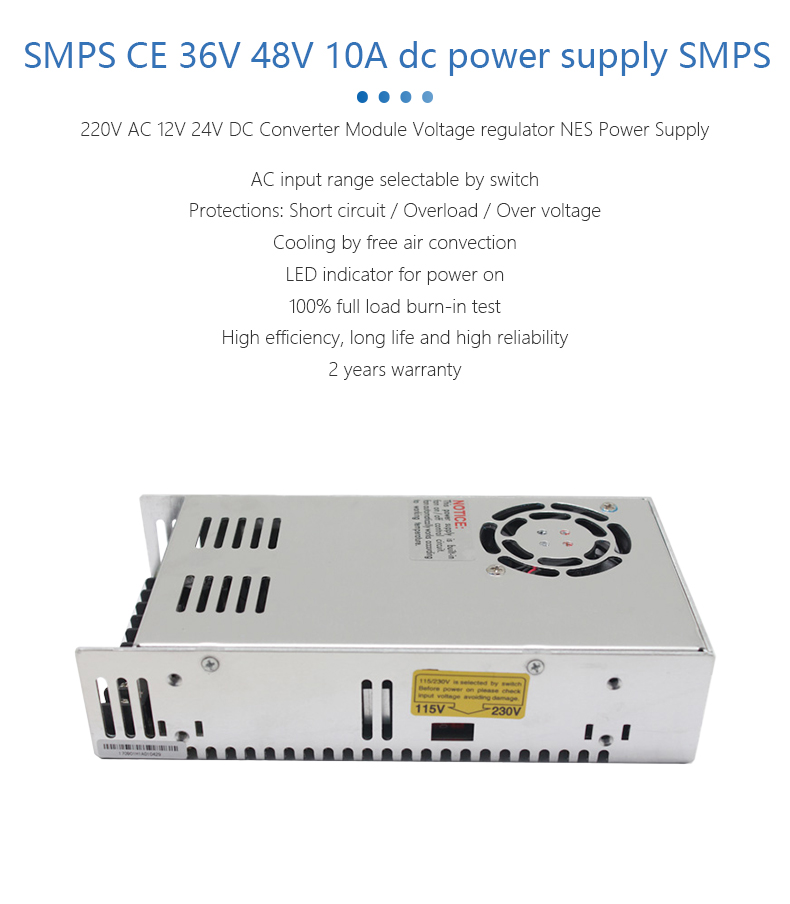

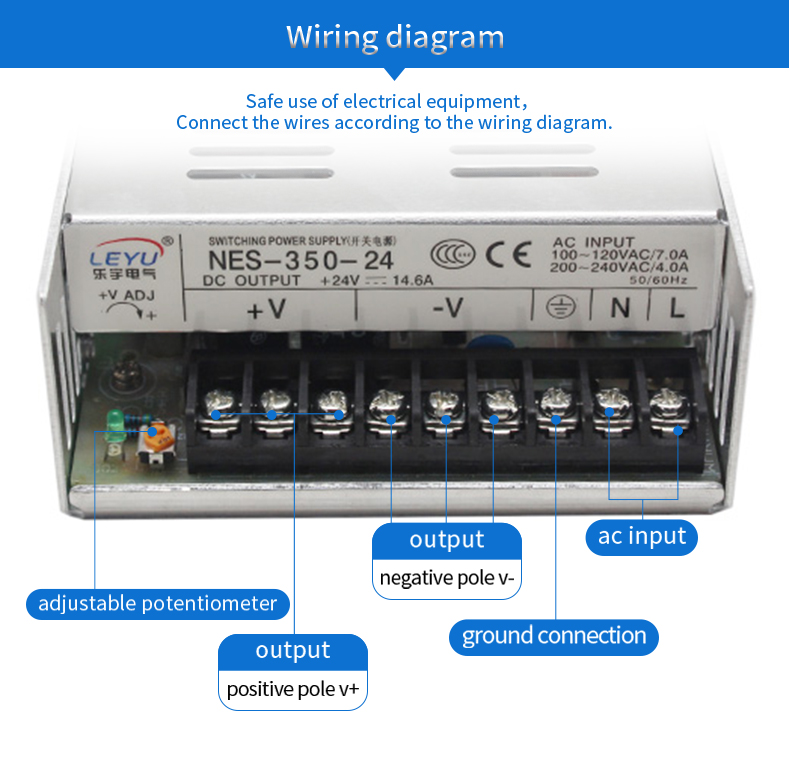

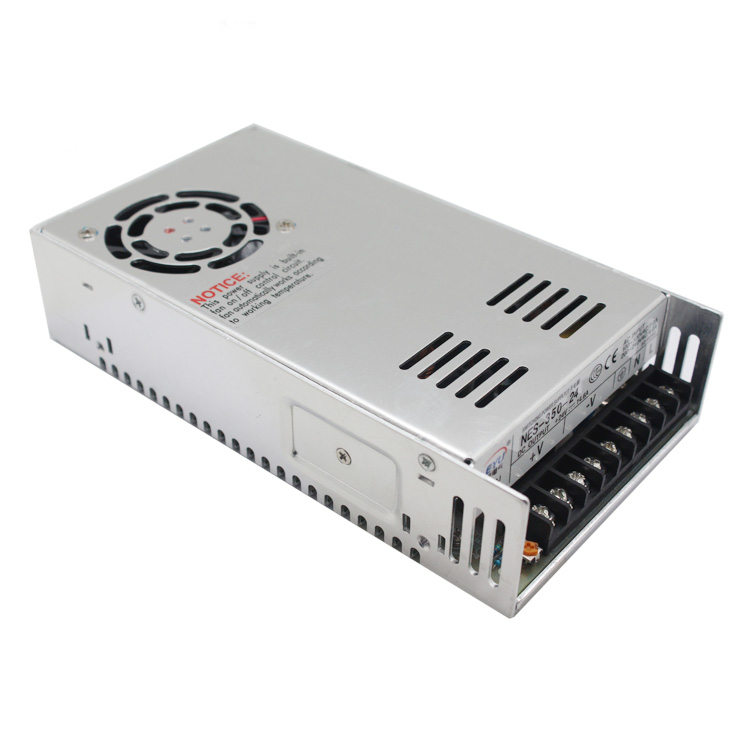

350W Single Output Switching Power Supply                         NES-350 series

Features:

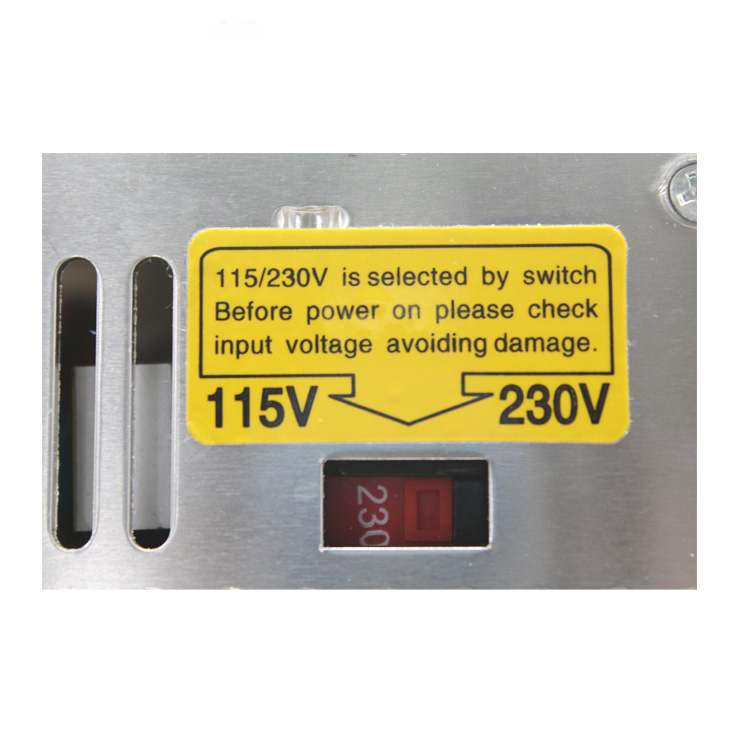

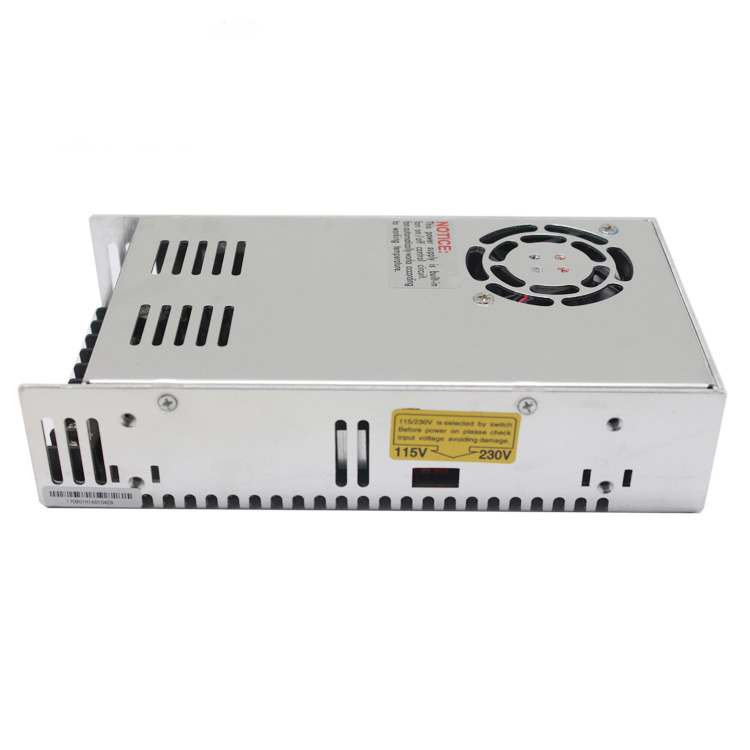

AC input range selectable by switch

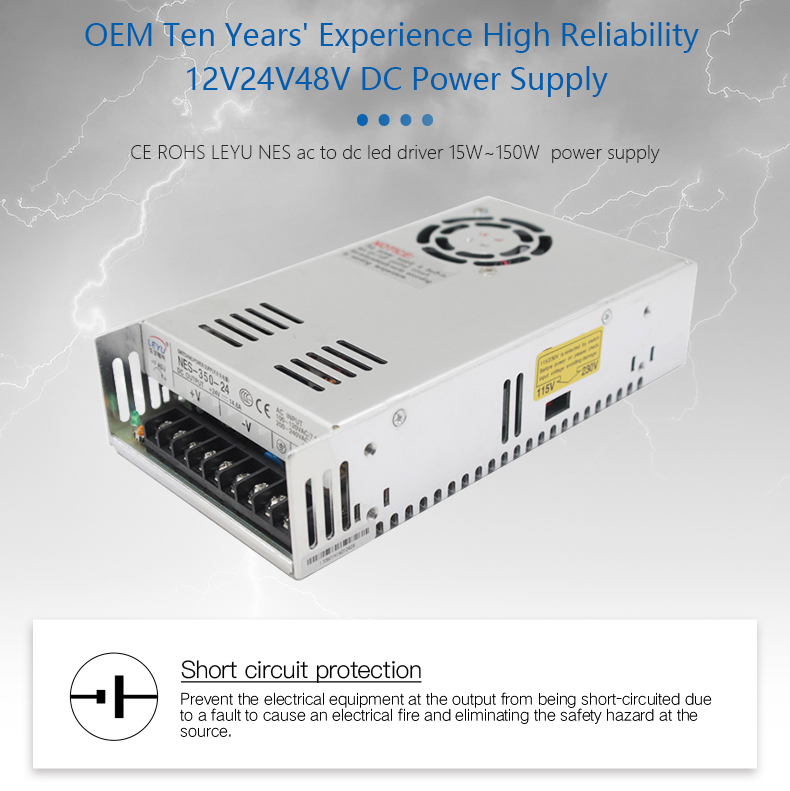

Protections: Short circuit / Overload / Over voltage

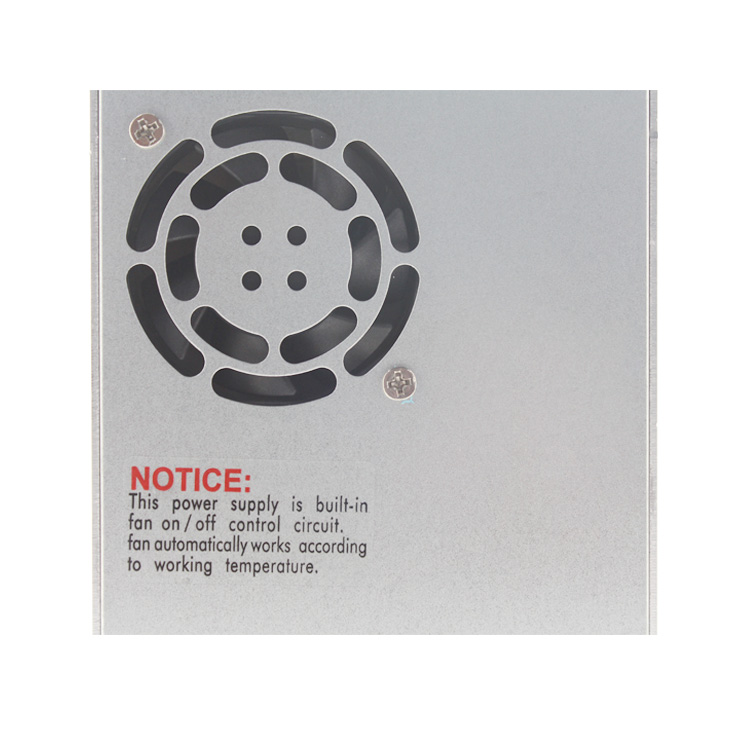

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

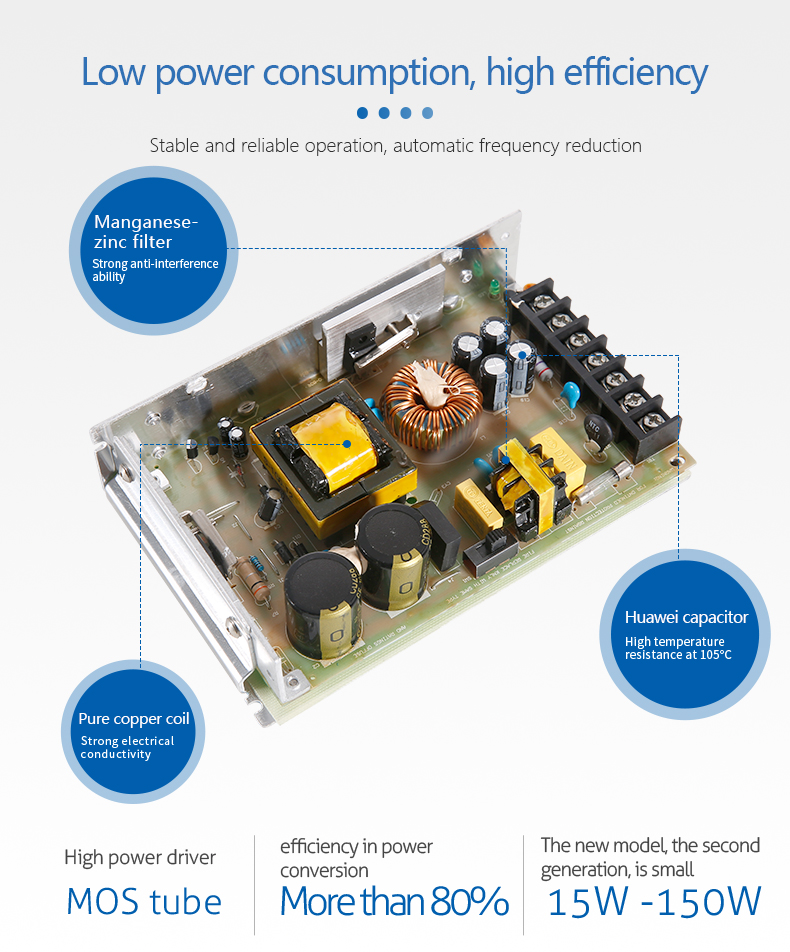

High efficiency, long life and high reliability

2 years warranty

SPECIFICATION



OUTPUT



Model

NES-350-5

NES-350-7.5

NES-350-12

NES-350-15

NES-350-24

NES-350-36

NES-350-48

DC Voltage

5V

7.5V

12V

15V

24V

36V

48V

Rated Current

60A

46A

30A

23.2A

15A

9.7A

7.3A

Current Range

0~60A

0~46A

0~30A

0~23.2A

0~15A

0~9.7A

0~7.3A

Rated Power

300W

345W

360W

348W

360W

349W

350.4W

Ripple&Noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

240mVp-p

240mVp-p

VoltageAdj. Range

4.5~5.5V

7.13 ~ 8.3V

10~ 13.5V

13.5~18V

20~26.4V

32~40V

41~56V

Voltage Tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup,Rise Time

1000ms, 50ms/230VAC   1000ms, 50ms/115VAC at full load

Hold Up Time

20ms/230VAC   16ms/115VAC at full load





INPUT



Voltage Range

90 ~ 132VAC / 180 ~ 264VAC selected by switch   254 ~ 373VDC

Frequency Range

47 ~ 63Hz

Efficiency

78%

80%

84%

87%

87%

87.5%

87.5%

AC Current

7A/115VAC  4A/230VAC

Inrush Current

Cold Start40A/230VAC

Leakage Current

<3.5mA / 240VAC





PROTECTION



Over Load

110 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

5.75~7.5V

9.4~11.5V

13.8~16.2V

18~21V

27.6~32.4V

41.4~46.8V

57.6~67.2V

Protection type: Hiccup mode, recovers automatically after fault condition is removed





ENVIRONMENT



Working Temp.

-20 ~ +60℃ (Refer to output load derating curve)

Working Humidity

20 ~ 90% RH non-condensing

StorageTemp., Humidity

-20 ~ +85℃, 10 ~ 95% RH

Temp. Coefficient

±0.03%/℃ (0 ~ 50℃)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes





SAFETY &EMC



Safety Standards

UL60950-1, CB(IEC60950-1),CCC GB4943 approved

Withstand Voltage

I/P-O/P:3KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH

EMI Conduction & Radiation

Compliance to EN55022 (CISPR22) Class B,GB9254 CLASS B

Harmonic Current

Compliance to EN61000-3-2,-3,GB17625.1

EMC Immunity

Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, heavy industry level, criteria A





OTHERS



Dimension

215*115*50mm (L*W*H)

Weight

1.07Kg

Packing

20pcs/carton





NOTE



1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Line regulation is measured from low line to high line at rated load.

5. Load regulation is measured from 0% to 100% rated load.

6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.

7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
