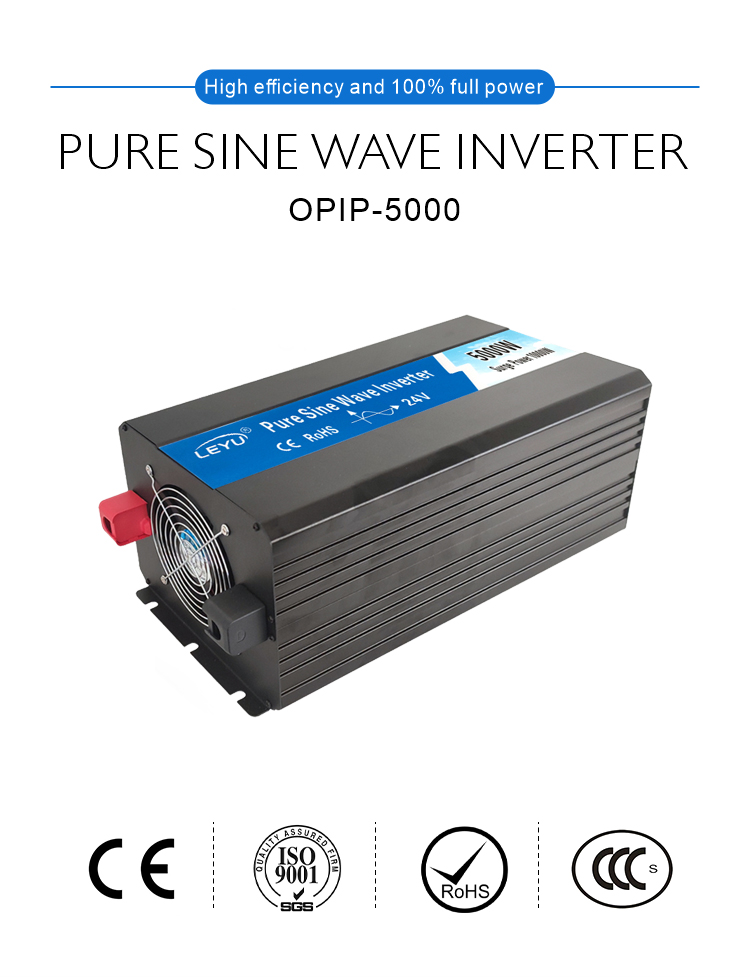

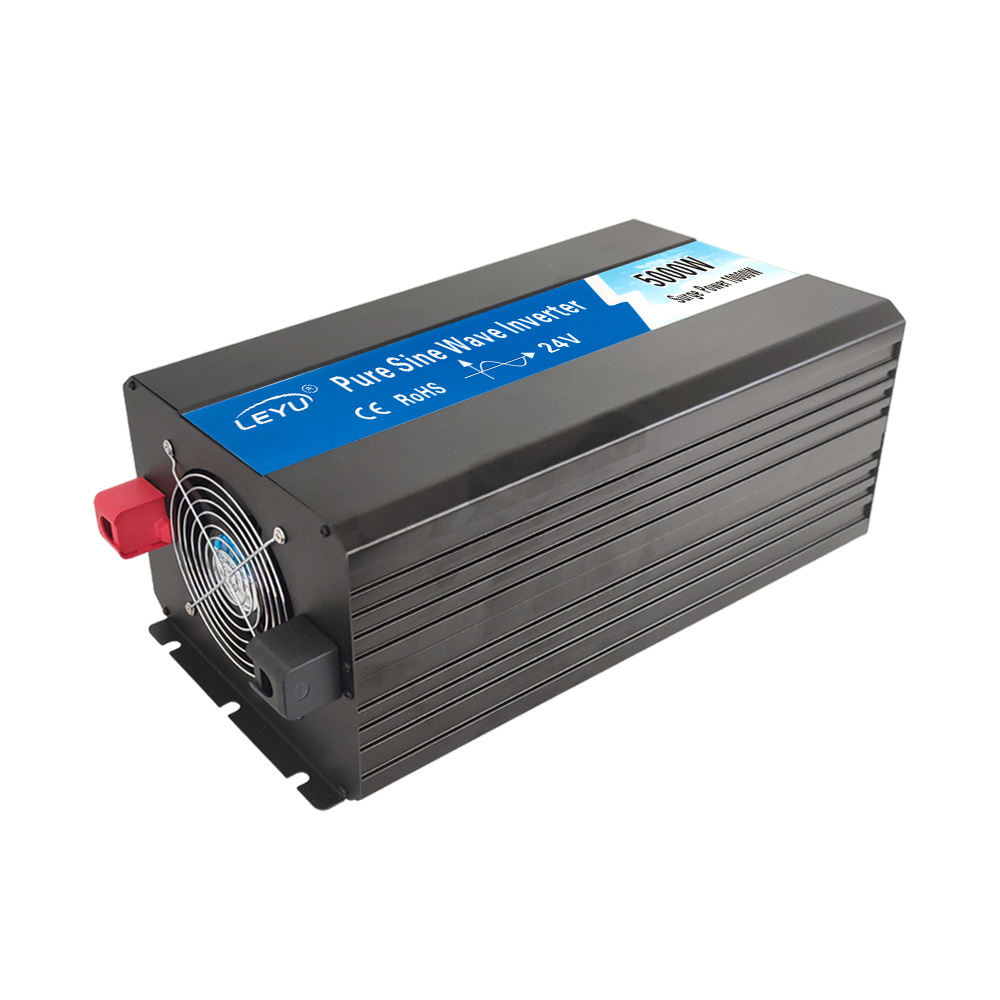

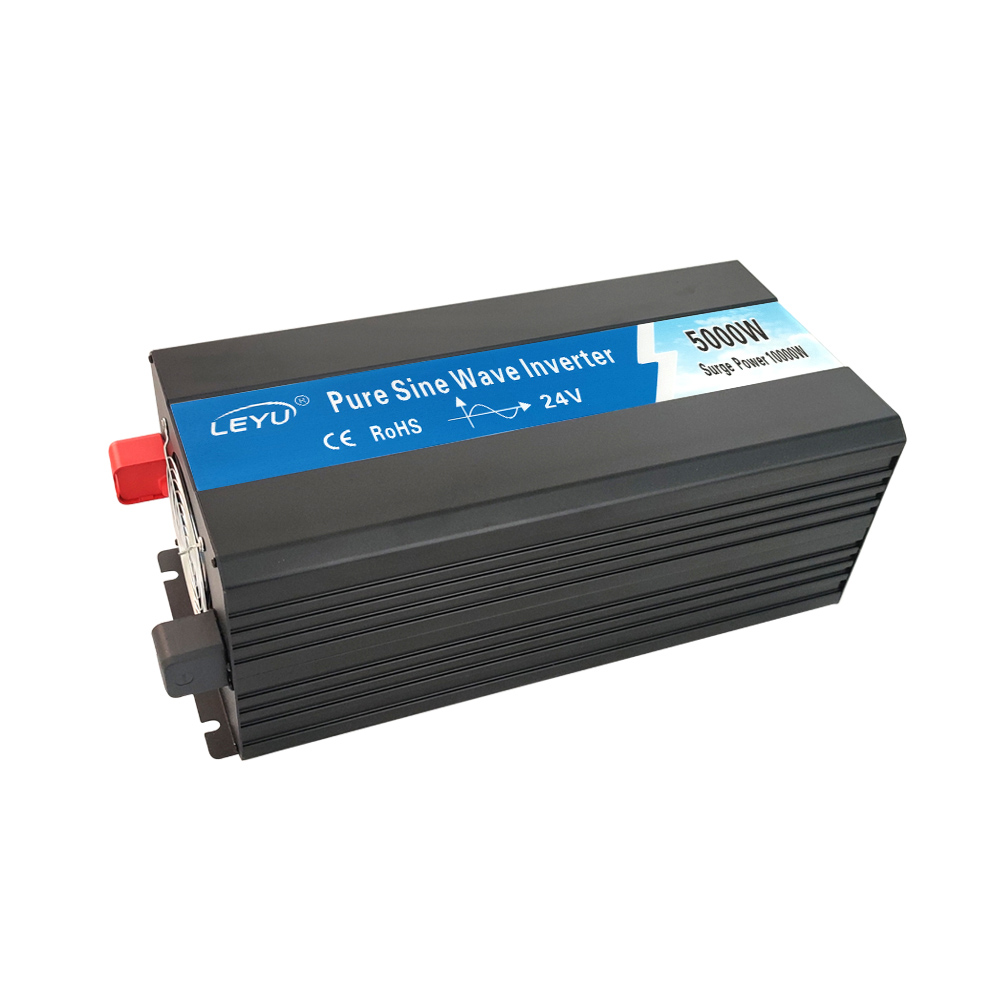

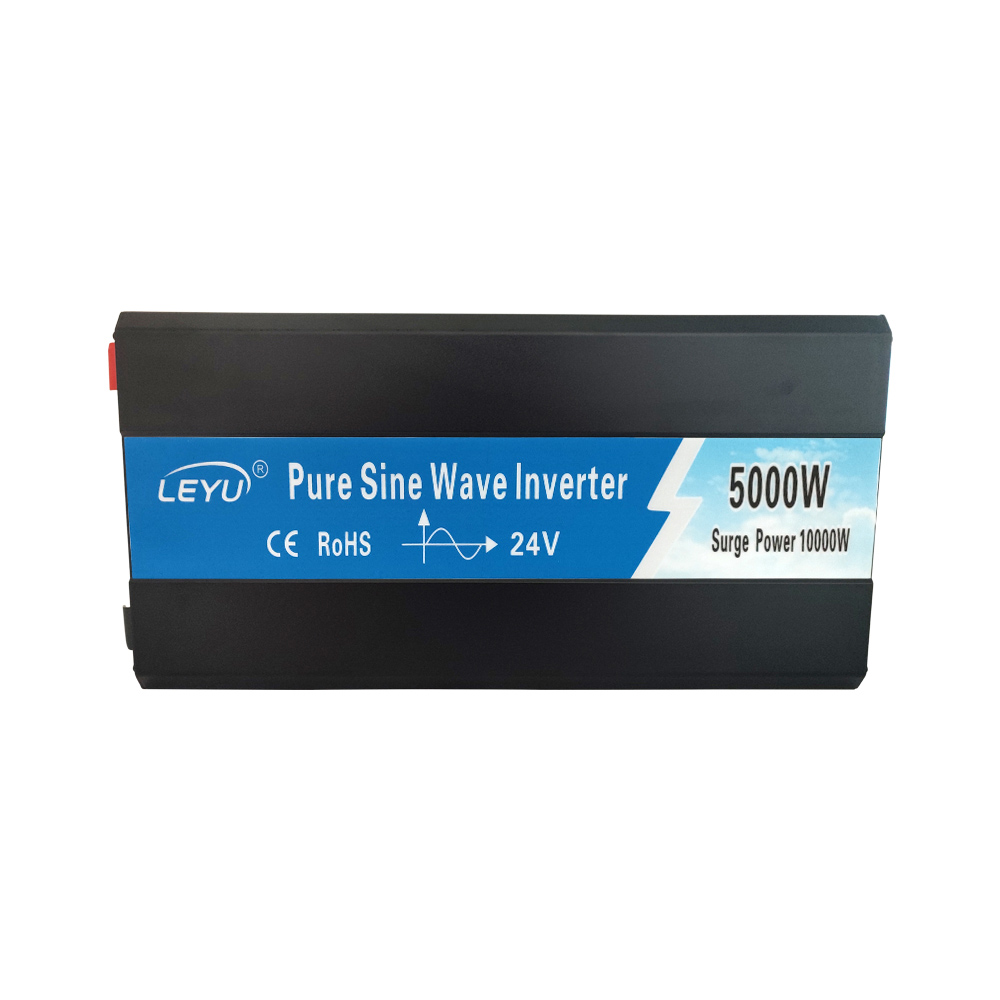

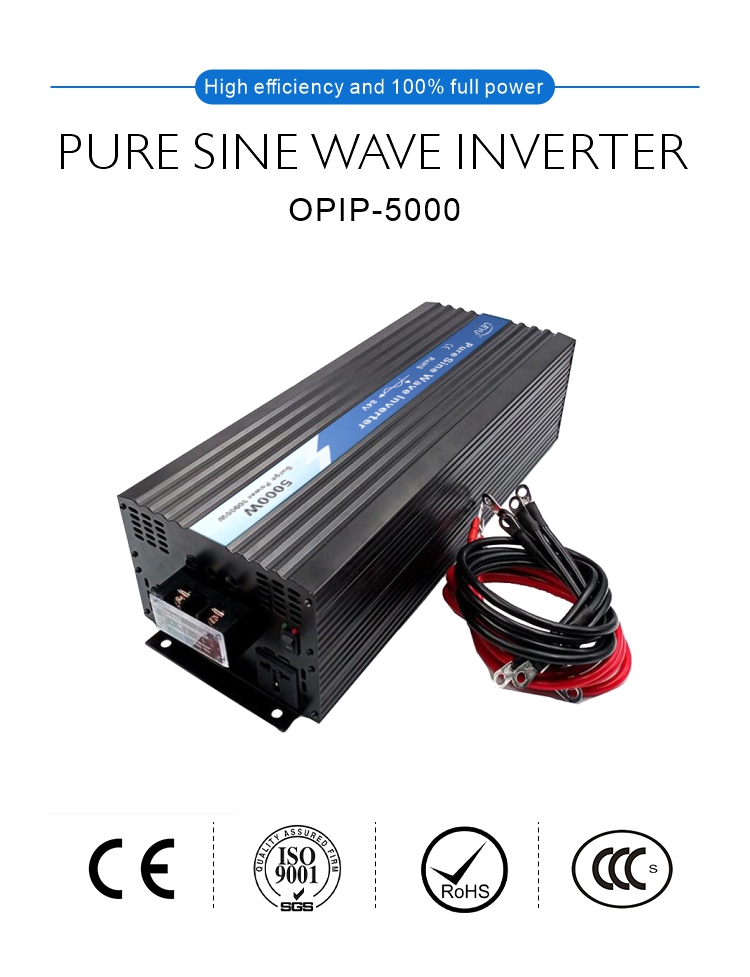

OPIP-5000W
Product Features :
High transform efficiency 、fast start；
Pure sine wave output waveform；
Softstart function；
Strong adaptability and stability ；

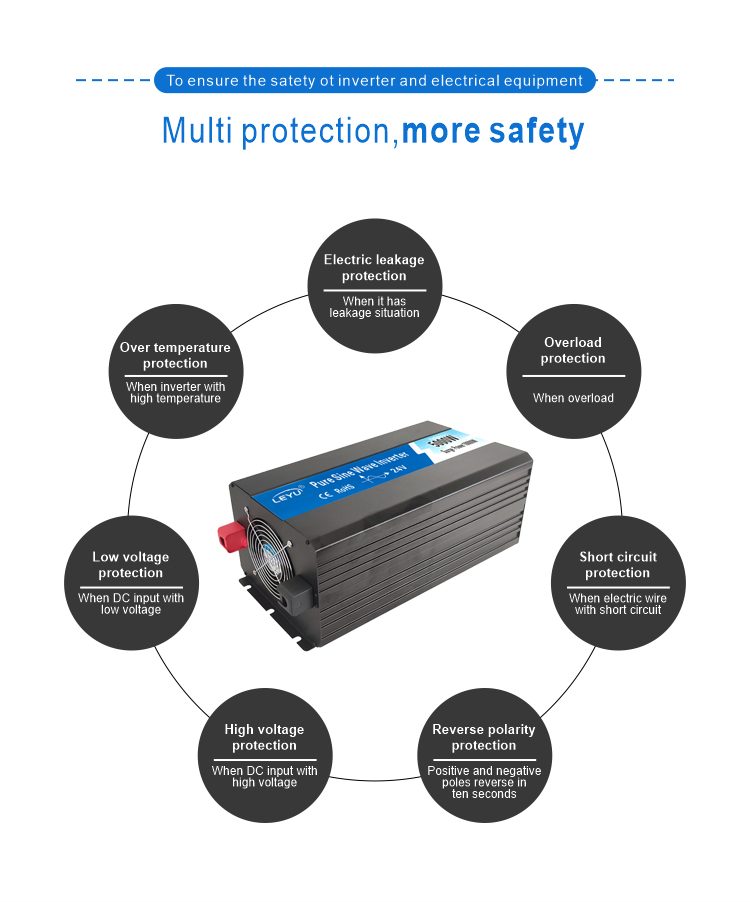

With automatic over-current and output short circuit protection to avoid damage the equipment；

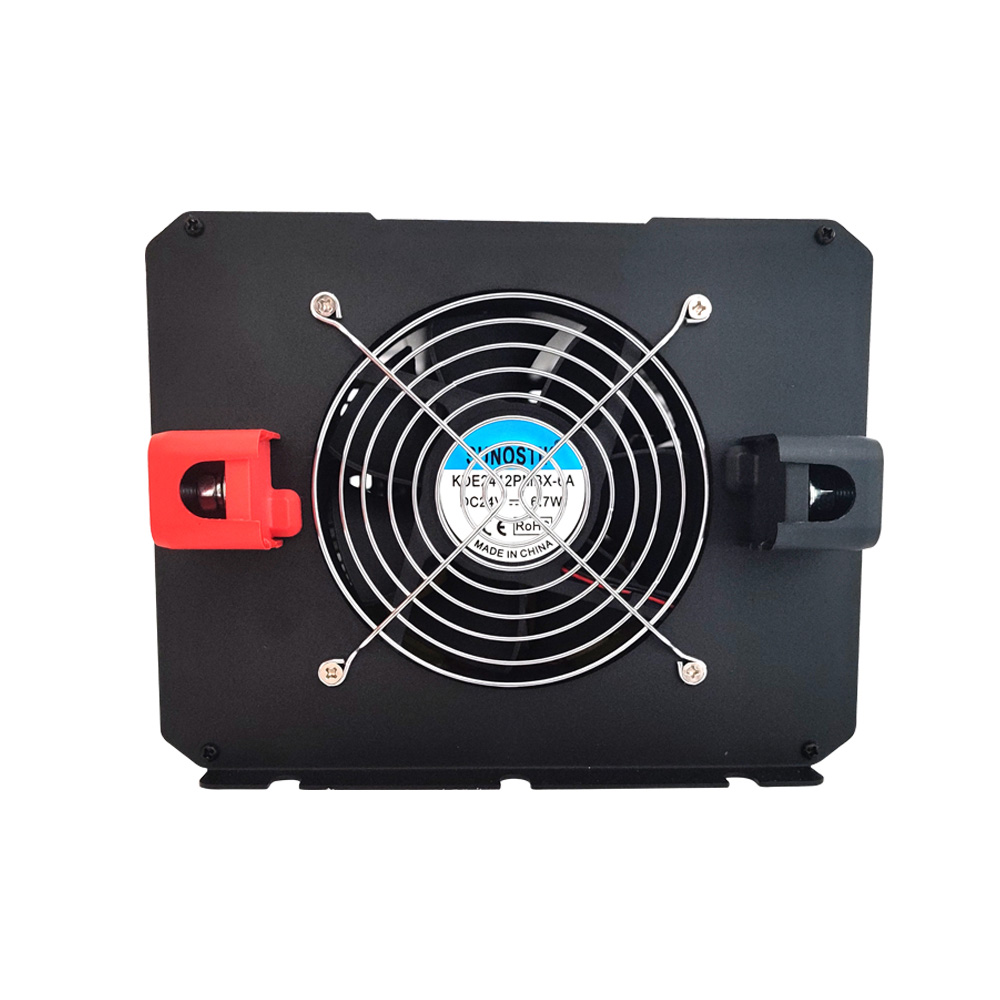

Temperature controlled fan,safe&efficient；
Safe and reliable with built in fuse.
1 year warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc； output voltage such as 120v, 130v, 200V,240v, etc；Many kinds of sockets are available).
Online Service
Product Detail
| Pure sine wave 5000W technical parameters | |||
| Machine model | OPIP-5000W-12V | OPIP-5000W-24V | OPIP-5000W-48V |
| Output power | 5000W | ||
| Peak power | 10000W | ||
| Input voltage (range) | DC12V（9.5-15.5V） | DC24V（19-31V） | DC48V（40-61V） |
| Output voltage (single choice) | （100vAC/110vAC/120vAC/220vAC/230vAC/240vAC）±5% | ||
| No load current | ≤1.5A | ≤1.2A | ≤0.8A |
| Output frequency | 50Hz or 60Hz | ||
| Output waveform | Pure sine wave | ||
| THD | THD≤3%(Pure resistive load) | ||
| USB | QC3.0 18 W | No | |
| Output efficiency | ≥85% | ||
| Under voltage protection | Send out the alarm sound first (judge that the alarm sound is one, bi-bi-bi...), The LED red light flashes, the voltage continues to decrease, and the machine is turned off. | ||
| Over voltage protection | Send out the alarm sound first (judge that the alarm sound is two, Bibi - Bibi - Bibi...) The LED red light flashes, the voltage continues to rise, and the machine is turned off. | ||
| Overload protection | Send out the alarm sound first (judge that the alarm sound is continuous alarm Bibi...), The LED red light flashes and the machine is turned off. | ||
| Over temperature protection | Send out the alarm sound first (judge that the alarm sound is three, bibibi - bibibi - bibibi...), The LED red light flashes, the temperature continues to rise, and the machine is turned off. | ||
| Short circuit protection | Send out alarm sound without damaging the circuit (judge that the alarm sound is continuous alarm, Bibi...) | ||
| Polarity protection | The fuse is blown | ||
| Under voltage alarm range | 10.5±0.5V | 21±0.5V | 42±1V |
| Under voltage protection range | 9.5±0.5V | 19±0.5V | 38±1V |
| Overvoltage protection range | 15.5±0.5V | 31±0.5V | 61±1V |
| Under voltage recovery range | 13±0.5V | 24±0.5V | 48±1V |
| Overvoltage recovery range | 14V±0.2V | 28V±0.5V | 54V±1V |
| Working temperature | -10℃ - 50℃ | ||
| Product size (mm) | 450*205*170 mm | ||
| Package size (mm) | 610*320*270 mm | ||
| Outer box size(mm) | 610*320*270 mm | ||
| Net / gross weight (kg) | 10 / 12 kg | ||
| Quantity / box | 1 pcs | ||
| Total weight (kg) | 12 kg | ||
| Warranty | 12 months | ||
| To configure | 2 pure copper connecting wires + 1 spare fuse pack | ||
| Cooling mode | Intelligent air cooling | ||
| Note: our products are constantly updated. The technical parameters are for reference only. Please refer to the actual products. | |||
