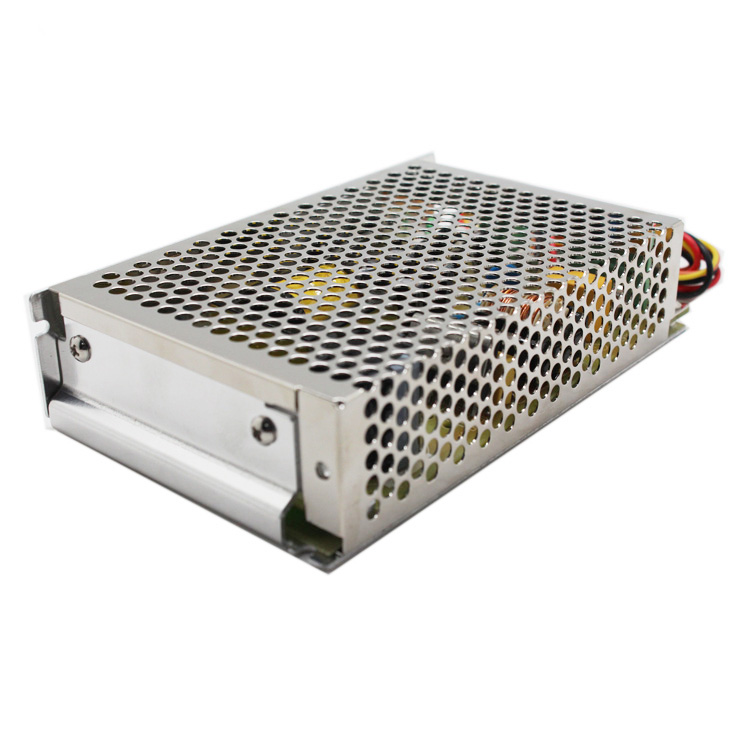

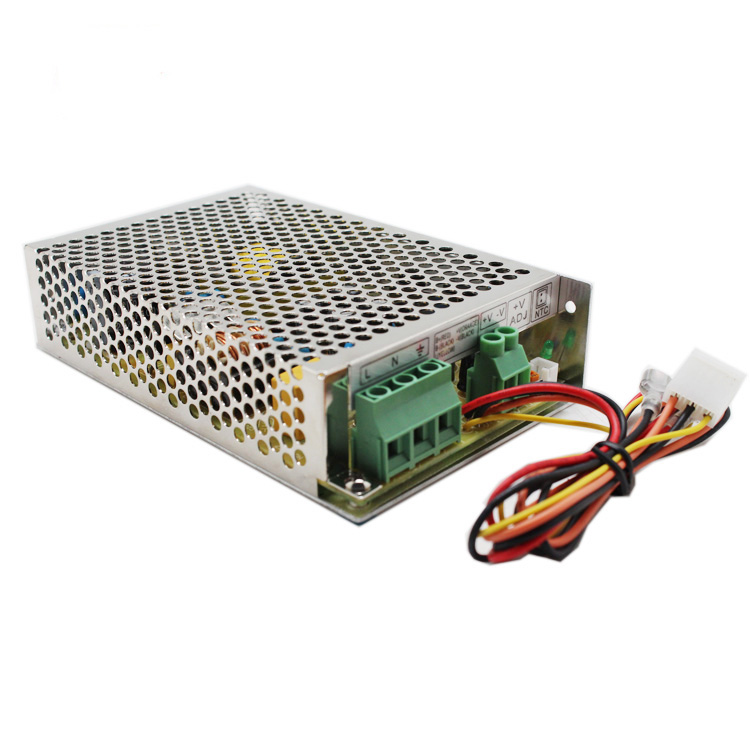

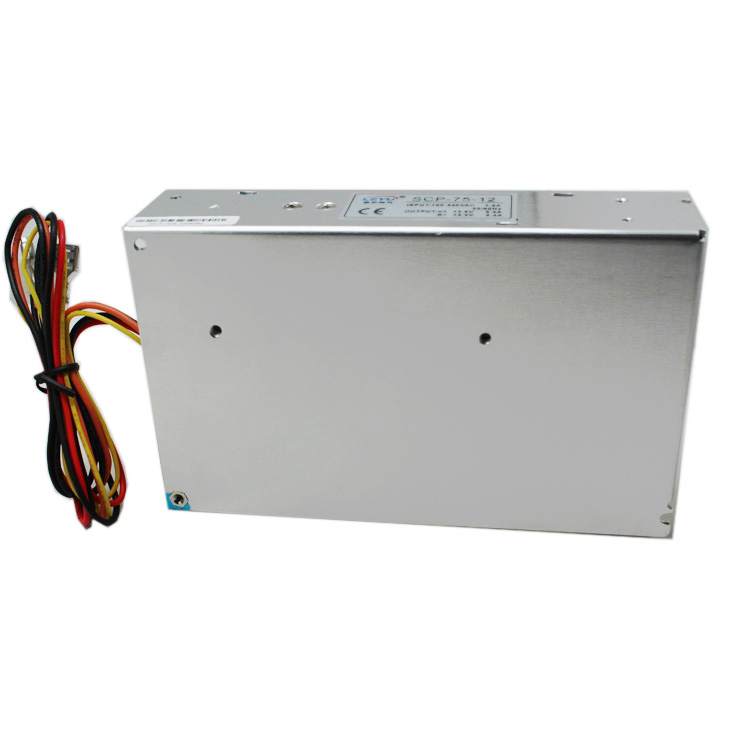

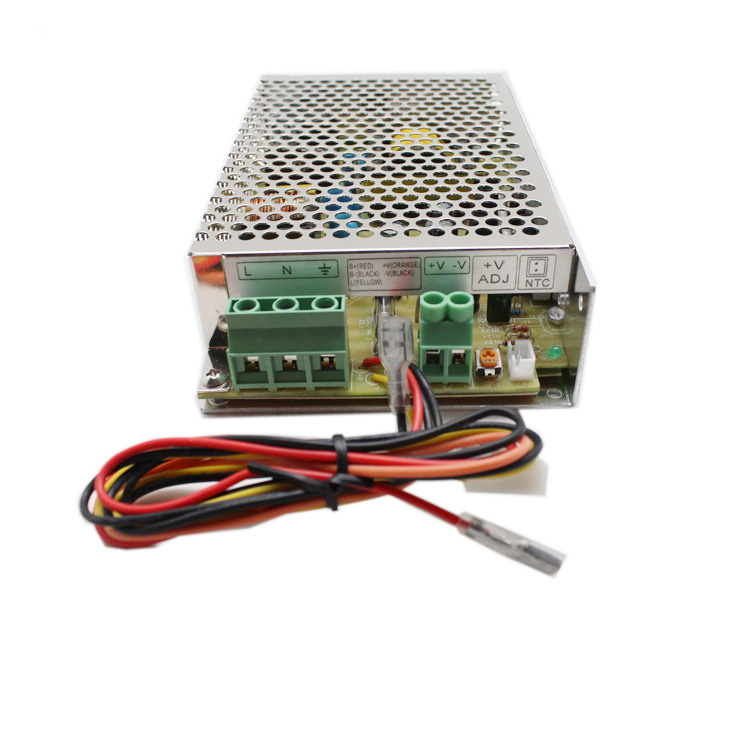

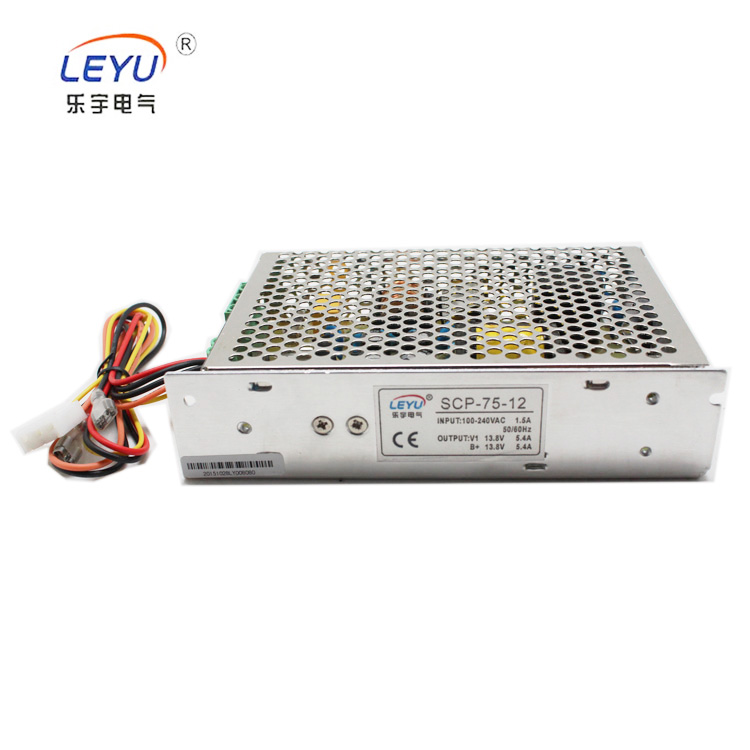

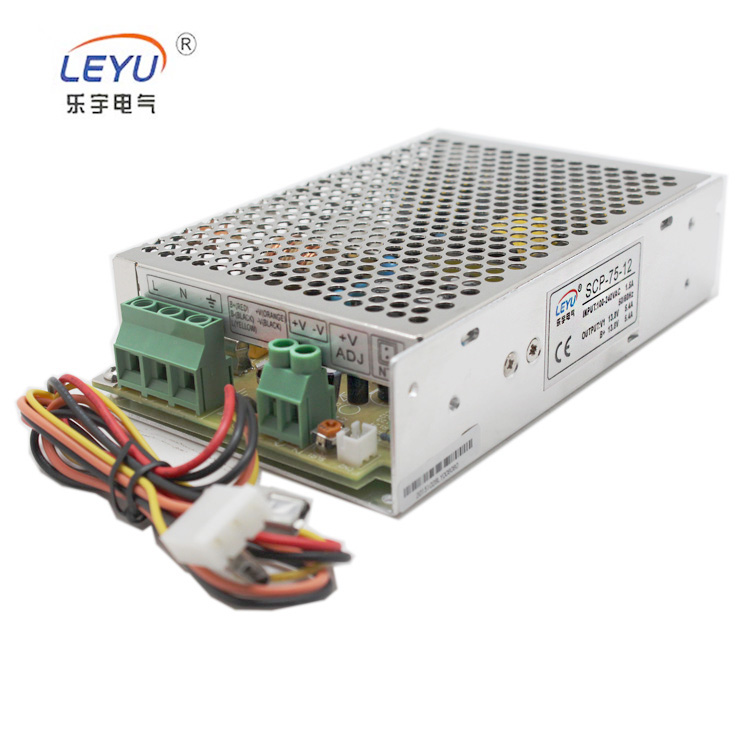

75W Single Output UPS functionPower Supply SCP-75 series
Features:
1.Universal AC input/Full rang
2.Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
3.Cooling by free air convection
4.LED indicator for power on
5.No load power consumption<1W
6.Suitable for installation in metallic or non-metallic system enclosure
7.100% full load burn-in test
8.2 years warranty
|
SPECIFICATION |
|||
|
OUTPUT |
|
||
|
Model |
SCP-75-12 |
SCP-75-24 |
|
|
DC Voltage |
13.8V |
27.6V |
|
|
Rated Current |
5.4A |
2.7A |
|
|
Current Range |
0-5.4A |
0-2.7A |
|
|
Rated Power |
74.5W |
74.5W |
|
|
Ripple & Noise |
120mVp-p |
200mVp-p |
|
|
Voltage Adj. Range |
+15,-5% |
+15,-5% |
|
|
Voltage Tolerance |
±2% |
±1% |
|
|
Inlet Stability |
±1% |
±1% |
|
|
Load Stability |
±2% |
±1% |
|
|
Setup,Rise,Hold Up Time |
500ms,30ms/230VAC 1200ms,30ms/115VAC at full load |
||
|
|
|
||
|
INPUT |
|
||
|
Voltage Range |
85~264VAC 120-370VDC |
||
|
Frequency Range |
47-63Hz |
||
|
AC Current |
0.7A/115V 0.5A/230VAC |
||
|
Efficiency |
80% |
84% |
|
|
Inrush Current |
Cold-start 45A |
||
|
Leakage Current |
<2mA/240VAC |
||
|
|
|
||
|
PROTECTION |
|
||
|
Over Load |
6.5A~8.7A rated output power |
3.2A~4.3A rated output power |
|
|
Protection type: hiccup mode,recovers automatically after fault condition is removed |
|||
|
Over Voltage |
16.6~19.3V |
33.1~38.5V |
|
|
Protection type: shut down o/p voltage, re-power on to recover |
|||
|
|
|
||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-20℃~+60℃(Refer to output derating curve),20%~90%RH |
||
|
Storage Temp., Humidity |
-40℃~+85℃, 10%~95%RH |
||
|
Temp. Coefficient |
±0.05%/℃(0~45℃) |
||
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes |
||
|
|
|
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 3KVACI/P-FG: 2KVACO/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
||
|
|
|
||
|
STANDARD |
|
||
|
Safety Standard |
UL60950-1,CCC,CE |
||
|
EMC Standard |
Design refer to EN55022(CLSPR22),EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024 |
||
|
|
|
||
|
OTHERS |
|
||
|
Dimension |
159*97*38mm(L*W*H) |
||
|
Weight |
0.5Kg/pc 30pcs/carton |
||
